Stihl MS 230 Service Manual

67MS 210, MS 230, MS 250

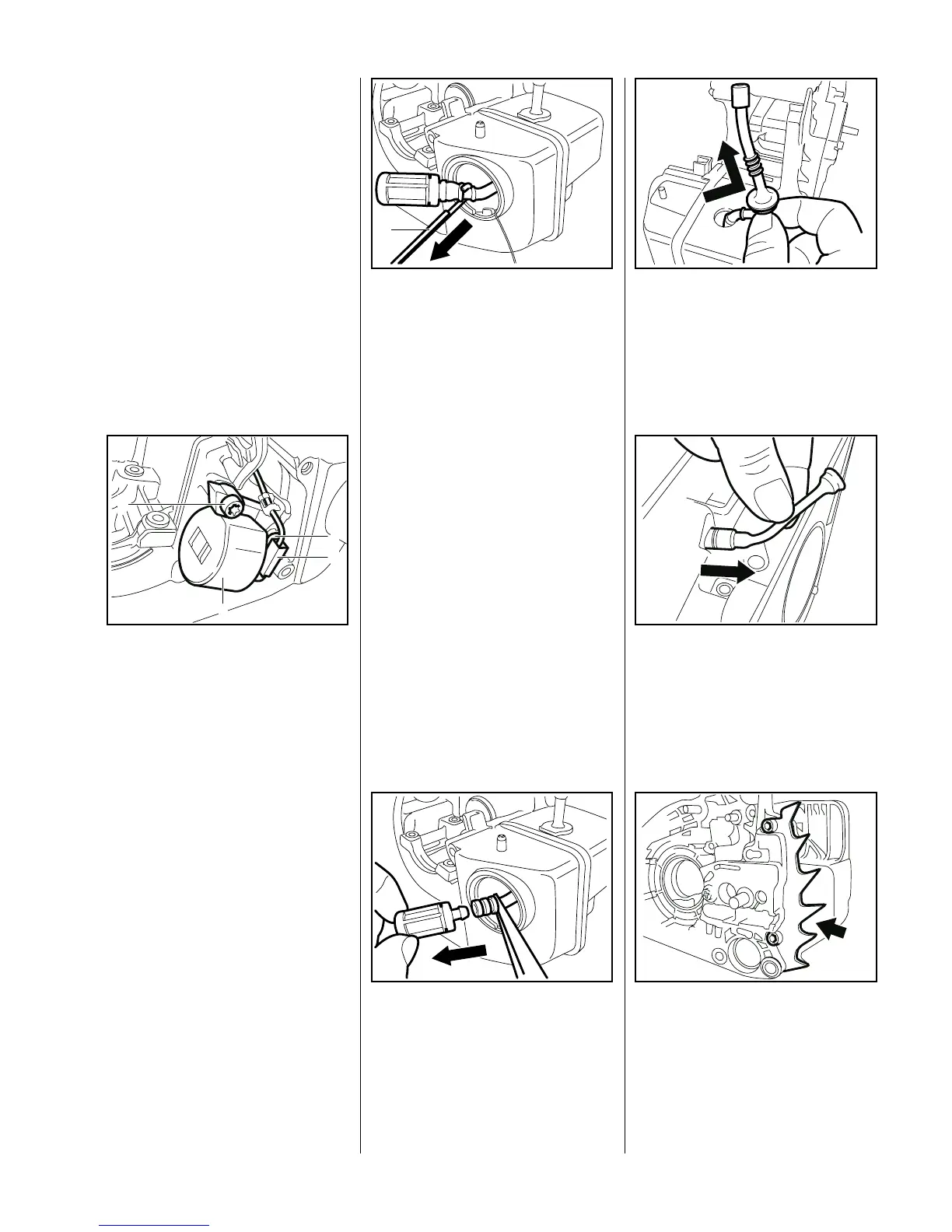

Fuel tank and engine housing are a
single unit.
– Remove the engine – b 8.
– Remove the chain tensioner –
b 8.
– Remove the chain brake –
b 8.
: Disconnect the short circuit
wire (1).
: Take out the screws (2).
: Remove the ignition module (3).
VA
135RA225
2
1
3
2
: Unscrew the fuel filler cap and
remove with cap retainer, if fitted.
: Use hook (1) 5910 893 8800 to
pull pickup body out of the fuel
tank.
Do not stretch the suction hose.
VA
208RA105
1
: Pull the pickup body off the hose.
VA
208RA106
– Pry the suction hose flange out of
the fuel tank.
: Pull out the suction hose.
VA
208RA107
: Pull out the oil pump suction hose
with pickup body.
VA
135RA230
: Remove the spiked bumper, if
fitted.
VA
135RA233
11.8 Fuel Tank

Stihl MS 230 Specifications

General

Engine Power	2.0 kW
Displacement	40.2 cc
Weight	4.6 kg
Power Output	2.0 kW
Chain Pitch	3/8"
Powerhead Weight	4.6 kg
Bar Length	40 cm
Oil Capacity	200 cc
Bar Lengths Available	35 cm (14") / 40 cm (16")
