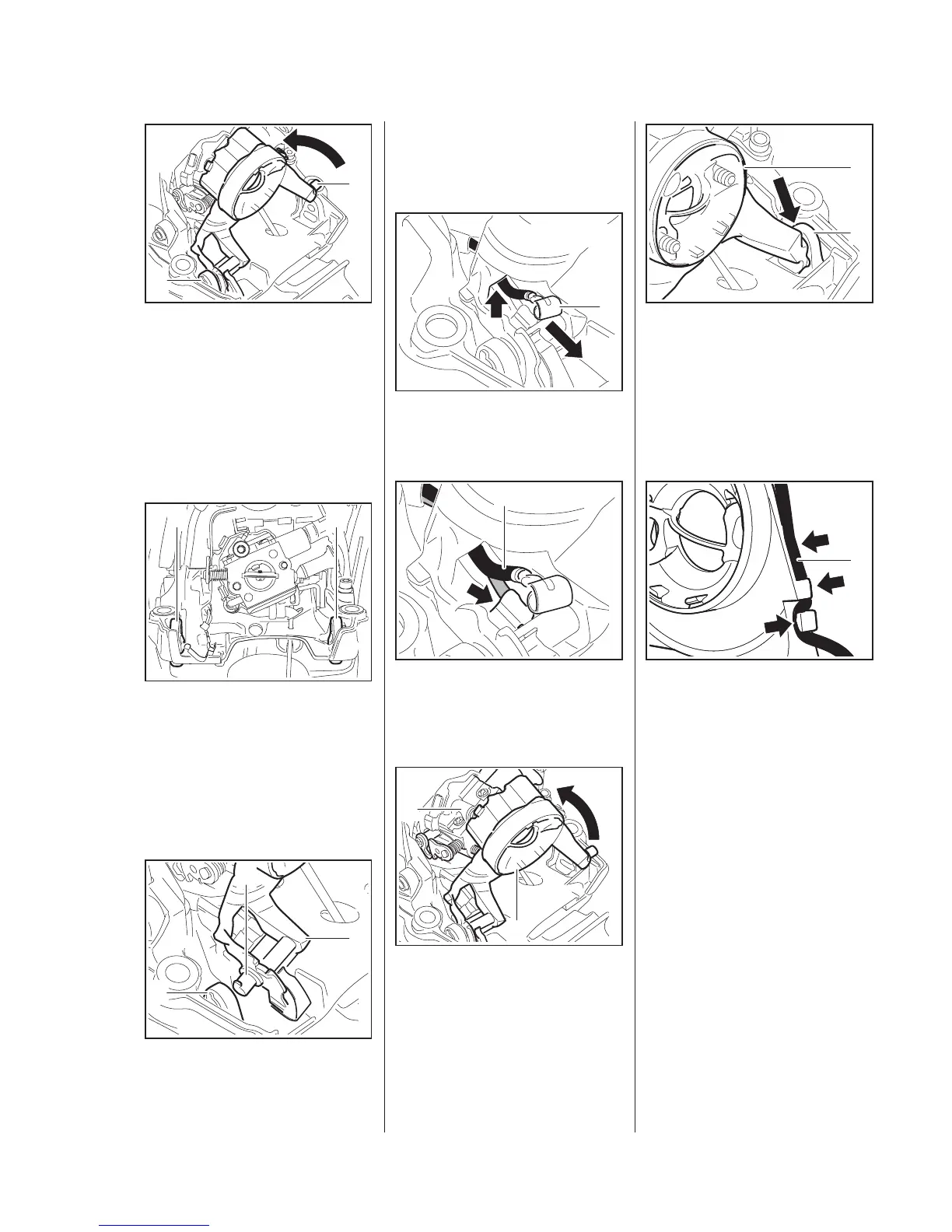

: Turn the filter base (1) in direction
of ignition side.
: Disengage the filter base (1) from
the buffer (2).
– Remove the contact spring,
b
7.7.4
– Check the buffers (1) and replace
if necessary,
b
9.5.2
Installing
– Fit the contact spring,
b
7.7.4
– Use STIHL press fluid to simplify
assembly,
b
15
5902RA455 TG
2
1
5902RA456 TG
11
5902RA457 TG
2
1
3
: Engage the filter base (1) in the
buffer (2) – make sure the peg (3)
is properly seated in the buffer.
: Push the short short circuit (1)
through the opening (arrow).
: Position the short circuit wire (1)
so that it is above the ground
wire's flag terminal (arrow).
: Push the filter (1) onto the studs
and the carburetor (2).
5902RA196 TG
1
5902RA305 TG
1
5902RA458 TG
1
2
– Use STIHL press fluid to simplify
assembly, b
b
15
: Engage the filter base (1) in the
buffer (2).
Models with heating
: Fit the wire (1) in the
guide (arrows).
– Reassemble all other parts in the
reverse sequence.
5902RA349 TG
1
2
5902RA453 TG
1
