10.3.4 Throttle Rod

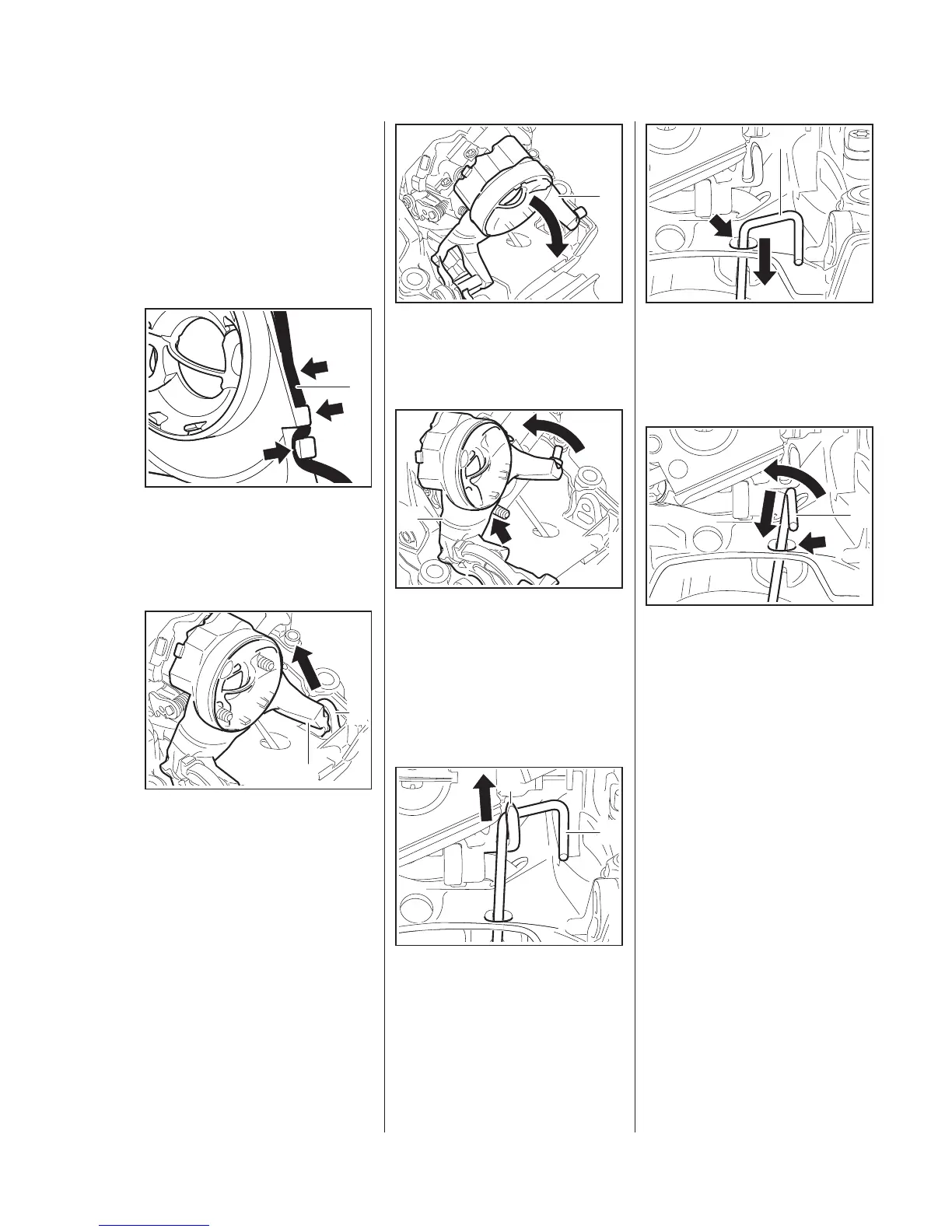

– Remove the throttle trigger,
b
10.2
– Remove the baffle,
b
12.3
Models with heating
: Pull the wire (1) out of the
guide (arrows).
All models
: Pry the filter base (1) out of the
buffer (2).
5902RA453 TG
1
5902RA340 TG
2
1
: Swing the filter base (1) in
direction of throttle trigger until it
is clear of the studs.
– Swing the filter base (1) in
direction of throttle trigger until it
is clear of the studs.
: Swing the filter base (1) in
direction of ignition side and rest
it against the stud (arrow).
: Pry the throttle rod (1) out of the
carburetor carrier (2).
5902RA454 TG
1
5902RA341 TG
1
5902RA342 TG
1
2
: Pull the throttle rod in the
direction of the rear handle until
its bent end (1) is at the
opening (arrow).
: Rotate the throttle rod (1) about
90° counterclockwise. Pass the
throttle rod (1) through the
opening (arrow) in the direction
of the tank housing and remove
it.
– Check the throttle rod and
replace if necessary
5902RA343 TG
1
5902RA344 TG
1
