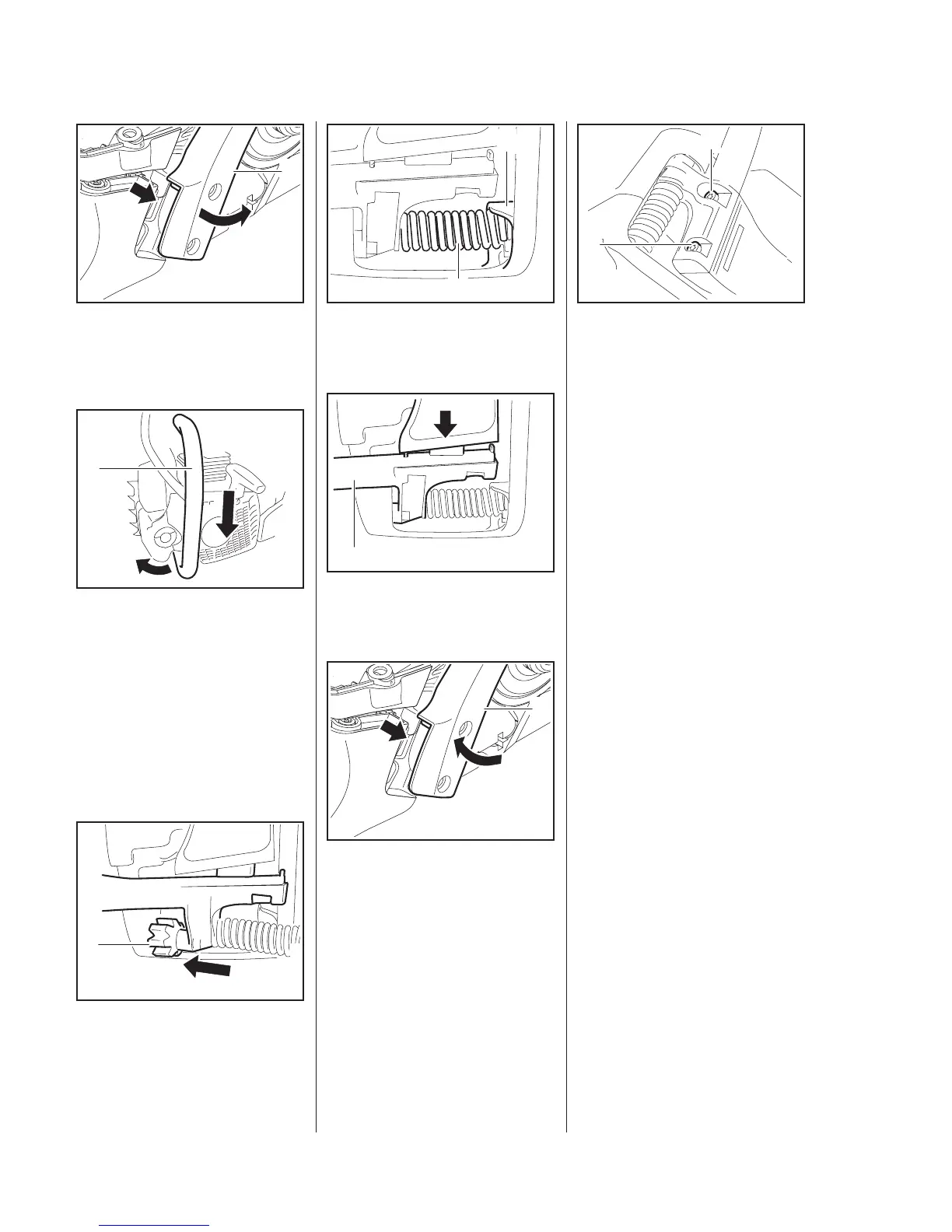

82 MS 261, MS 261 C
: Ease the handlebar (1) sideways
and take it out of the guide
(arrow).
: Push the handlebar (1) out of the
lower guide.
Remove the handlebar (1), check
it and replace if necessary.
Check the annular buffer and
replace it if necessary,
b
9.1
Installing
: Push the handlebar, buffer (1)
first, into the crankcase.
5902RA271 TG
1
0001RA232 TG
1
5902RA606 TG
1
: Push the AV spring (1) into its
seat (2).
: Position the handlebar (1)
against the guide (arrow).
: Ease the handlebar (1) sideways
and place it in the guide (arrow).
Insert the screws and tighten
them down firmly.
0001RA222 TG
2
1
0001RA222 TG
1
5902RA272 TG
1
: Insert and tighten down the
screws (1) firmly.
Reassemble all other parts in the
reverse sequence.
9.6.1 Handlebar with Heating
The handlebar on this version is
equipped with a heating system –
the electrical wires have to be
disconnected.
Troubleshooting, b
b
13.7.1
Remove the shroud,
b
6.4
Remove the fan housing,
b
8.2
Remove AV spring from
handlebar,
b
9.4.1
Remove the carburetor carrier,
b
12.8
Remove the ignition module,
b
7.3
Remove the lockout lever,
b
10.2
Remove the throttle rod,
b
10.3.4
Remove the air guide shrouds,
b
12.4
5902RA258 TG
1
1
