Stihl MS 261 User Manual

145MS 261, MS 261 C

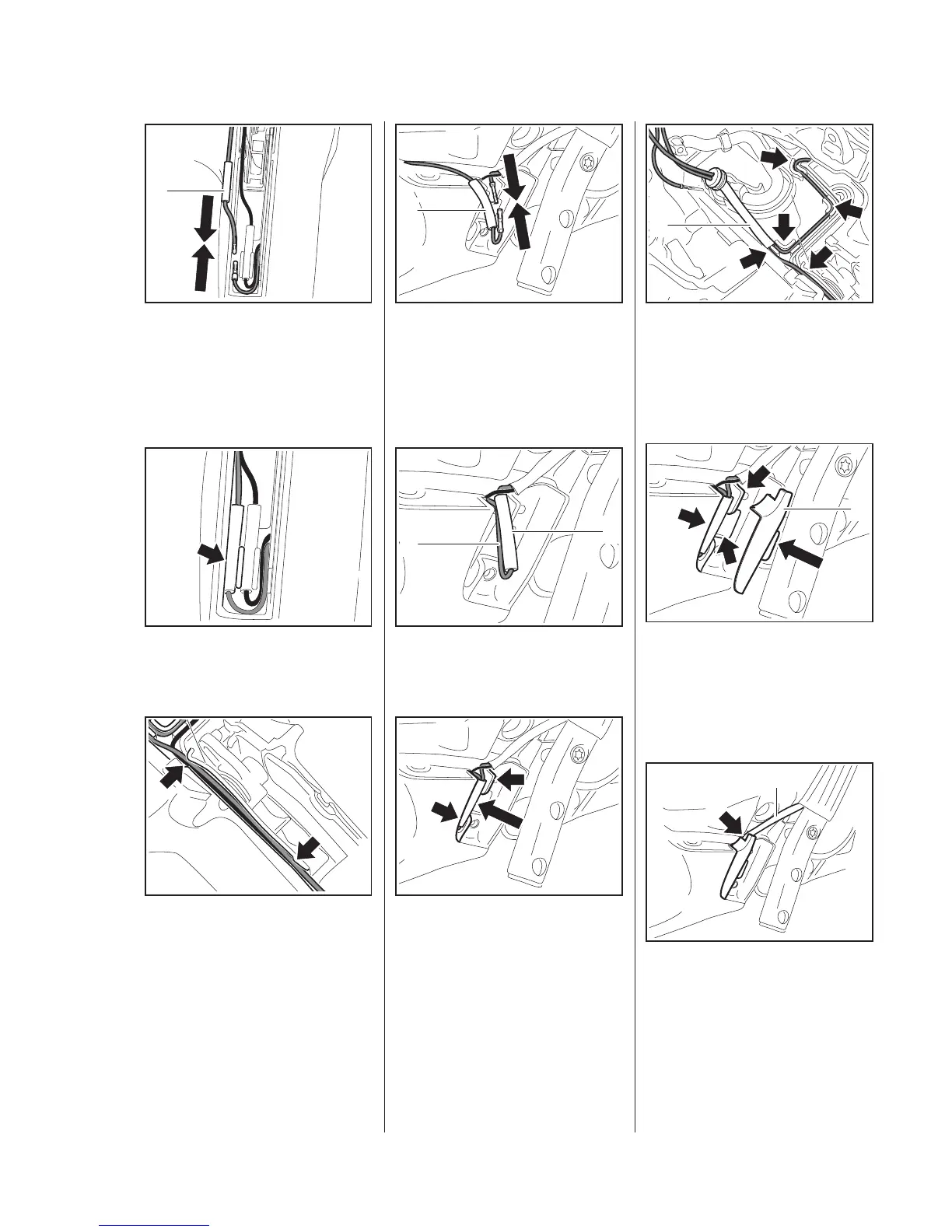

: Push the pin and socket together
until they lock.
: Push the insulating tube (1) over
the connector.
: The insulating tube must be
seated in the guide (arrow).
: Push the wire fully into the
guide (arrows).
5902RA559 TG
1
5902RA560 TG
5902RA561 TG
: Push the pin and socket together
until they lock.
: Push the insulating tube (1) over
the connector.
: Position the wire (1) so that it is
behind the insulating tube (2).
: Press the insulating tube into the
guide (arrows).
5902RA562 TG
1
5902RA583 TG
2
1
5902RA563 TG
: Push the wiring harness (1) into
the guides (arrows).
Make sure the wires are laid neatly
and straight (no loops).
: Push the cover (1) into its
seat (arrows).
Make sure that the wires are not
pinched.
The wires with protective tube (1)
must be properly seated (arrow).
5902RA589 TG
1
5902RA564 TG
1
5902RA601 TG
1

Stihl MS 261 Specifications

General

Motor type	2-stroke motor
Chain gauge	1.6 mm
Chain pitch	3/8 \
Blade length	400 mm
Automatic oiling	Yes
Oil tank capacity	0.27 L
Fuel tank capacity	0.5 L
Engine displacement	50.2 cm³
Engine power	3.8 hp
Power source	Gasoline

Weight and Dimensions

Weight	5200 g
