24 MS 261, MS 261 C

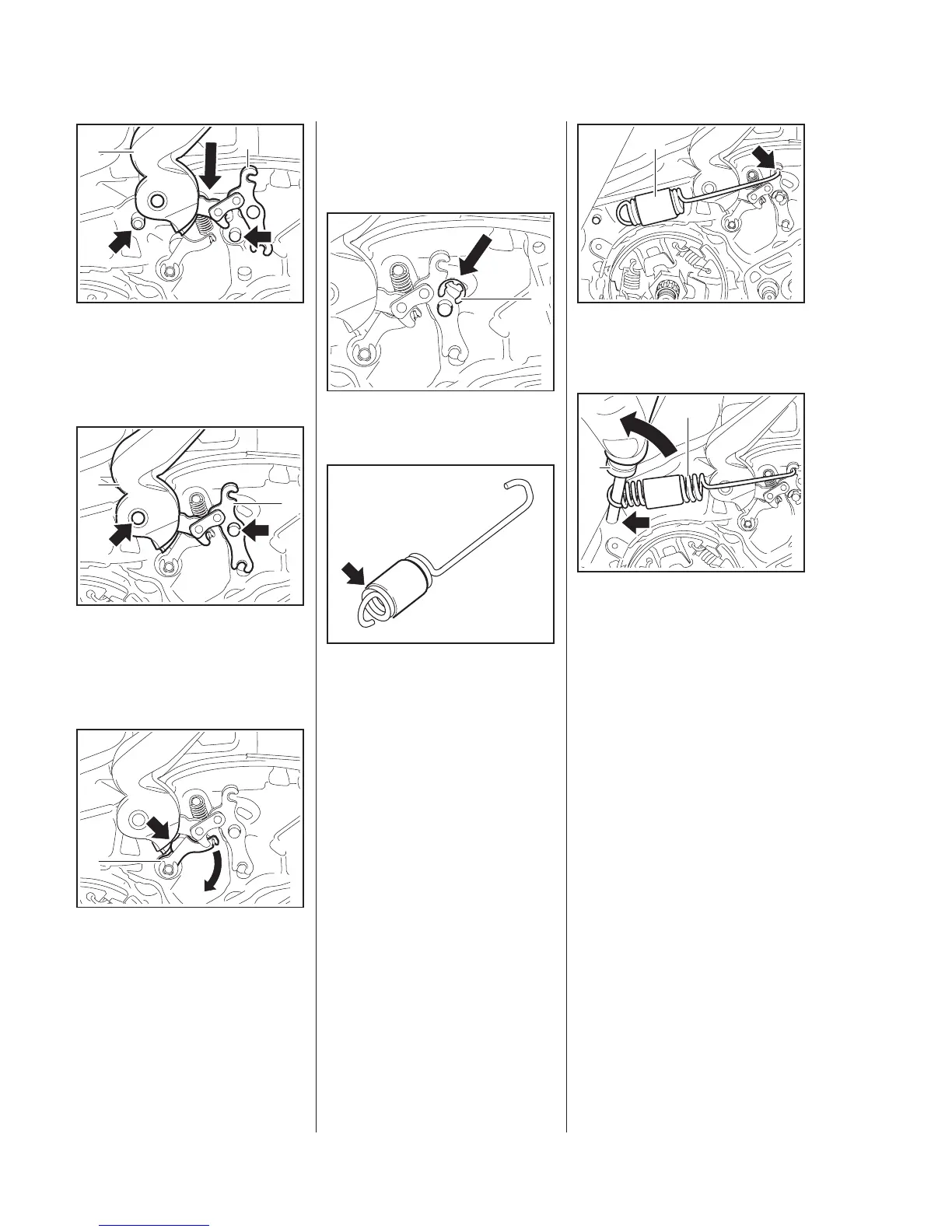

: Push the hand guard (1) with
brake lever (2) over the machine
until they are positioned against
the pivot pins (arrows).
: Lift the bearing boss of the hand
guard (1) and the brake lever (2)
a little and position them over the
pivot pins (arrows).
: Turn the cam lever (1) to one side
until the cam of the hand
guard (arrow) slips passed it.
5902RA036 TG
1
2
5902RA037 TG
1
2
5902RA038TG
1
– Push the hand guard bearing
boss and the brake lever on to
the pivot pins.
: Fit the E-clip (1).
The turns of brake spring must be
tightly against one another in the
relaxed condition. If this is not the
case, replace the brake spring.
– Position the protective tube so
that it leaves the first turn (arrow)
free.
– If the groove in the spring's
anchor pin is worn, install a new
pin, b
b
5.6
5902RA039 TG
1
5902RA040 TG
: Attach the brake spring (1) to the
brake lever (arrow).
: Use the assembly tool (2)
1117 890 0900 to attach the
brake spring (1) to the anchor
pin (arrow).
– Lubricate the brake lever, cam
lever and slot in hand guard,
b
b
15
– Reassemble all other parts in the
reverse sequence.
5902RA041 TG
1
5902RA042 TG
2
1

Stihl MS 261 Specifications

General

Motor type	2-stroke motor
Chain gauge	1.6 mm
Chain pitch	3/8 \
Blade length	400 mm
Automatic oiling	Yes
Oil tank capacity	0.27 L
Fuel tank capacity	0.5 L
Engine displacement	50.2 cm³
Engine power	3.8 hp
Power source	Gasoline

Weight and Dimensions

Weight	5200 g
