Stihl MS 261 User Manual

72 MS 261, MS 261 C
Models with ElastoStart grip
: Use a suitable tool to pry the
cap (1) out of the starter grip.
: Pull the sleeve, washers, spring
and remaining rope (arrow) out of
the grip.
– Check the individual parts and
replace if necessary.
Do not shorten the starter rope.

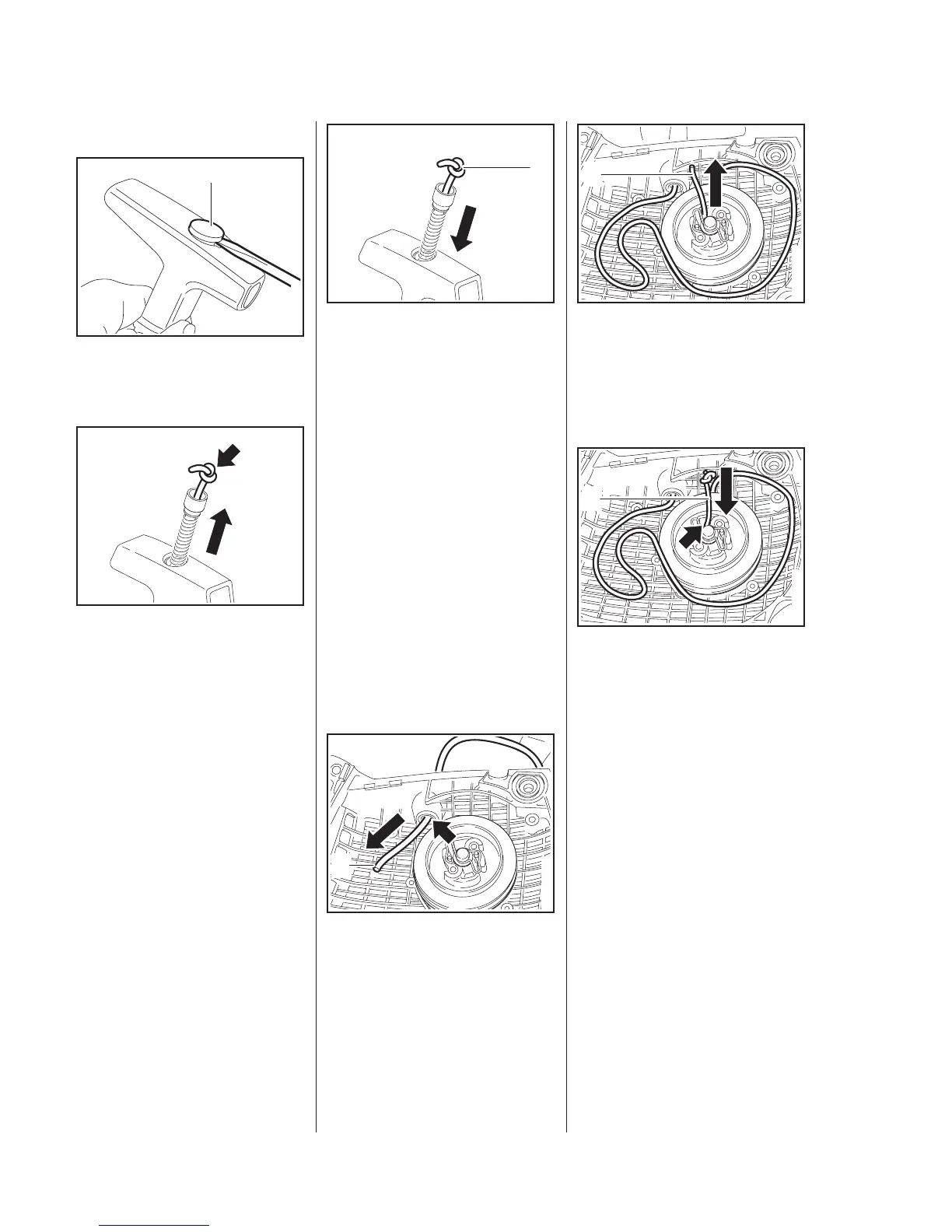

165RA230 TG
1
165RA231 TG
– Thread the new starter rope
through the sleeve.
– Tie a simple overhand knot in the
end of the new rope.
– Fit the washers and spring.
: Pull the starter rope with sleeve,
spring and washers into the
starter grip (1).
Make sure the washers and spring
remain on the sleeve while the rope
its being pulled into the grip.
– Position cap so that its lug
engages the slot in the starter
grip.
– Press the cap into the starter grip.
: Thread the starter rope (1)
through the guide
bushing (arrow).
165RA233 TG
1
5902RA212 TG
1
: Thread the starter rope (1)
through the side of the rope rotor.
– Secure the rope (1) with a simple
overhand knot.
: Pull the rope (1) back into the
rotor until the knot locates in the
recess (arrow).
– Tension the rewind spring, b
b
8.7
– Install the segment and fan
housing,
b
8.2
5902RA213 TG
1
5902RA214 TG
1
