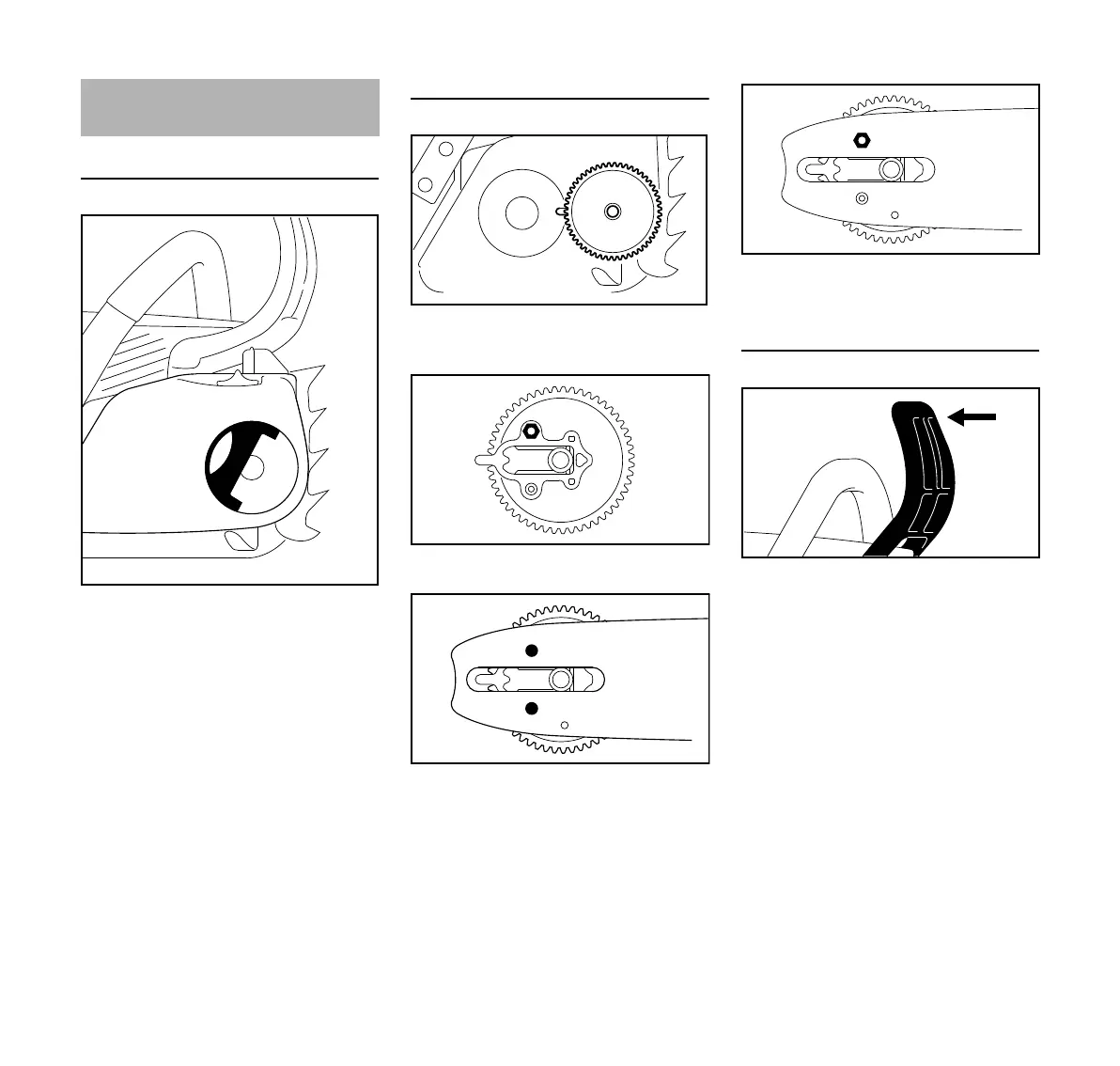

Remove the chain sprocket cover.
N Pull out the hinged clip (1) so that it
snaps into position.
N Turn the wingnut (2)
counterclockwise until it hangs
loose
N in the sprocket cover (3).
N Removing the sprocket cover
Fitting the tensioning gear
N Remove the tensioning gear (1) and
turn it over.
N Unscrew the nut (2).
N Position the tensioning gear (1)
against the guide bar (3) so that the
stud (4) projects through the upper
hole and the short guide peg (5)
locates in the lower hole.
N Screw the nut (2) on to the stud as
far as stop by hand.
Releasing the chain brake
N Pull the hand guarad towards the
front handle until there is an audible
click – the chain brake is
disengaged.
