Stihl MS 500i W Service Manual

MS 500i6
6.1 Tools, Servicing Aids
– Combination wrench – 1129 890 3401
– Torque wrench – 5910 890 0312 or equivalent
– Stud puller, M8-7.5 – 5910 890 3000
– Stud puller, M8 – 5910 893 0501
– Loctite 270 (high-strength threadlocking adhesive) –
0786 111 2109
6.2 Removing the Bar Mounting Studs
N Preparations, @ 3.1.
N Remove the chain sprocket cover.
N Use stud puller 5910 893 0501 to remove the collar
stud (1).
6.3 Installing the Bar Mounting Studs
N Coat threads of collar studs (1) with Loctite 270.
N Use stud puller 5910 890 3000 to fit and tighten down
the collar studs (1).
N Fit the chain sprocket cover.

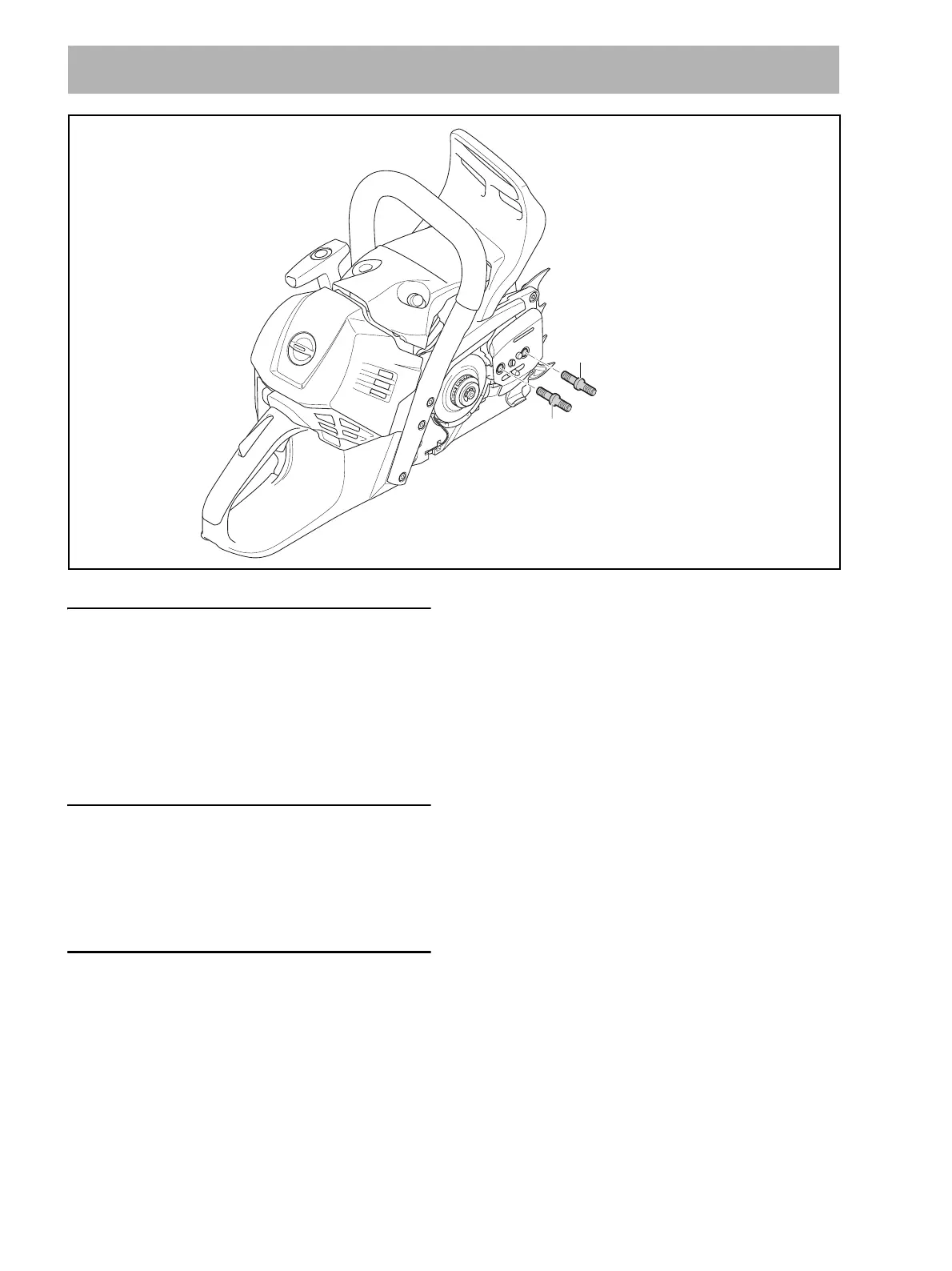

6 Bar Mounting Studs
1 M8 (23 Nm / 204 lbf. in.)
1 M8 (23 Nm / 204 lbf. in.)
0000-GXX-5567-A0
