MS 500i 7
7.1 Tools, Servicing Aids
– Screwdriver, 1.0x5.5x125

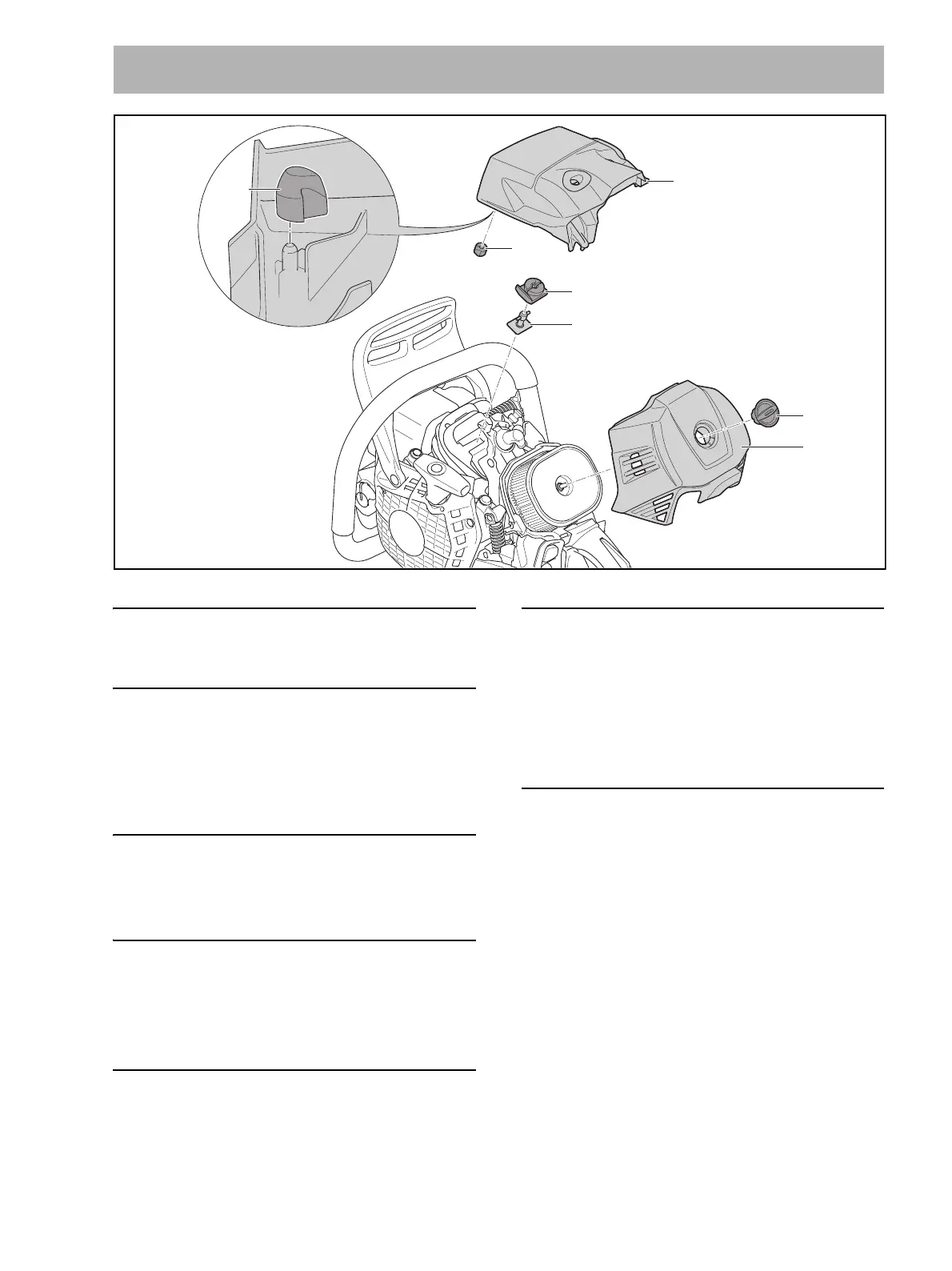

7.2 Removing the Twist Lock
N Preparations, @ 3.1.
N Remove the filter cover (2).
N Unlock the retaining tabs on the twist lock (1) and pull
the twist lock out of the filter cover (2).
7.3 Installing the Twist Lock
N Push the twist lock (1) in the filter cover (2).
N Fit the filter cover (2).
7.4 Removing the Stop Buffer
N Preparations, @ 3.1.
N Remove the shroud (3).
N Pull off the stop buffer (4).
7.5 Installing the Stop Buffer
N Push stop buffer (4) onto peg in shroud as far as the
stop.
N Mount the shroud (3).
7.6 Removing the Shroud Lock
N Preparations, @ 3.1.
N Remove the filter cover (2).
N Remove the shroud (3).
N Remove grommet (5) with shroud lock (6) sideways.
N Push the shroud lock (6) out of the grommet (5).
7.7 Installing the Shroud Lock
N Push the shroud lock (6) into the grommet (5) so that
its base is properly seated in the grommet (5).
N Push grommet (5) with shroud lock (6) into the guide
in the cylinder as far as stop.
N Mount the shroud (3).
N Fit the filter cover (2), .
7 Filter Cover, Shroud
