Varying cutting lengths, types of wood
and work techniques require varying
amounts of oil.

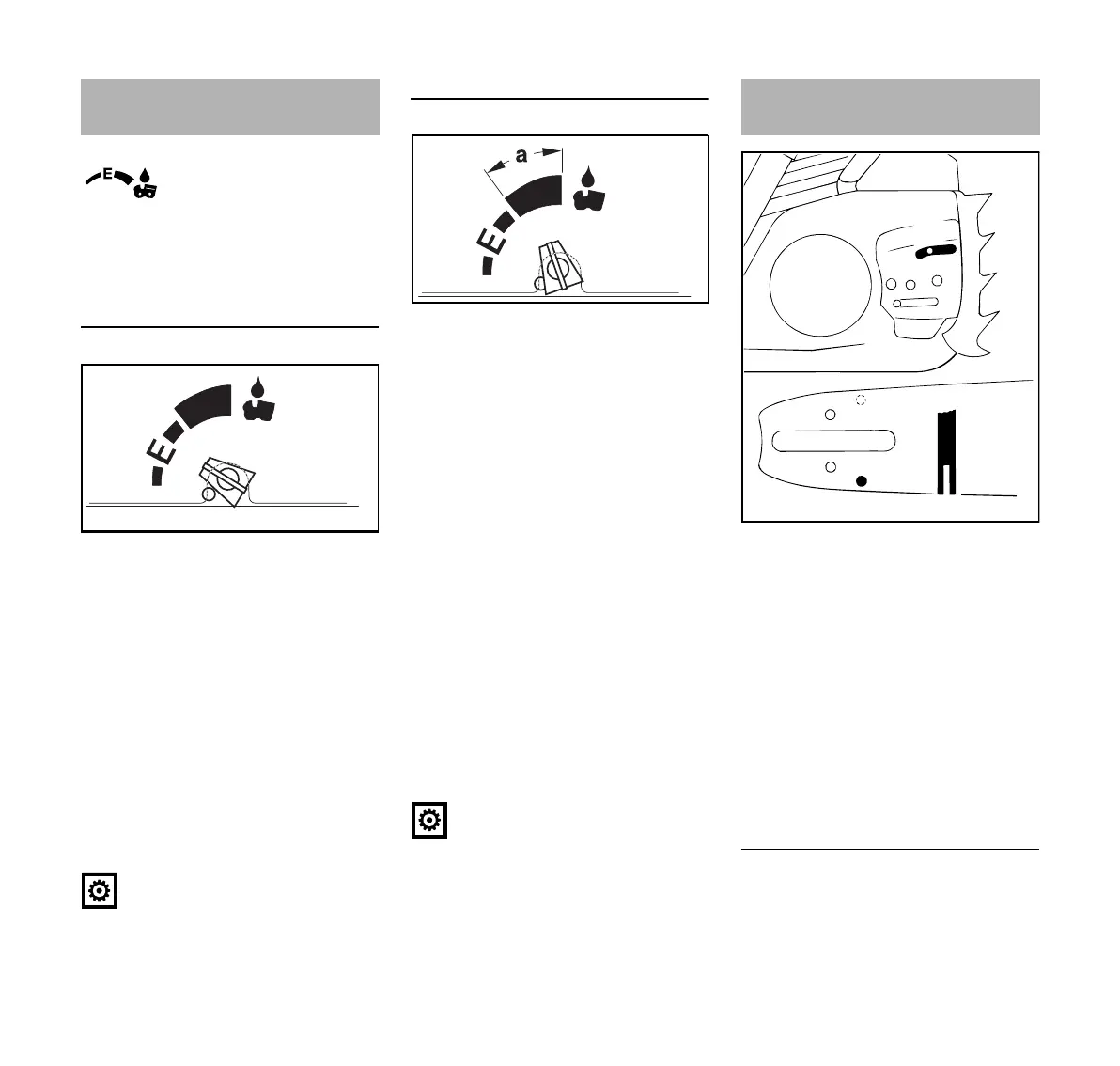

Standard setting
The oil flow can be adjusted as needed
using the adjusting screw (1) (on the
bottom of the machine).
Ematic position (E), medium oil flow –
N Turn adjusting screw to "E" (Ematic
position)
To increase oil flow –
N Turn the adjusting screw clockwise
– adjusting screw is limited by end
stop (2)
To reduce oil flow –
N turn the adjusting screw
counterclockwise
NOTICE
The saw chain must always be coated
with oil.
Setting for increased oil delivery rate
If necessary, the oil flow can be
increased beyond the standard setting.
N Press in end stop (2) using a
suitable tool – end stop is no longer
functional, the oil flow can be
increased further
If the end stop has been pressed in, it
remains in this position.
To increase oil flow –
N turn the adjusting screw clockwise
To reduce oil flow –
N turn the adjusting screw
counterclockwise
In adjustment range a, the oil tank may
run dry before the fuel tank, thus
resulting in the saw chain running dry.
N In adjustment range a, fill the fuel
tank only half full or refill the oil tank
when the fuel tank is approximately
half empty
NOTICE
If an increased oil flow is no longer
required, reset the adjusting screw to the
standard setting.
N Flip the bar – after each sharpening
and each time the chain is changed
– to avoid uneven wear, especially
at the sprocket nose and on the
bottom
N Periodically clean the oil inlet
hole (1), oil outlet channel (2) and
bar groove (3)
N Measure groove depth – using the
measuring tool on the file gauge
(special accessory) – in the area
with the greatest wear
Oil Quantity Control
Taking Care of the Guide Bar
Chain type Chain pitch Minimum
groove depth
Picco 1/4“ P 4.0 mm
Rapid 1/4“ 4.0 mm
