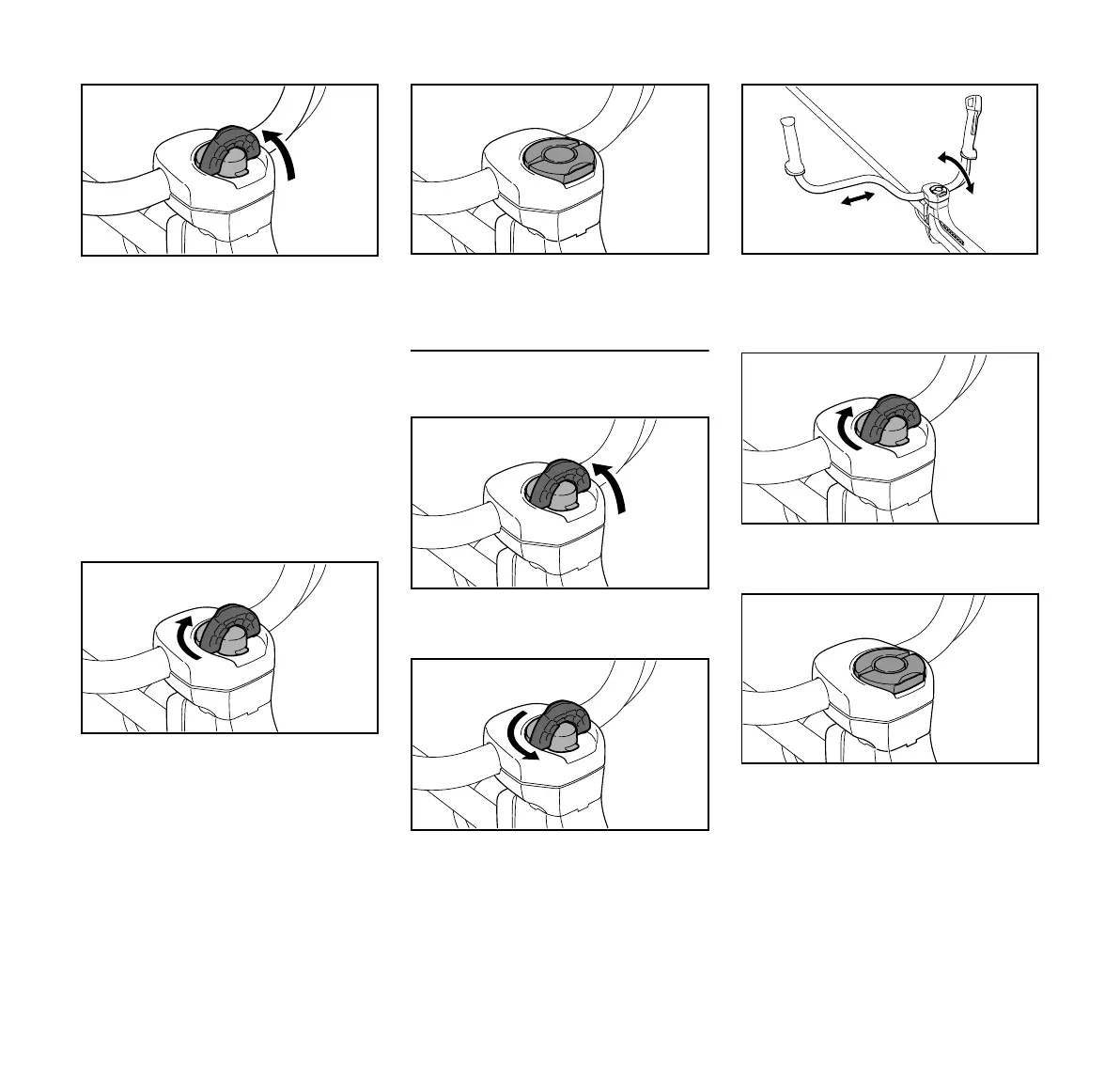

N Raise the grip of the wing screw (7)
to the upright position.
N Turn the wing screw
counterclockwise as far as stop.
N Push the wing screw into the handle
support as far as stop and then
screw it down – but do not finally
tighten yet.
N Adjust the handlebar (2) so that
distance A is no more than 15 cm.
N Line up the handlebar at a right
angle to the drive tube.
N Turn the wing screw clockwise as
far as stop.
N Fold the grip of the wing screw down
so that it is flush.
Adjusting the handlebar
Opening the wing screw
N Raise the grip of the wing screw to
the upright position.
N Turn the wing screw
counterclockwise until the handle
support can be moved.
N Move the handlebar to the required
position.
Closing the wing screw
N Turn the wing screw clockwise as
far as stop.
N Fold the grip of the wing screw down
so that it is flush.
6BA003 KN
2
7
6BA005 KN
6BA006 KN
6BA023 KN6BA004 KN
6BA007 KN
6BA005 KN
6BA006 KN
