RB 800
English
12

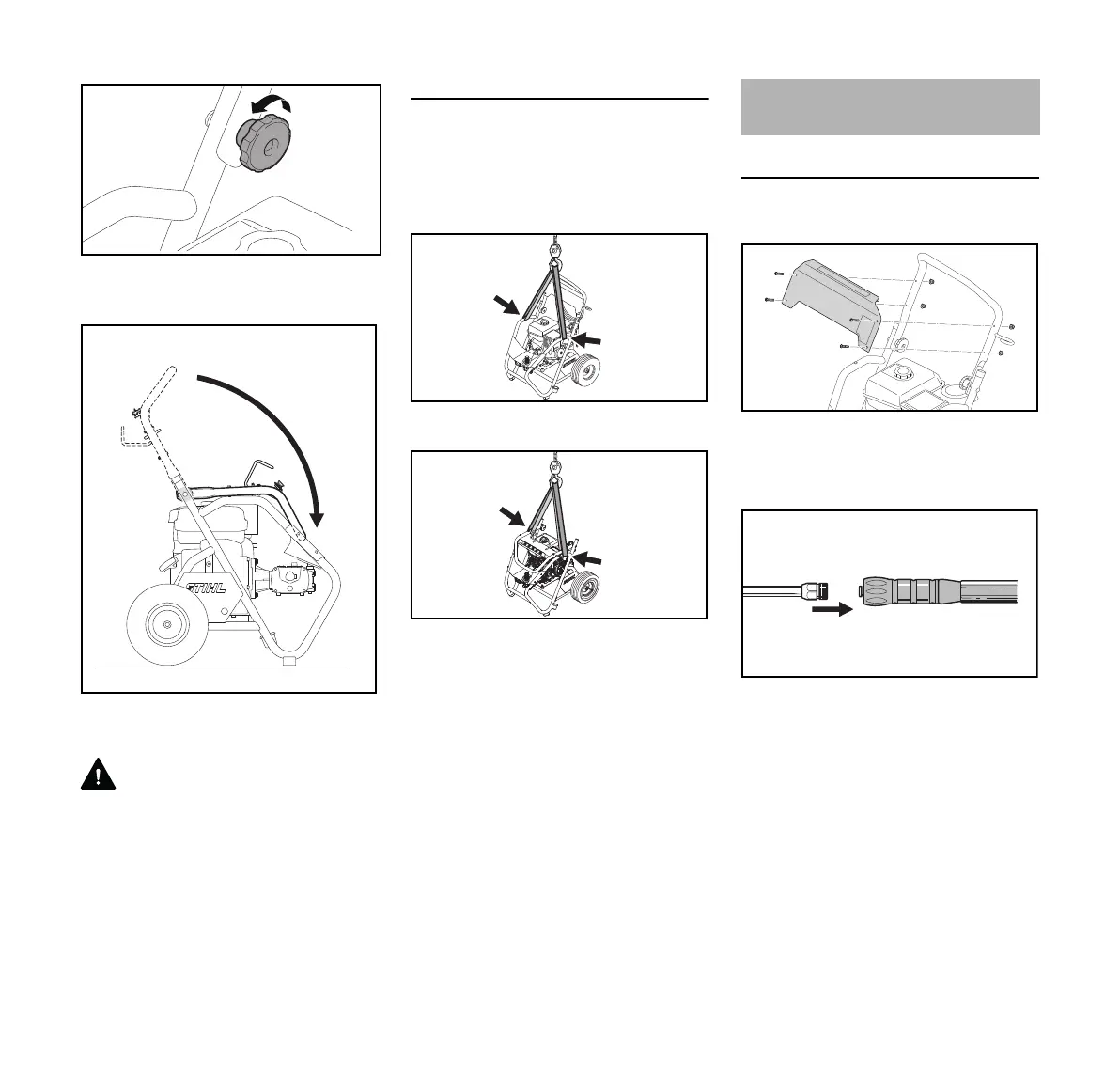

N Loosen the star knob (1) on both
sides
N Swing the pushbar (2) down as far
as possible
WARNING
Use caution when opening or folding
down the pushbar. Avoid pinching
hands or other body parts between the
pushbar and housing.
Lifting the pressure washer with a crane
To lift the pressure washer with a crane,
secure the straps to the following points
on the frame.
Pushbar open
Pushbar folded down
Installing parts and accessories
Dashboard
N Attach the dashboard (1) to the
frame (2)
Spray gun
N Attach the spray lance (1) to the
spray gun (2)
1
0000-GXX-0293-A0
2
0000-GXX-0297-A0
0000-GXX-0304-A0
0000-GXX-0305-A0
Before the First Use
0000-GXX-3763-A0
1
2
1
2
0000-GXX-0306-A0
