RE 109, RE 119, RE 129 PLUS
English
9
Clean plastic parts with a
cloth. Harsh detergents can
damage the plastic.
Clean ventilation slots in
motor housing as needed.
The machine must be
serviced regularly. Do not
attempt any maintenance or
repair work not described in
the Instruction Manual. All
other work should be carried
out by a servicing dealer.
STIHL recommends the use
of genuine STIHL spare parts.
Such parts have been
optimized for the machine and
the user's requirements.
STIHL recommends that
maintenance and repair work
be carried out only by
authorized STIHL dealers.
STIHL dealers receive regular
training and are supplied with
technical information.
The following accessory parts must be
fitted before using the machine for the
first time.

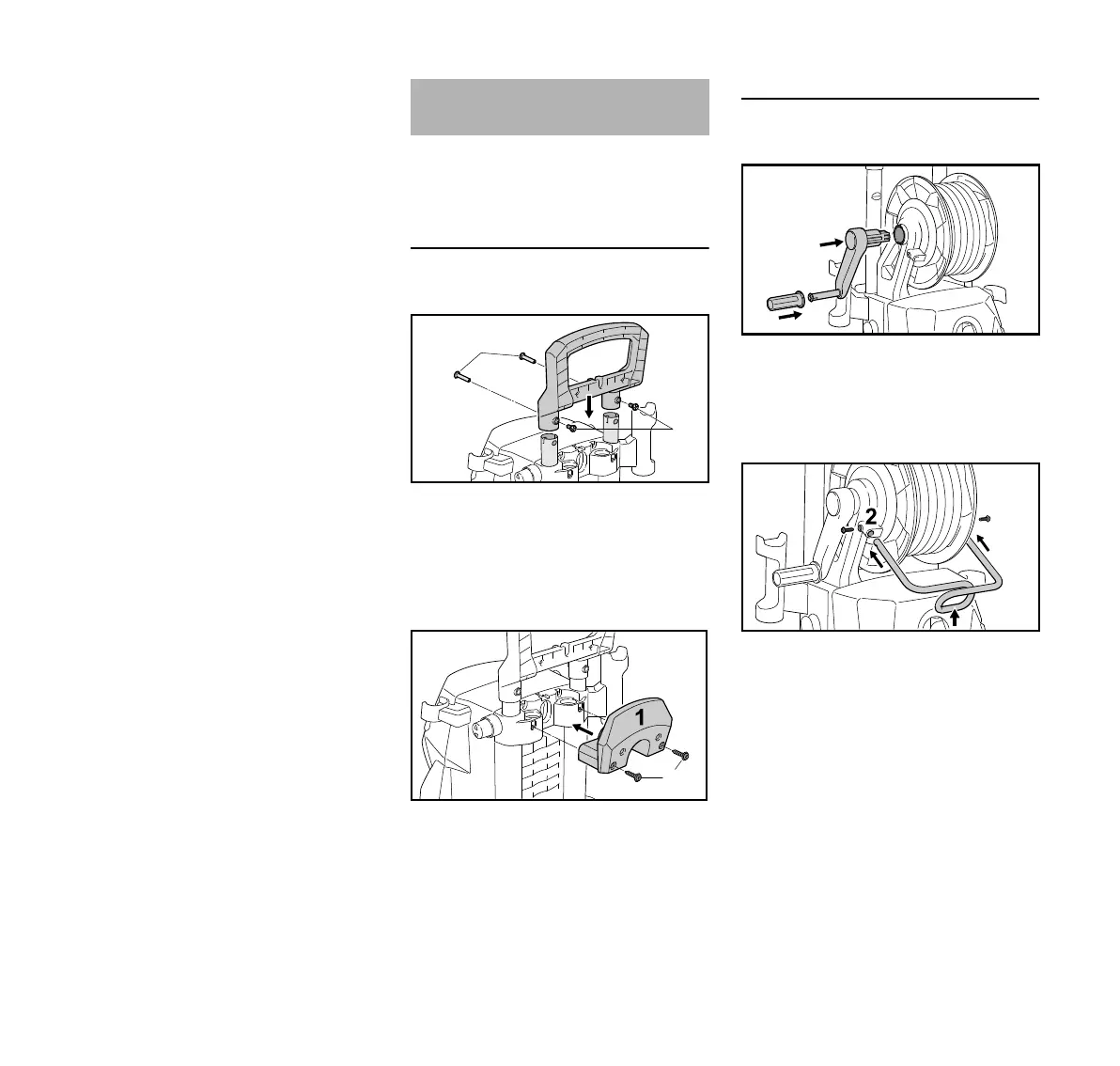

RE 109, 119
Handle
N Press the handle (1) onto the
telescopic shafts from above
N Secure the handle (1) with both
threaded sleeves (2) and screws (3)
Holder for high-pressure hose
N Secure the holder (1) for the high-
pressure hose with the screws (2)
Alternatively, the holder (1) can also be
secured to the handle.
RE 129 PLUS
Crank for hose reel
N Fit knob (1) onto crank (2).
N Engage crank (2) into the hose reel
support (3)
Fitting the guide clip
N Insert the guide clip (1) into the
supports (2), with the hose guide
facing down
N Secure the guide clip (1) with both
screws (3)
N Feed the high-pressure hose
through the hose guide (arrow)
Holder for flat hose cassette
A flat hose cassette is available as
special accessory.
Depending on the country, the flat hose
cassette holder is either included or is
available as a special accessory.
Assembling the Unit
