Stihl RE 119 User Manual

RE 109, RE 119, RE 129 PLUS
English
12
RE 109, RE 119

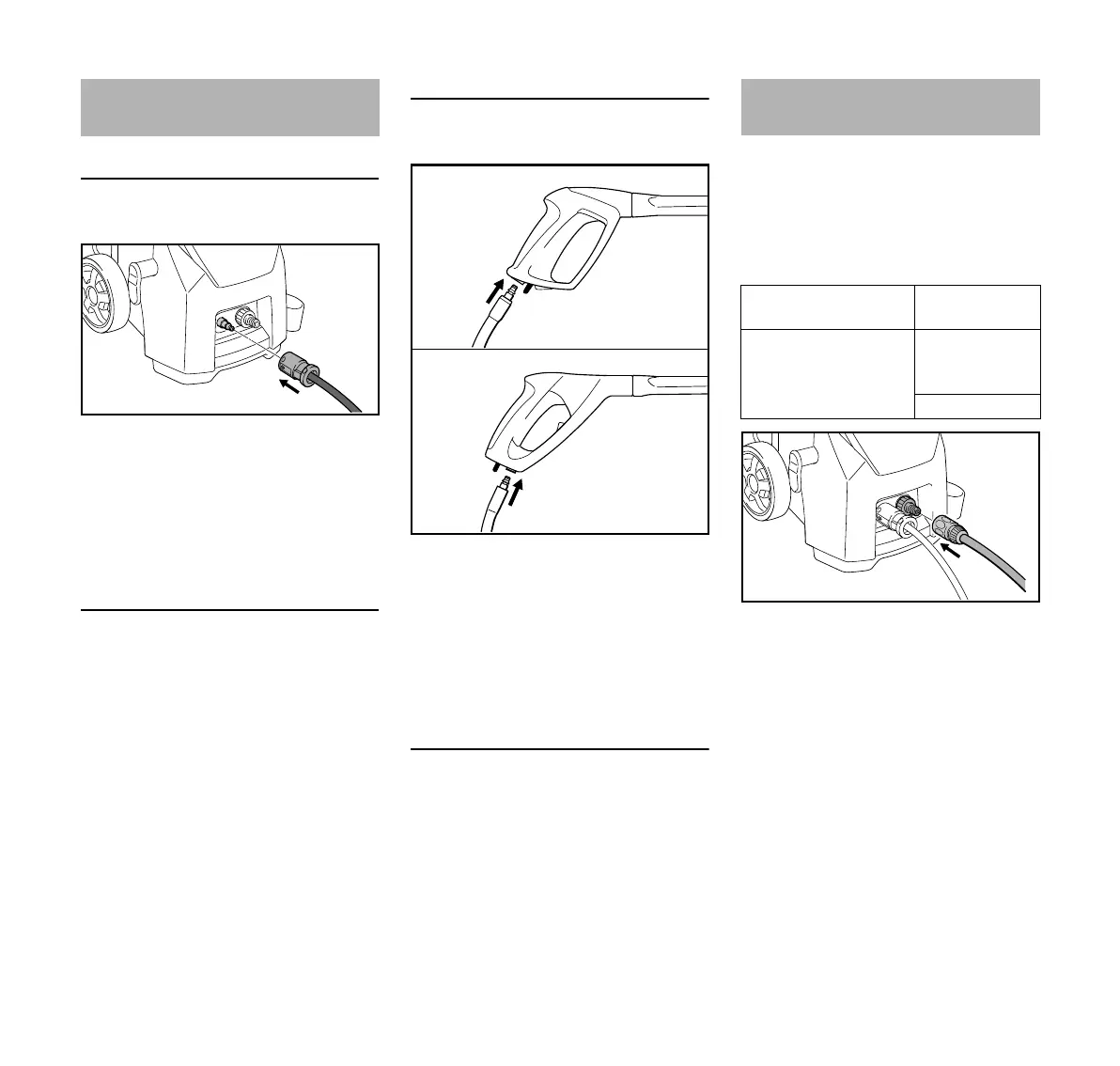

Connecting the high-pressure hose
N Push the coupling (1) onto the
connector (2)
Disconnecting the high-pressure hose
N Unlock the high-pressure hose by
pulling the clutch (1) and remove
from the connector (2)
RE 129 PLUS
The high-pressure hose is already
connected.
High-pressure hose and spray gun
Fitting
N Push the connector (3) of the high-
pressure hose into the mount on the
spray gun (4) – until it engages
Removing
N Actuate the safety catch (5) and pull
the connector (3) out of the mount
on the spray gun (4)
High-pressure hose extension
As a rule, always use only one high-
pressure hose extension – see "Special
accessories"
N Connect the high-pressure hose
extension between the high-
pressure hose and spray gun.
N Connecting the water hose
Briefly rinse out the water hose before
connecting it to the machine to prevent
sand and other dirt particles from
entering the machine and to purge the
air from the water hose.
N Push the coupling (1) on to the hose
connector (2)
N Turn on water supply
To vent the system:
N Actuate the spray gun (without
spray lance mounted) until a
uniform water jet emerges
Fitting, removing high-
pressure hose
1
2013BA012 KN
2
4
3
5
3
4
5
2013BA0013 KN
RE 109
RE 119
RE 129 PLUS
Connecting the water supply
Diameter of water
hose: 1/2"
Length of water hose: min. 10 m (to
absorb pres-
sure surges)
max. 25 m
2
1
2013BA014 KN

Stihl RE 119 Specifications

General

Power Output	2.1 kW
Operating Pressure	125 bar
Maximum Pressure	135 bar
Water Throughput	500 L/h
Maximum Water Supply Temperature	40 °C
Hose Length	8 m
Power Consumption	2.1 kW
Power Cable Length	5 m
Water Flow	500 l/h
