Stihl RE 163 PLUS - Transporting the Unit; Height adjustable handle; Fitting, removing spray lance

RE 143, RE 143 PLUS, RE 163, RE 163 PLUS
English
10

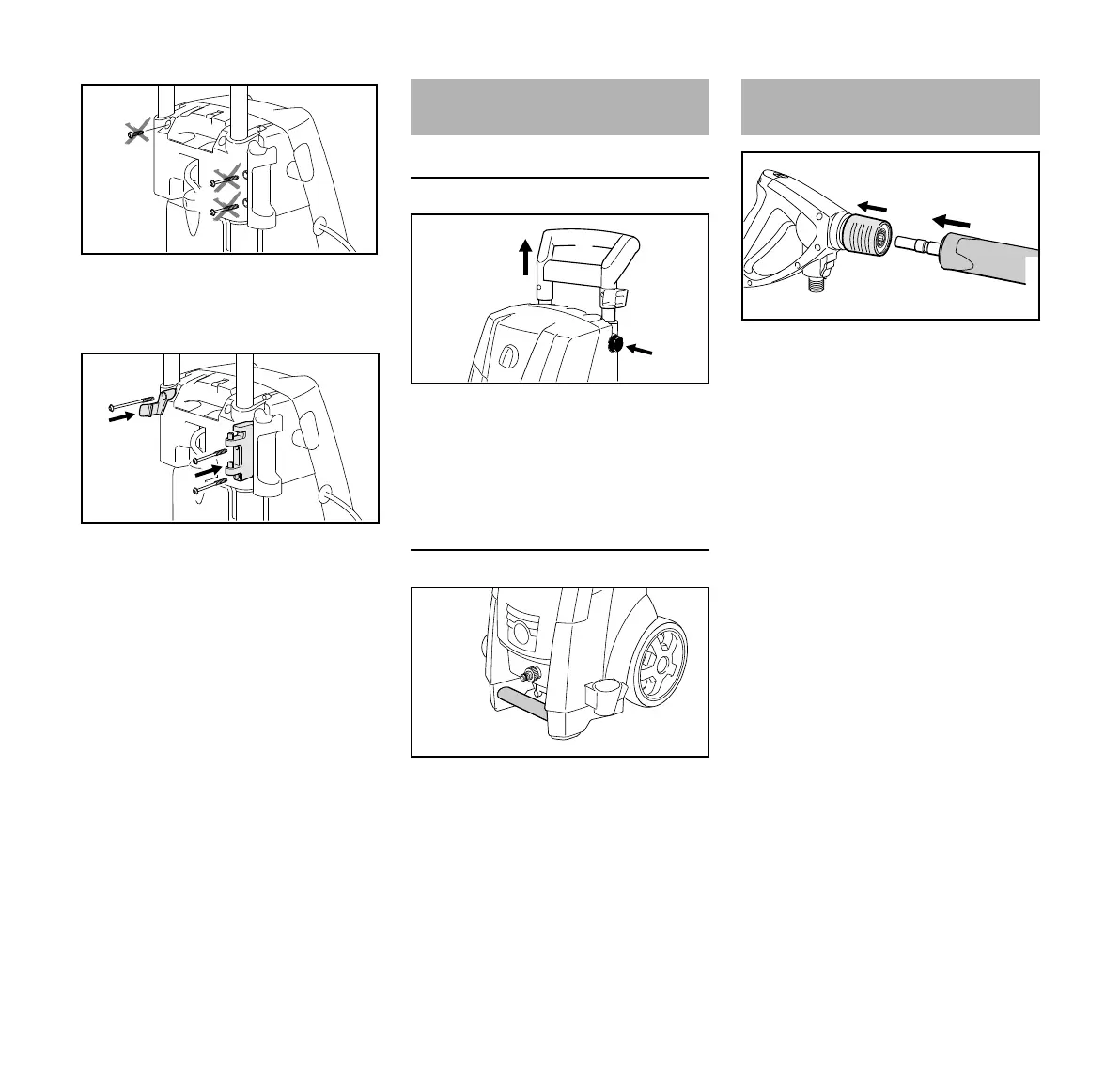

N Remove the screws (1) from the
spray gun holder
N Unscrew screw (2)
N Fasten the holder for the flat hose
cassette with the included
screws (3)
N Fasten the catch hook for the flat
hose cassette with the included
screw (4)
Height adjustable handle
N Press button (1) and pull handle (2)
upward as far as it will go
N Release button and pull/push on the
handle again until the telescopic
shafts engage
Carrying handle
The machine can be carried using the
transport handle.
N Pull back and hold the coupling (1)
N Push the spray lance (2) into the
mount on the spray gun, or pull it out
to remove the spray gun,
respectively
N Release the coupling (1)
1
1607BA026 KN
2
3
1607BA027 KN
4
Transporting the Unit
2
1607BA006 KN
1
1607BA040 KN
Fitting, removing spray lance
647BA021 KN
1
2
