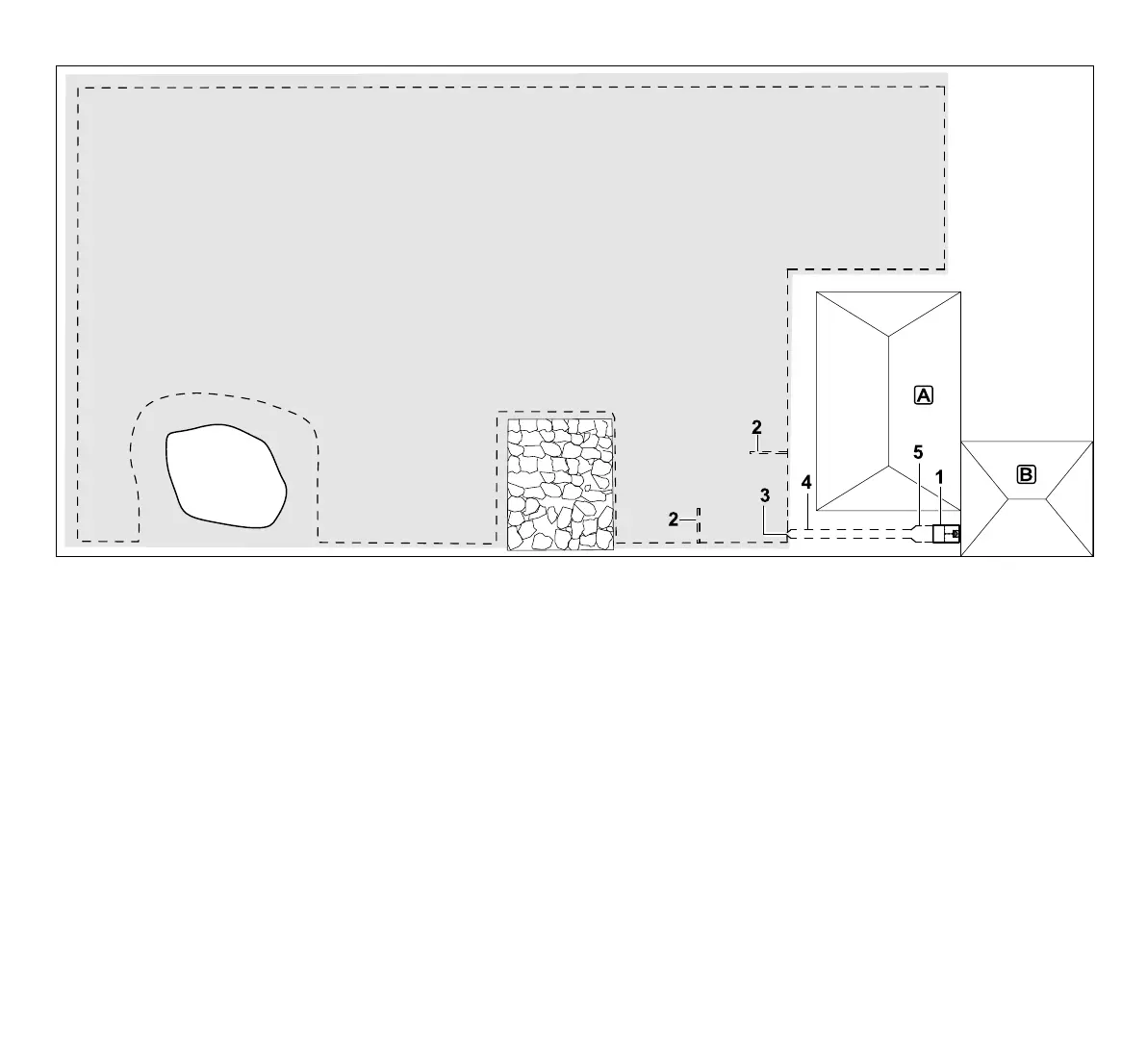

Mowing area with external docking
station (1)
Docking station:
Location (1) next to the garage B and
behind the house A.
Wire clearances: (Ö 12.5)
Clearance to the edge: 33 cm
Clearance to adjoining area that can be
travelled on (e.g. patio) with a stepped
area height of less than +/- 1 cm: 0cm
Clearance to the pond: 100 cm
Guide loops:
Installation of two guide loops (2) for using
the offset drive home function. (Ö 11.13)
Minimum distance from the corridor
entrance: 2m
Note the minimum clearance to corners.
(Ö 12.12)
Programming:
Define the size of the mowing area and
program at least one starting point outside
the corridor to the docking
station.(Ö 11.14)
Points to note:
Installation of a corridor (4) with funnel-
shaped entrance area (3). (Ö 12.11)
Wire clearance: 27 cm
The corridor (4) leads to the external
docking station (1). Increase the wire
clearance in the corridor to the width of the
ground plate (5) one metre in front of the
docking station. (Ö 9.9)
Note the space requirement in the corridor
and beside the docking station.
