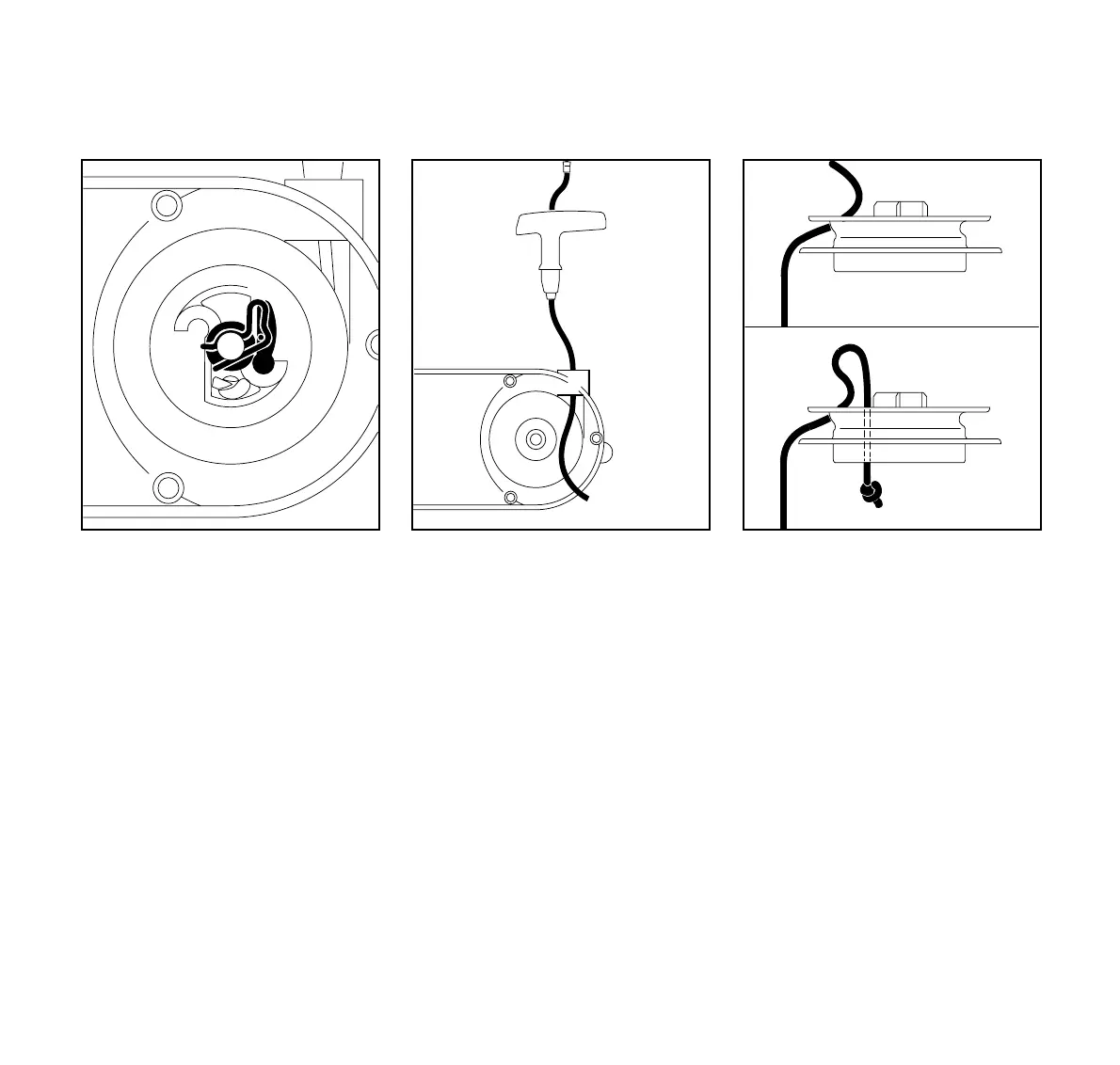

: Prise off the spring clip (3)
: Remove the rope rotor with
washer (4) and pawl (5)
: Using a screwdriver, lever the rope
out of the handle
: Remove the remainder of the rope
from the pulley and handle
: Thread the new starter rope (see
"Specifications") through the starter
handle and rope guide bush (6) from
top to bottom
: Pull the starter rope through the
pulley and secure it in the rope rotor
with a simple knot
38BA028
4
3
5
38BA029
6
338BA030
