41TS 700, TS 800
English / USA

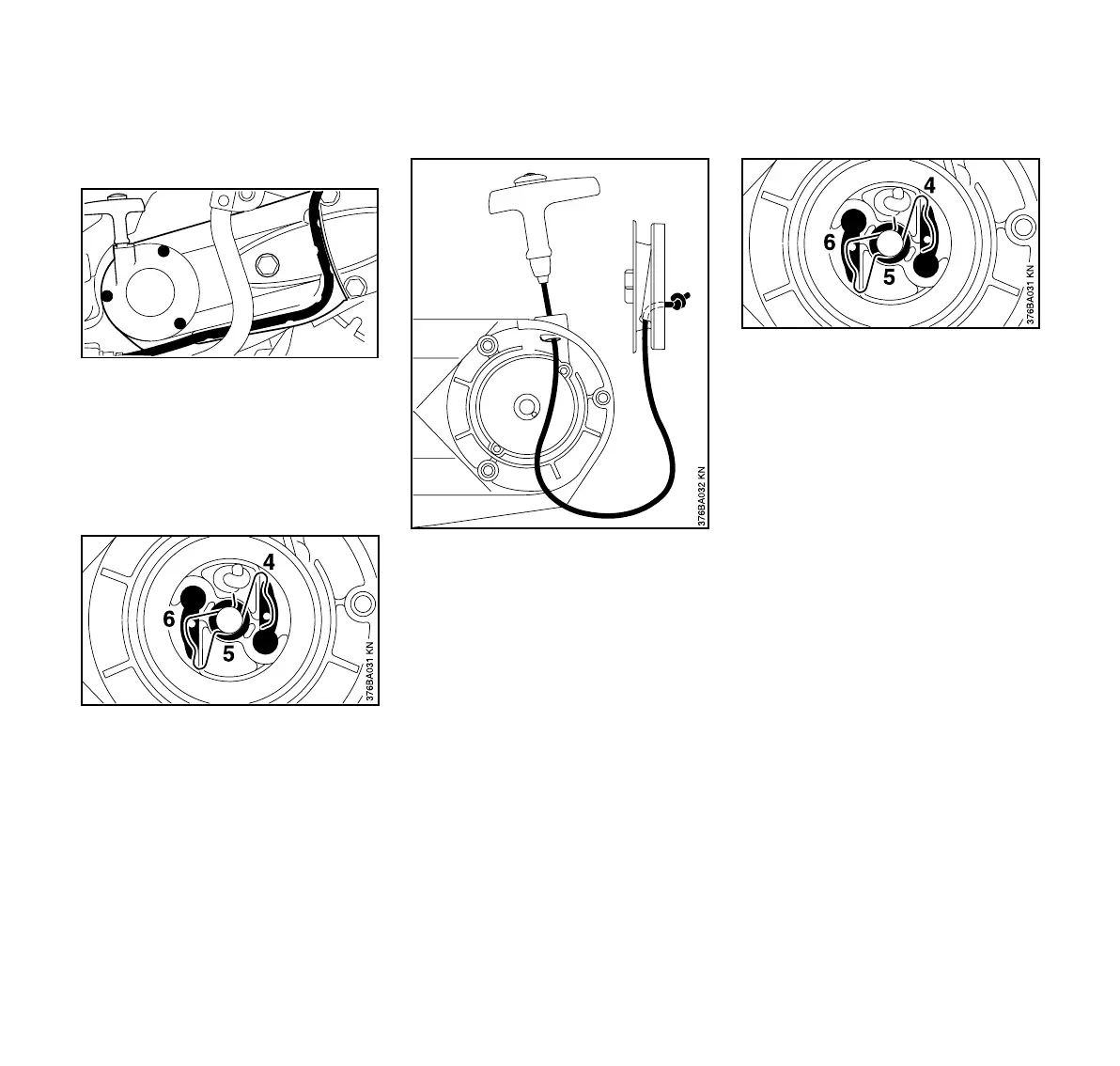

Replacing the starter rope
: Remove the hose (1) from the guide
in the starter cover.
: Remove the screws (2).
: Remove the starter cover (3) from
the power unit.
: Remove the spring clip (4)
: Remove the rope rotor with
washer (5) and pawl (6).
: Lever the rope out of the starter
handle with a screwdriver.
: Remove the remainder of the rope
from the rotor and starter handle.
: Thread a new ElastoStart starter
rope from top to bottom through the
handle and rope guide bush (7).
: Thread the rope through the rotor
and secure it in the rotor with a
simple overhand knot.
: Slip the rope rotor on the starter
post and turn it back and forth a little
until
: the anchor loop of the rewind spring
engages.
: Refit the pawls (6) in the rope rotor.
: Place the washer (5) on the starter
post.
: Press the spring clip (4) onto the
starter post and over the pegs of the
pawl with a screwdriver or suitable
pliers.
The spring clip must point to the left,
in anticlockwise direction – as
illustrated.
Replacing the starter rope
and rewind spring
1
2
2
2
376BA057 KN
3
7
