Stihl TS 700 - Main Parts of the Machine; Version TS 700 Component Identification

47TS 700, TS 800
English / USA
Version TS 700
1= Fastener for filter cover
2= Air filter
3= Fuel pump
4= Starter grip
5= Carburetor adjusting screws
6= Fuel filler cap
7= Water attachment
8= Tensioning nut
(V-belt tensioner)
9= Guard
10= Adjusting lever of wheel guard
11= Abrasive wheel
# Machine no
12= Front thrust washer (Flange)
13= Muffler
14= Spark arresting screen
15= Front handle
16= Decompression valve
17= Cap for spark plug terminal
18= Choke lever
19= Slide control
20= Throttle trigger
21= Throttle trigger interlock
22= Rear handle

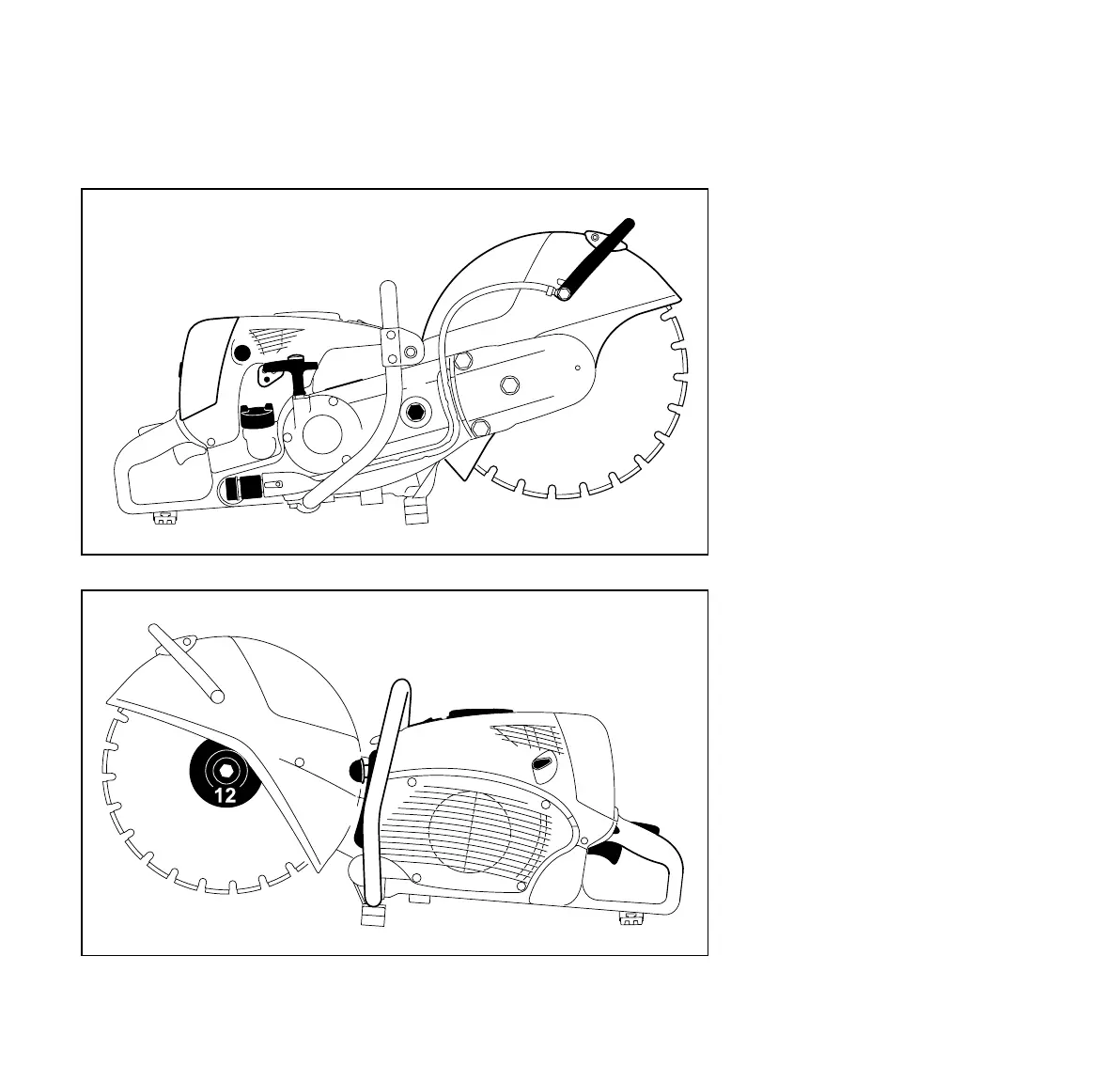

Main parts of the machine
6
#
8
3
376BA061 KN
9
11
7
1
2
5
4
10
20
22
21
19
14
16
18
376BA062 KN
13
15
17
