Stihl TS700 User Manual

TS 700, TS 800
English
19

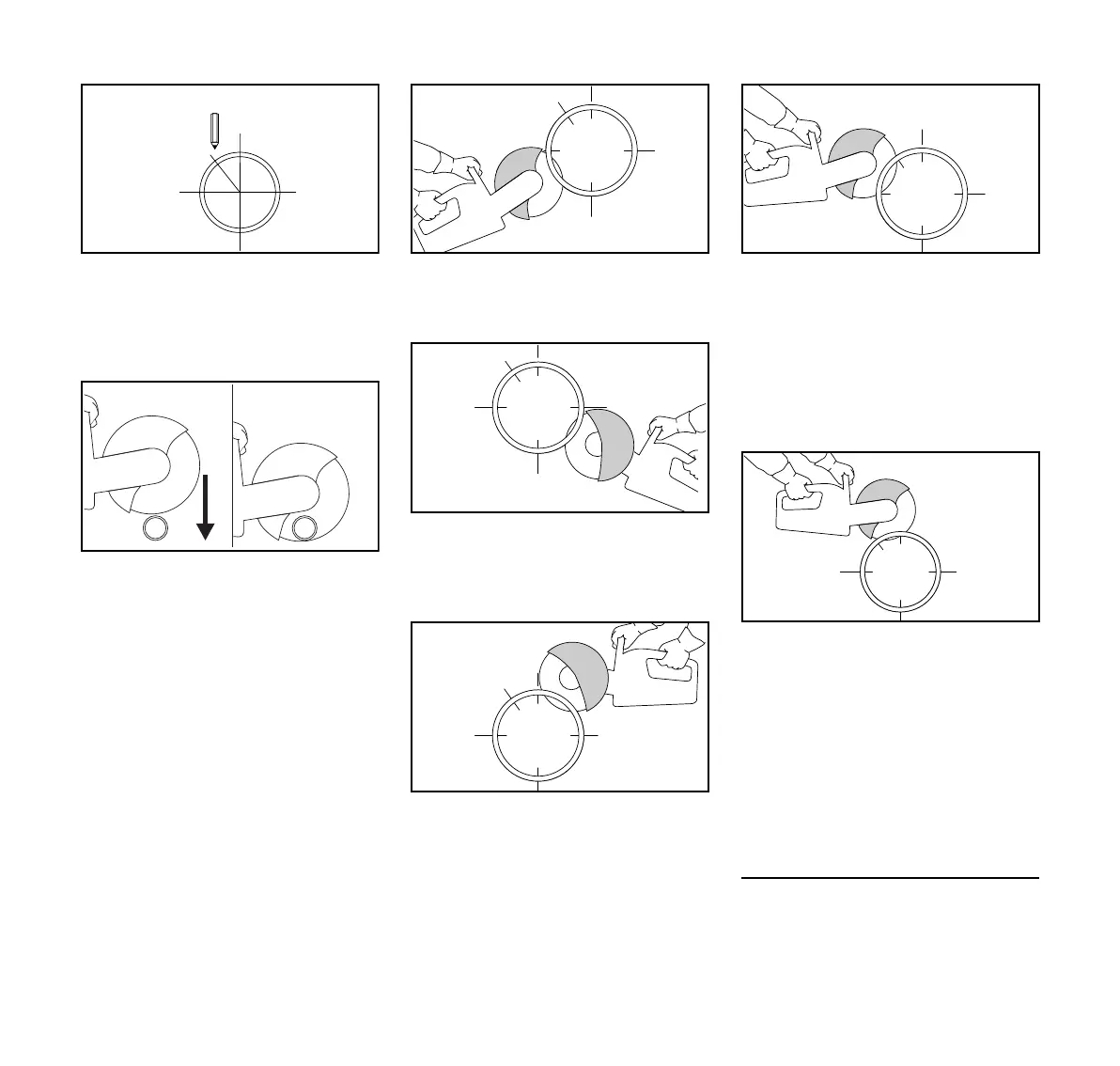

N Determine and mark direction of cut.
N Determine sequence of cuts.
Outer diameter of pipe is smaller than
the maximum cutting depth
N Make one cut from the top to the
bottom
Outer diameter of pipe is greater than
the maximum cutting depth
Plan first, then cut. Several cuts are
needed – correct sequence is important.
N Turn guard to rear stop.
N Always start at the bottom, use the
front and upper part of the abrasive
wheel for cutting.
N Use the front and upper part of the
abrasive wheel for cutting the
opposite lower side. Make sure that
the cut at the bottom is complete.
N Next, make a first lateral cut on the
top half of the pipe, connecting with
the kerf from the bottom half.
N A second lateral cut is then made in
the marked area. To keep the pipe
from pinching during this cut, never
cut into the area of the final cut.
Only make the final top cut once all
bottom and lateral cuts have been
completed and connect with one
another.
N Always make the final separating
cut from the top (approx. 15 % of the
pipe circumference). If the
workpiece is properly supported, it
should not pinch when the cut is
completed. If there is any residual
pinching, however, it will be at the
bottom of the wheel, where it may
result in pull-away, but not in
kickback. Be alert for pull-away.
Concrete pipe – cut recess
Sequence of cuts (1 to 4) is important:
N First, cut hard-to-reach areas.
002BA528 AM
002BA558 AM
002BA560 AM002BA561 AM002BA562 AM 002BA563 AM
002BA559 AM

Stihl TS700 Specifications

General

Max. Engine Speed	9, 300 rpm
Displacement	98.5 cm³ (6 cu. in.)
Weight	25.6 lbs
Maximum Wheel Size	350 mm
Fuel Capacity	40 oz
Arbor Size	20 mm
Maximum Cutting Depth	125 mm (4.9 in)
