11. PART LIST

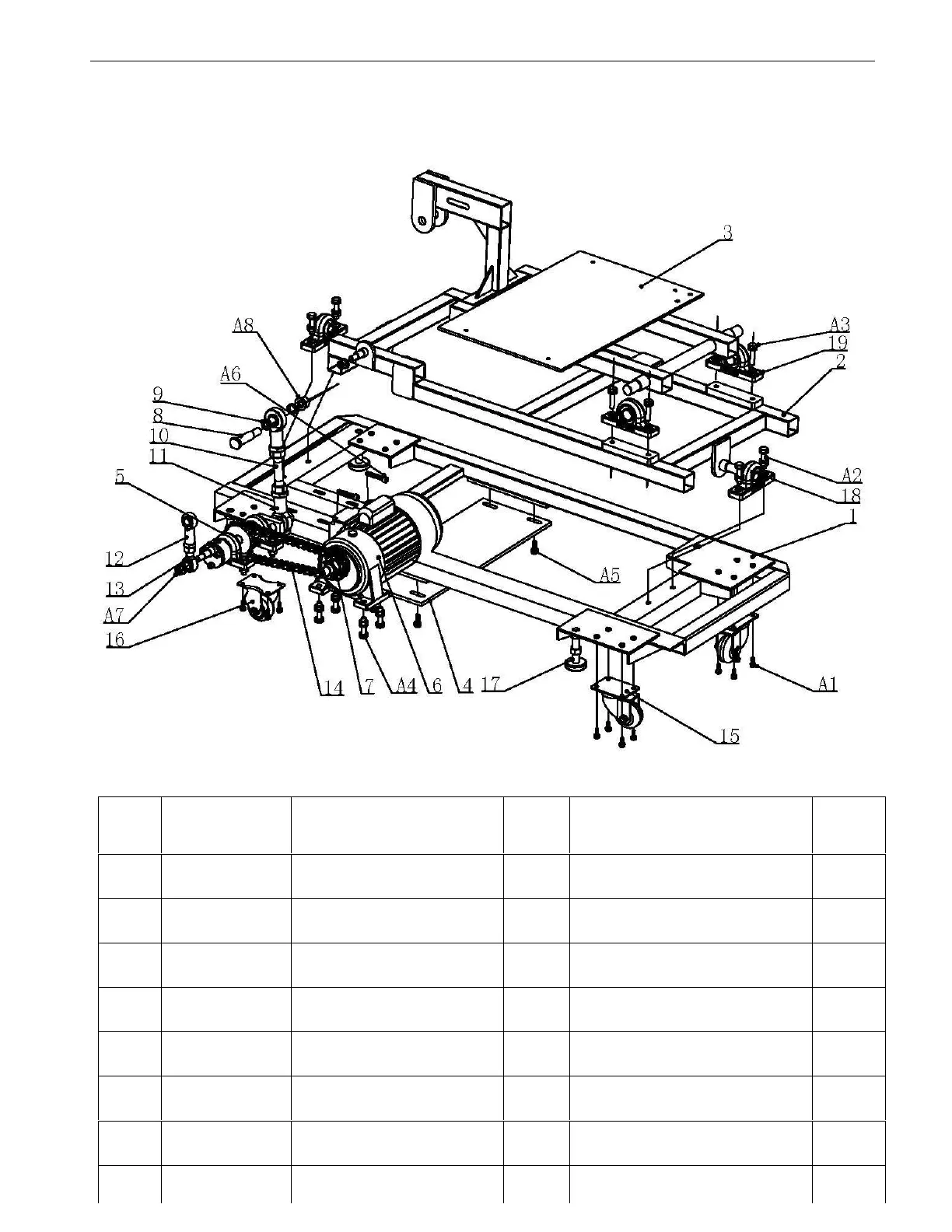

11-1 BASE MECH ASSY
NO.
PART CODE
FOR BASE
FRAME
DESCRIPTION
QTY
SPECIFICATION
REMA
EK
1
COB-M-01
BOTTOM FRAME
1
Q235
2
COB-M-02
MAIN MOTION FRAME
1
Q235
3
COB-M-03
UP MOTION FRAME
1
Q235
4
COB-M-04
PLATE FOR MOTOR
1
Q235
5
COB-M-05
AXIS OF ROTATION
FIXING ASSY
1
ASSY
6
COB-M-06
MOTOR
1
7
COB-M-07
MOTOR CHAIN WHEEL
1
45#
8
COB-M-08
HINGE PIN
1
Q235
