Sting KC Cobra - Coin Mechanism（Mechanical）D-200; Coin Mechanism（Electronic)

SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM
12
3+5
(Optional)
Out sensor error.
Inspect for foreign objects on
sensor or bill path and clean.
5
Bill box has been removed.
Replace the bill box.
6
Stacker error or stacker full.
Empty the bill box.
7
Motor error.
Inspect for foreign objects on bill
path and clean.
6-4 COIN MECH（MECHANICAL）D-200
(Aluminum; adjustment, reject iron material coin)
Scope of dimension ：D=25mm-25.5mm, T=1.8mm
DC12V+/-2V,temperature -30-+120°；

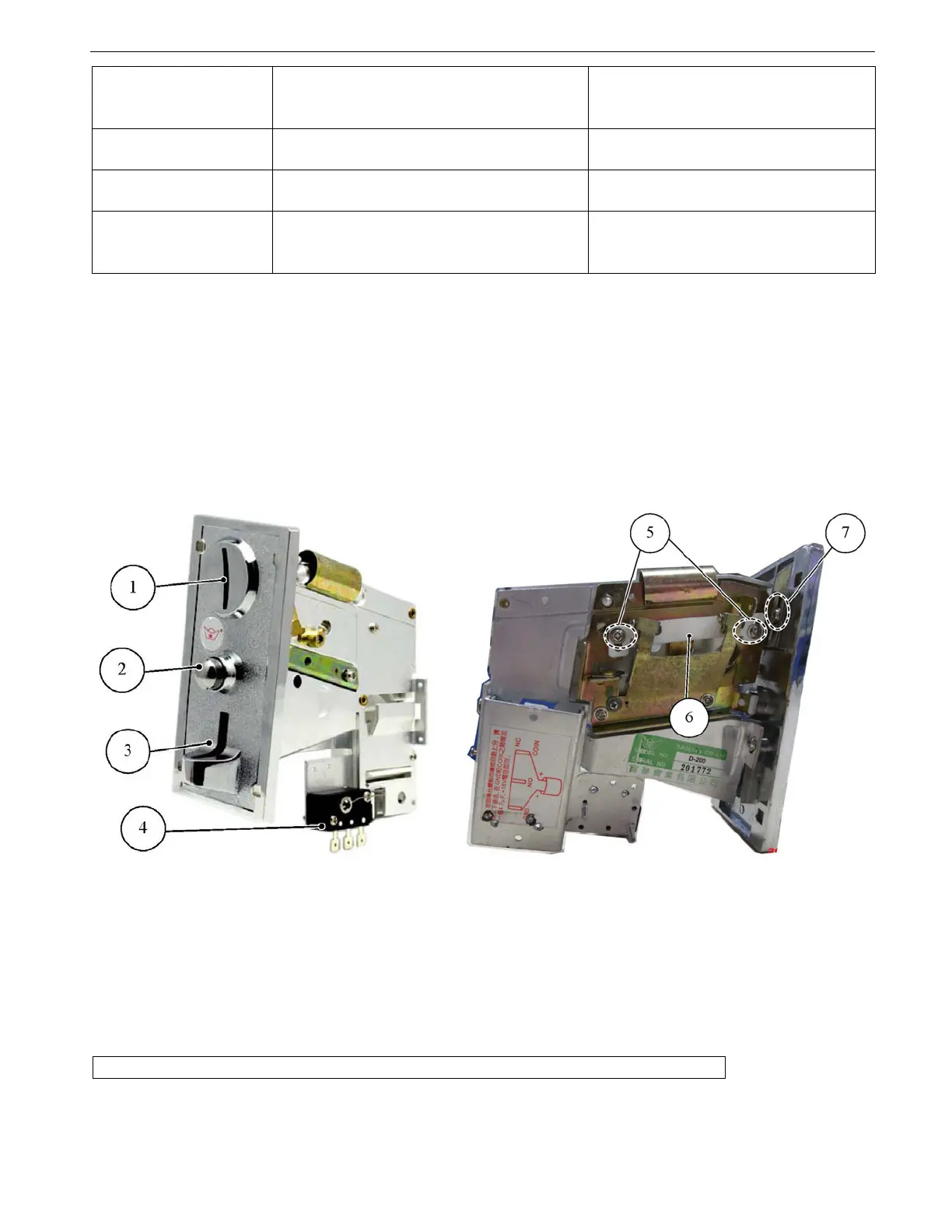

1. COIN SLOT, 2. REJECT BUTTON, 3. REJECT SLOT, 4. COIN SWITCH
5. SCREW FOR ADJUSTMENT, 6. ADJUSTMENT ROD, 7. SET SCREW
Press Reject Button, the jamming coin will come out of the Reject Slot. If the coin does not
come out after pressing the Reject Button, please take apart the mechanism to take out the
jammed coin.
Note: please cut off the power before taking out the coin Mechanism.
Adjustment: Loosen screw # 5, move rod #6 up and down per coin dimension. Adjust the fixed
sheet at the back of mechanism by screw #7 to avoid coin jamming.
6-5 COIN MECH（ELECTRONIC)
