6-6 TRUNK
 SERVICE DOOR KEY GUA711, open the service door to service the computer host,
circuit board etc

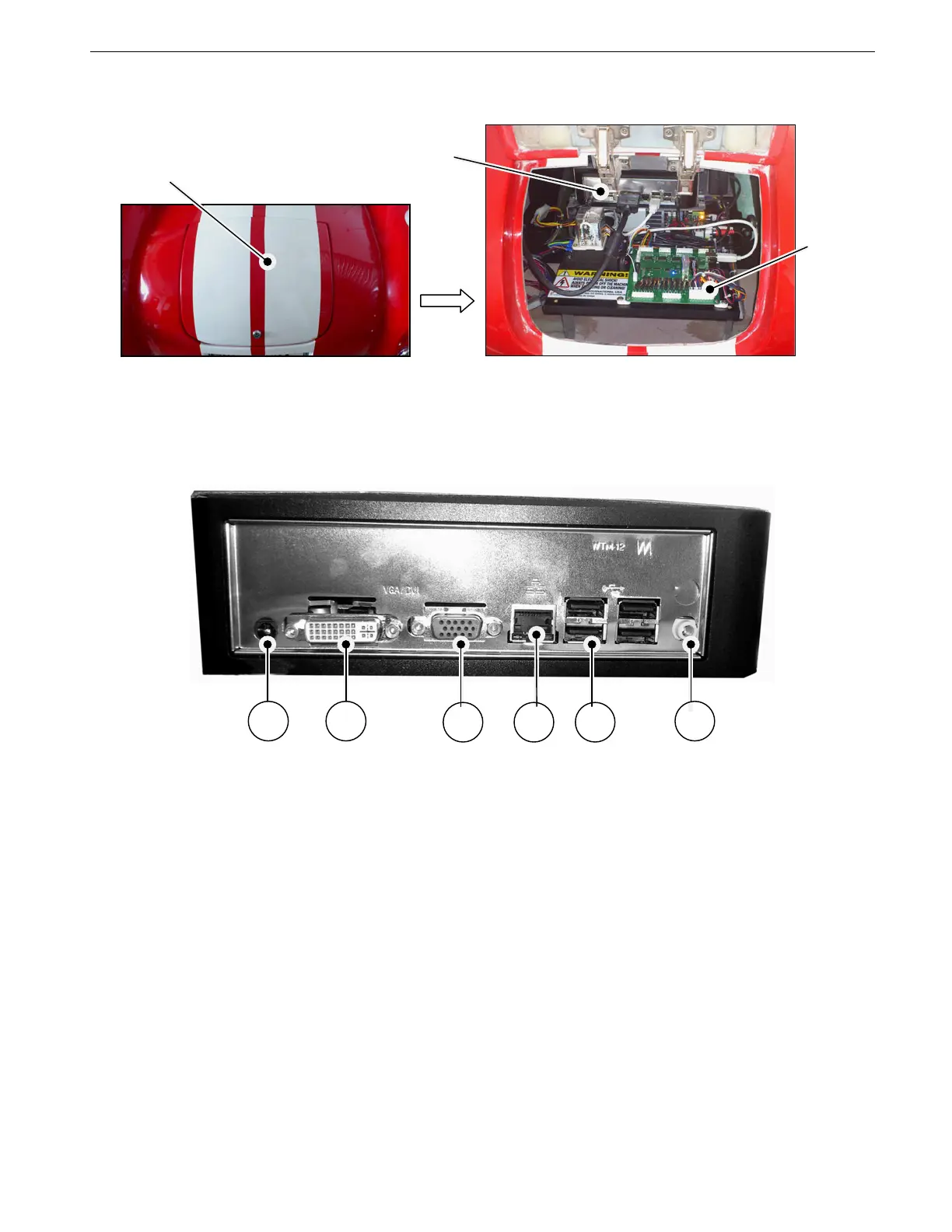

 HOST COMPUTER
1 POWER INLET
2 CVI
3 VGA
4 NETWORK CONNECTION
5 USB（4PCS）
6 AUDIO CONNECTION
SERVICE DOOR
1
2
3
4
5
6
MAIN FRAME
MAIN
BOARD
