- 25 -
Maintenance
WARNING

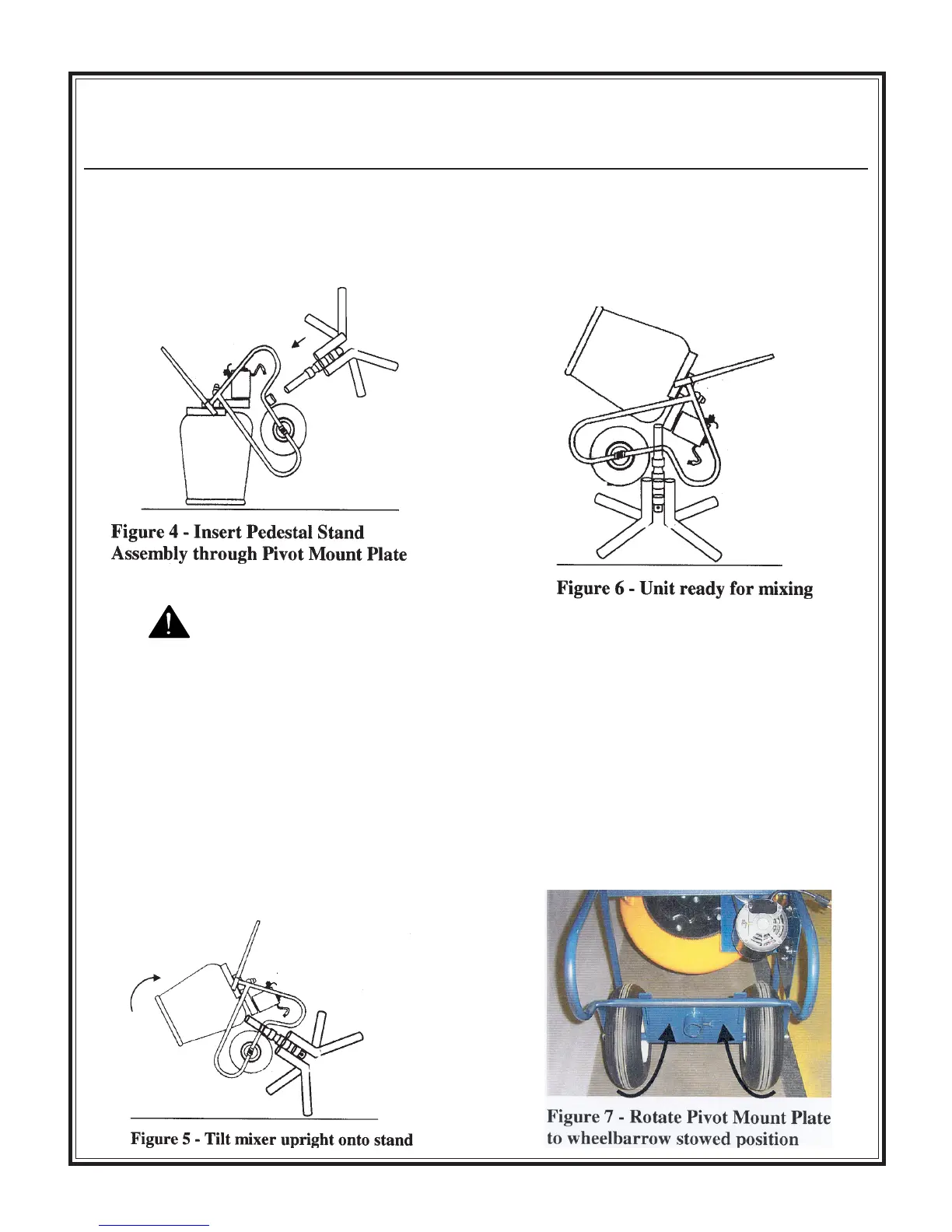

3. Insert pivot tube of pedestal stand assembly
through pivot mount and tighten thumbscrew.
(Figure 4)
Do not tilt mixer upright onto stand on
a wet, uneven or slippery surface.
Failure to follow this instruction could
result in personal injury or damage to
equipment.
4. Once the stand has been attached, move to
the opening side of the drum and begin
tilting the mixer upright onto the stand.
Always bend your knees and use correct
posture for lifting. Always tilt from the
front of the mixer. (Figure 5)
5. Once mixer has been tilted upright onto the
stand, the mixer should be tipped back into
mixing position before operating.
(Figure 6)
Converting unit back to Wheelbarrow
from Stand
To convert unit back to wheelbarrow operation
follow the directions for assembling and attaching
the pedestal stand to the unit in reverse. Make
sure to tighten thumbscrew and rotate the pivot
mount plate about the axle to its wheelbarrow
stowed position before using the unit in its
wheelbarrow function. (Figure 7)
25CMPC Combination--
Final Assembly
