Final Assembly
Pedestal Stand Assembly

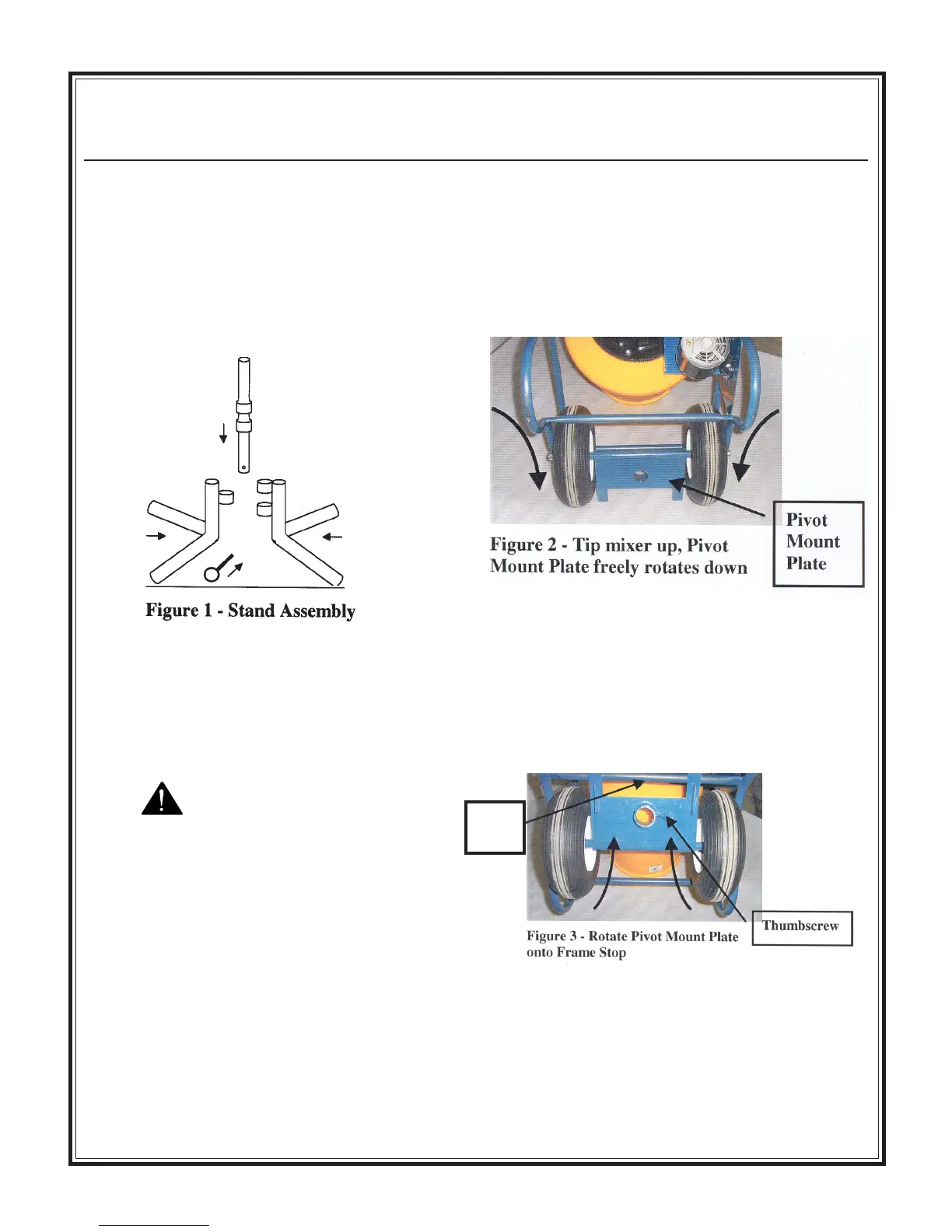

1. Place two halves of the support legs together
and insert pivot tube through the center of the
legs to join together. (Figure 1)
2. Insert locking pin through bottom of pivot tube.
Attaching Pedestal Stand to Mixer
Pivot mount plate will rotate freely about
axle when tipping mixer onto opening of
drum. Stand clear of wheel axle or
personal injury could occur.
1. Tip mixer, as if dumping contents, and place
squarely on opening of drum. The pivot
mount plate will rotate freely about the wheel
axle from its wheelbarrow stowed position.
(Figure 2)
2. Rotate pivot mount plate away from drum and
onto frame stop. Back off thumbscrew to
allow clearance for inserting pivot tube on
stand through tube. (Figure 3)
WARNING
Frame
Stop
