1. TECHNICAL DATA
1. Keyswitch - Keyswitch positions noted above.
2. E-Stop Button - Emergency stop.
3. Led Display - Message display/hour meter.
4. Vibe Direction Button - Vibration shaft direction.
5. Vibe On/Hi Speed Button - Vibration on, high travel speed or low travel speed.
6. Engine Throttle Button - Idle speed (turtle) or run speed (rabbit).
7. Right Side Forward/Reverse Control - Controls drum operation on the right side.
8. Left Side Forward/Reverse Control - Controls drum operation on the left side.
9. Radio Remote On/Off Switch.

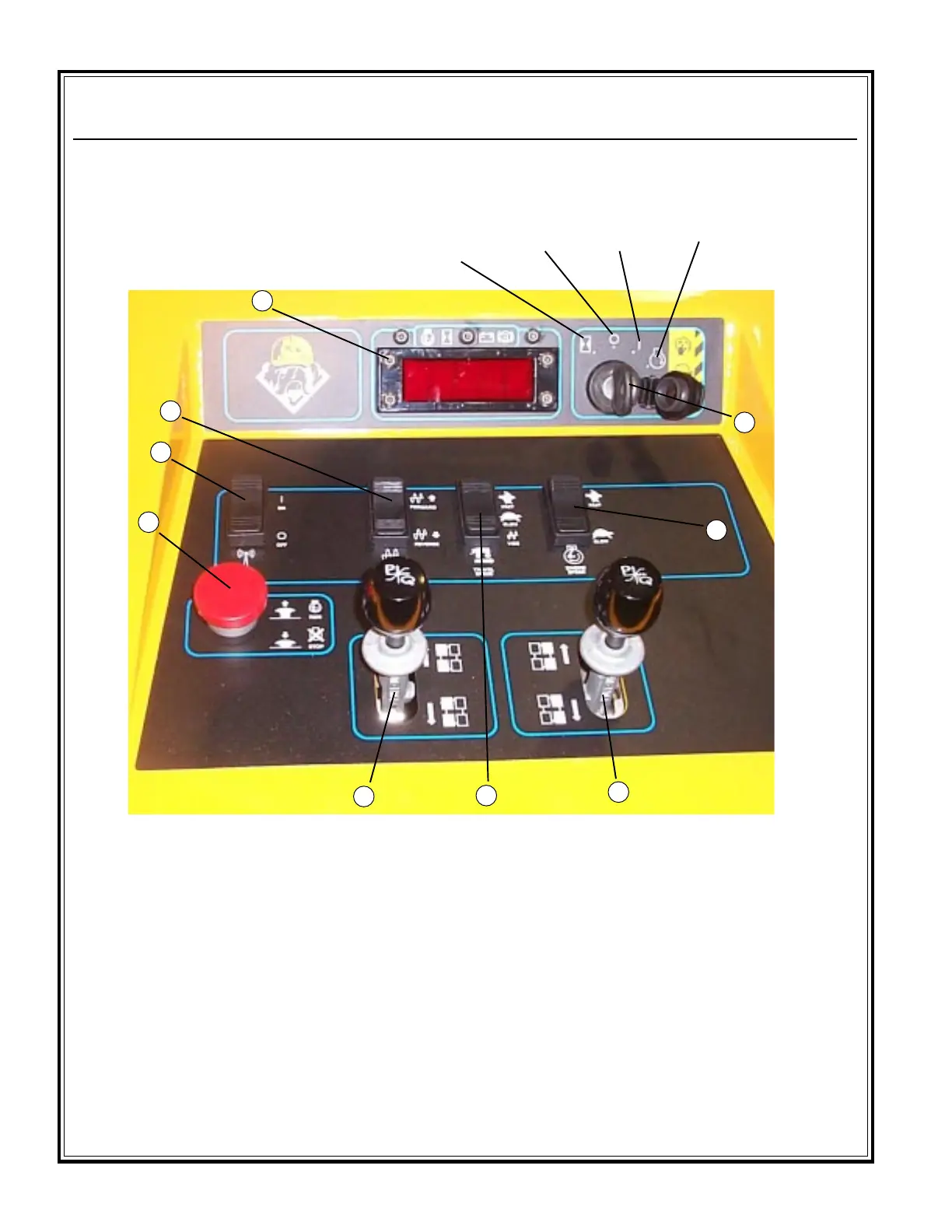

1.5 MANUAL OPERATOR CONTROLS
Accessory
Position
OFF
Position
RUN
Position
Engine Start
Position
8
5
7
3
1
6
4
9
2
