User Interface
User Interface
The tachograph detailed within this manual com-
prises two card tray mechanisms, a printer, an LCD
display, a calibration/download interface (6-pin con-
nector located behind paper cassette) and user con-
trols, located in an ISO standard radio enclosure.
This type of enclosure enables mounting in a variety
of locations, ensuring that insertion and removal of
the driver cards and operation of the controls can be
easily achieved by an operator.
The tachograph complies with EU Regulations and
displays and records speed and distance in metric
units (kilometres per hour and kilometres respec-
tively).
The tachograph also incorporates an internal clock,
which is used to indicate the current time on the
tachograph display. The tachograph is available for
use in both 12 and 24 V vehicle systems.
1
7
8
3
4
5 6
00h30
05h48
00h00
16:30

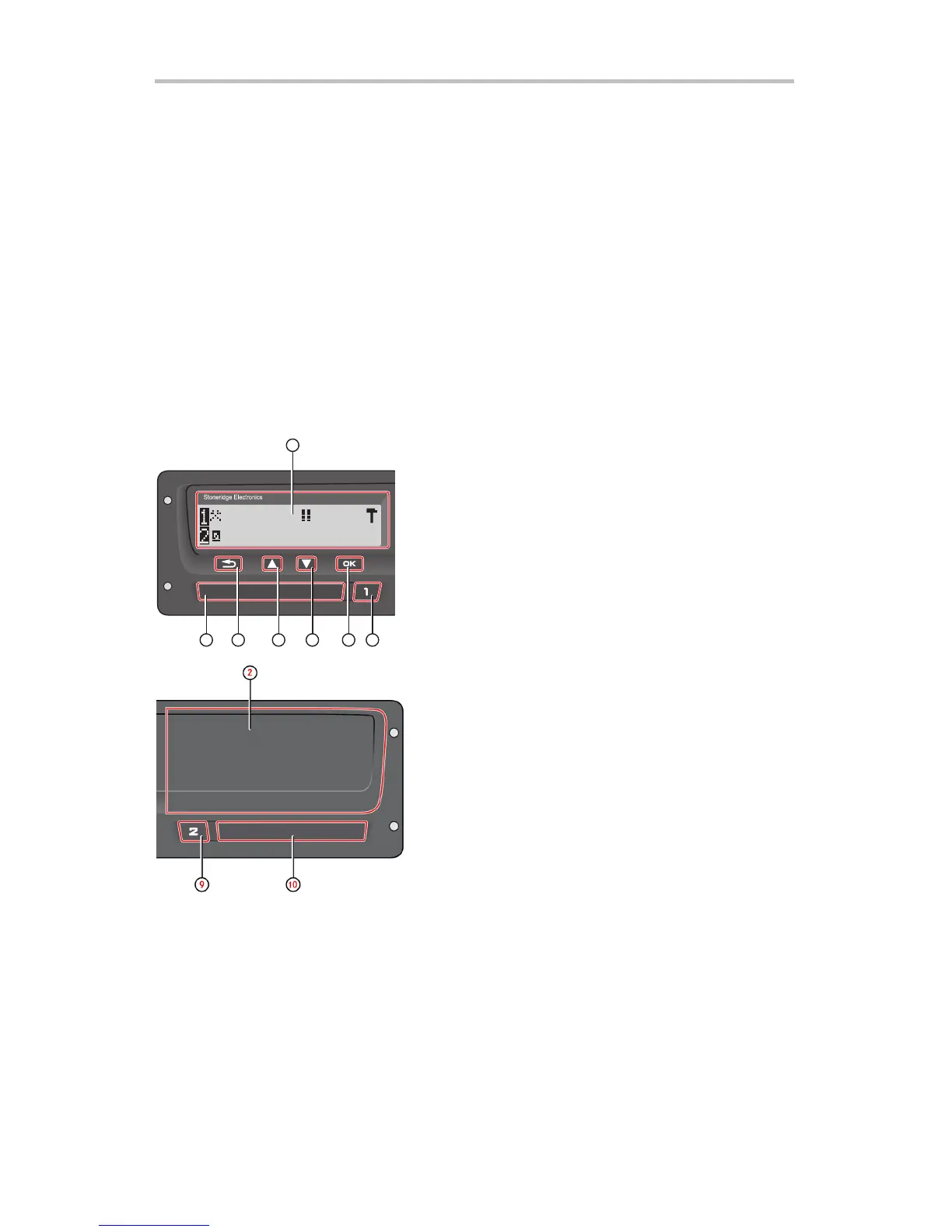

1. Display
2. Printer, 6-pin calibration/download connector,
behind the paper cassette
3. Driver card tray
4. Cancel button
5. Up button
6. Down button
7. Enter button
8. Driver button
9. Co-driver button
10. Co-driver card tray
- 9 -

Stoneridge SE5000 Specifications

General

Category	Digital Tachograph
Display	LCD
Power Supply	Vehicle battery
Operating Temperature	-25°C to +70°C
Memory	Internal memory
Interfaces	USB
Operating Voltage	12-24 V DC
Recording Medium	Driver card
