22
Installation

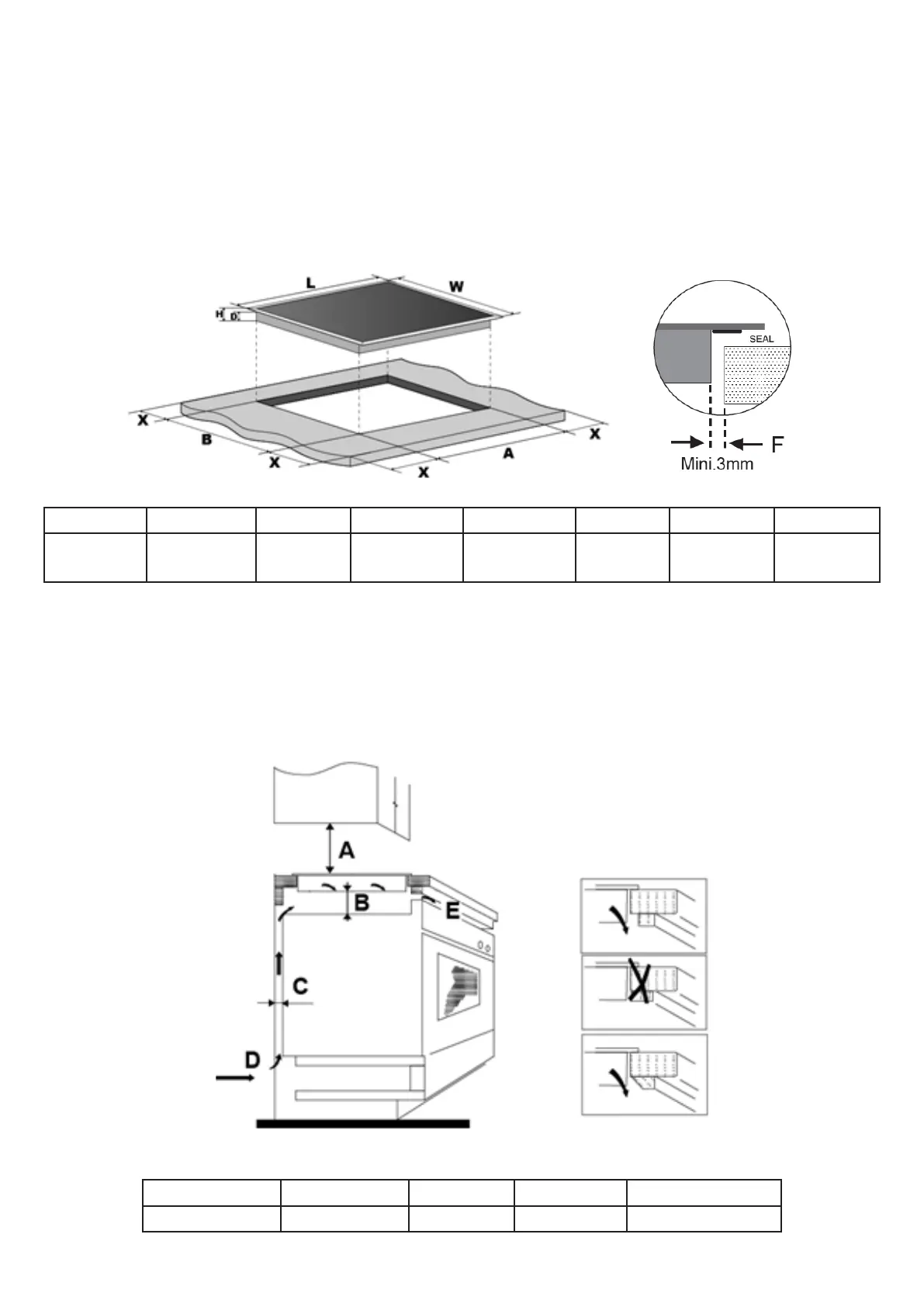

Preparing the worktop cut out
Make a cut-out in the worktop according to the dimensions shown in the table.
For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole.
Be sure the thickness of the work surface is at least 30mm. Please ensure the worktop is made of
heat-resistant material to prevent deformations caused by heat from the appliance.
L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) F(mm)
590 520 60 56
561+3
-0
491+3
-0
50 mini 3 mini
Ensure that the induction hob is well-ventilated and that the air inlet and outlets are not blocked. Make
sure that the hob is not damaged in any way. Do not install a damaged hob.
Note: The recommended distance between the hotplate and the cupboard or cooker hood above the
hotplate should be at least 760mm. If the manufacturer of the cooker hood recommends a higher clear-
ance gure, always use the greater gure.
A(mm) B(mm) C(mm) D E
760 50 mini 20 mini Air intake Air exit 5mm
