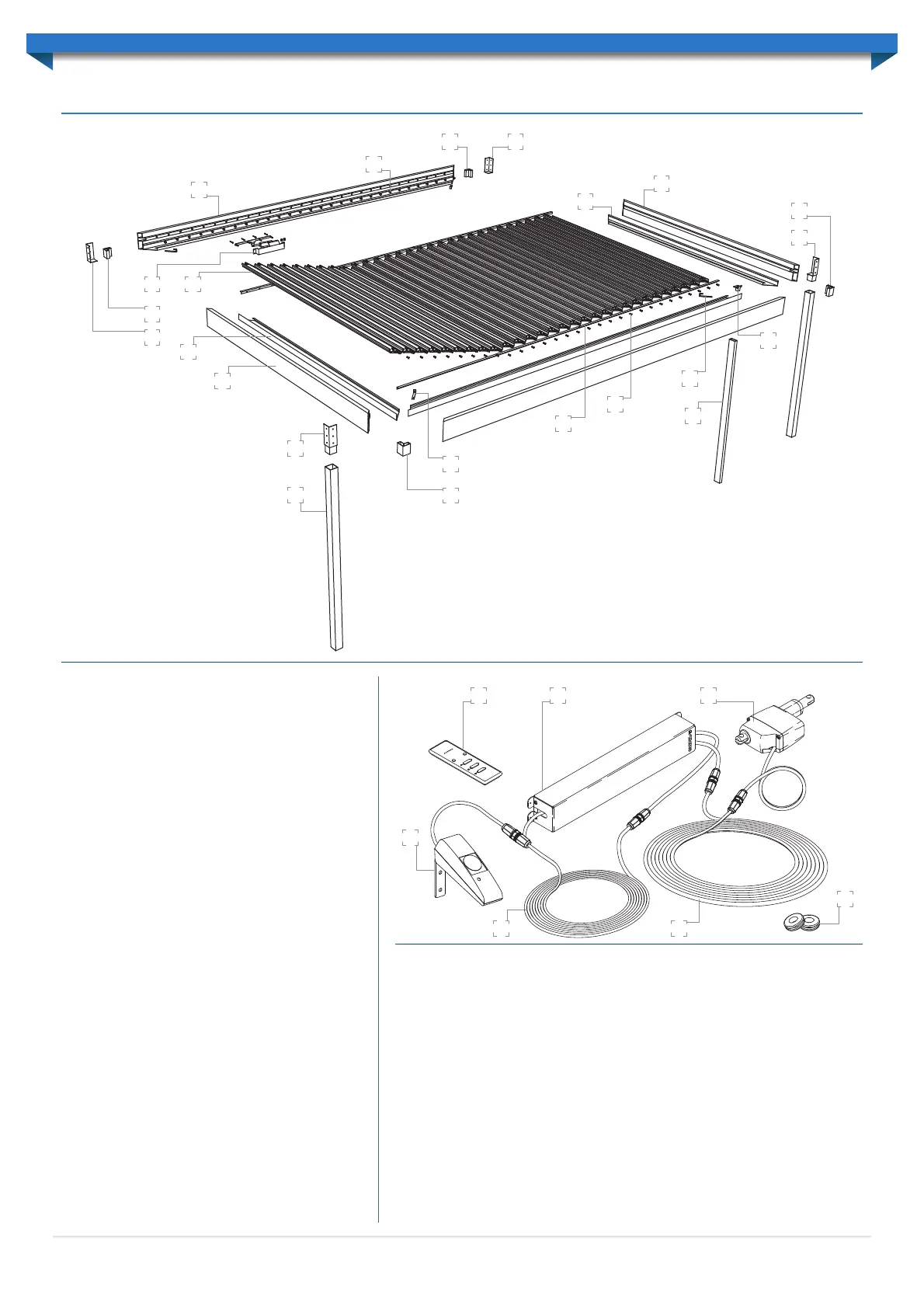

Stratco ALLURE - Component Layout; Component List; Additional Items

Figure 1.0
Figure 1.1
3
O
R
S T
U
P Q
A
C D
B
A
E
E
F
H
I
J
K
L
A
B
GN
M
C
H
C
C
D
COMPONENT LIST
A. Allure Beam
B. Gutter
C. Corner Knuckle
D. Corner Joiner
E. Corner Post-Beam Bracket
F. Post
G. Louvre Assembly
H. Gutter Strap
I. Link Rod
J. Link Pin
K. Downpipe Outlet
L. Downpipe
M. Mounting Bush
N. Actuator Drive Assembly
O. Remote Control
P. Electronic Control Box
Q. Actuator
R. Rain Sensor
S. Rain Sensor Cable
T. Actuator Cable
U. Cable Grommets
ADDITIONAL ITEMS
Please note that your Stratco Allure kit does not include any brackets or
fixings to attach the unit to an existing structure, or concrete/masonry
anchors for the column installation. If required, they must be purchased
as additional items.
COMPONENT LAYOUT
