Straumann Novaloc - 3.3 Mounting & Demounting Tool for Retention Inserts

. Novaloc® Mounting and Demounting Tool for
RetentionInserts (Fig. )

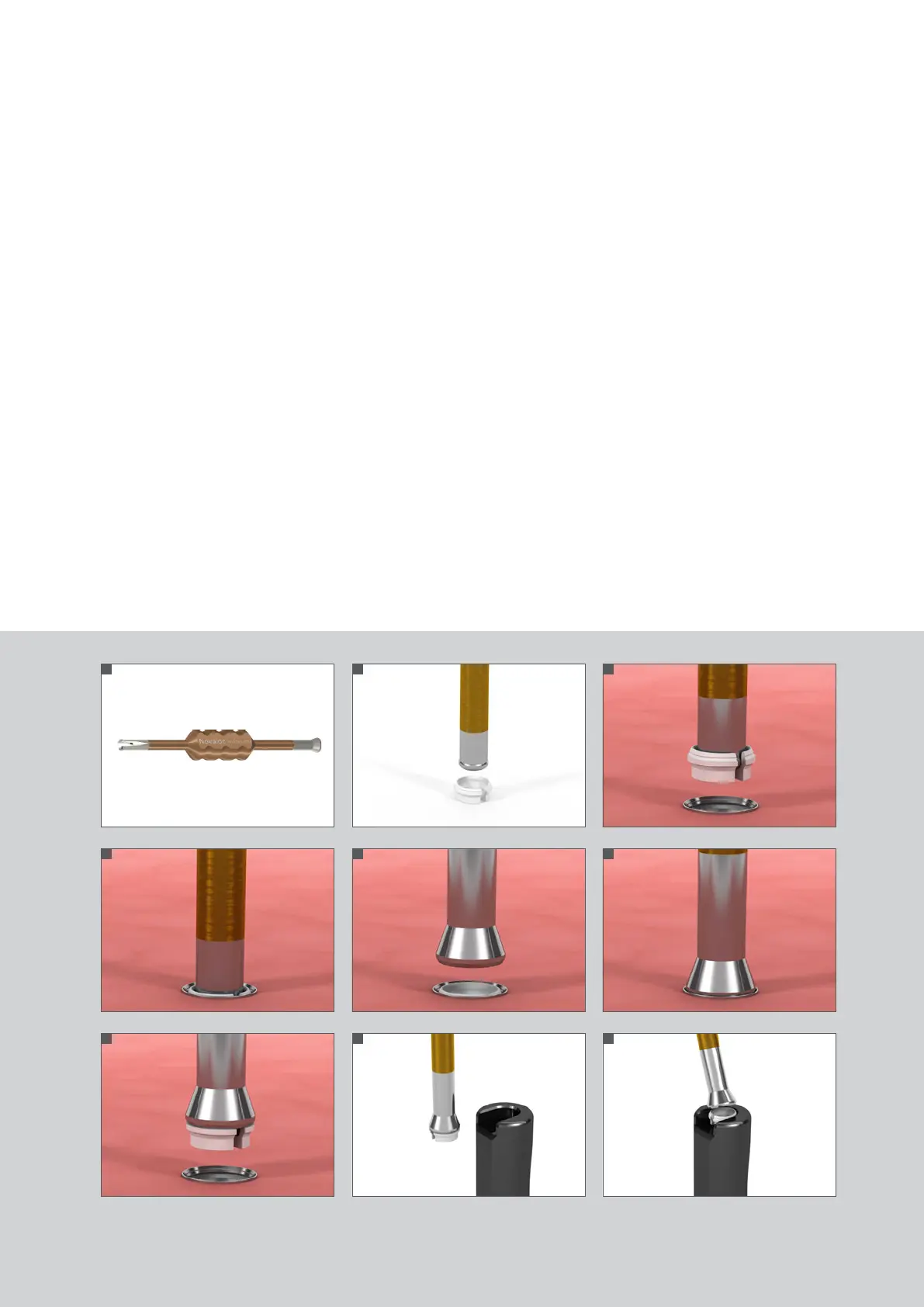

Mounting the Novaloc® Retention Insert
1. Pick up the Novaloc® Retention Insert with the gripper end of the Novaloc®
Mounting and Demounting Tool. The Novaloc® Retention Insert will lock on
to the tool (Fig. 12).
2. Place the Novaloc® Retention Insert into the Novaloc® Matrix Housing (Fig. 13).
The Novaloc® Retention Insert “clicks” into position (Fig. 14).
Demounting the Novaloc® Retention Insert
1. Apply the plunger end of the Novaloc® Mounting and Demounting Tool to the
Novaloc® Retention Insert and engage with light pressure (Fig. 15/16).
2. Remove the Novaloc® Retention Insert from the Novaloc® Matrix Housing us-
ing a slight rotational movement (Fig. 17).
3. Use the special indentation in the handle of the Novaloc® Matrix Housing
Extractor (Fig. 1) to remove the Novaloc® Retention Insert from the Novaloc®
Mounting and Demounting Tool with a tilting movement (Fig. 18/19).
