4.4 Soldering Job

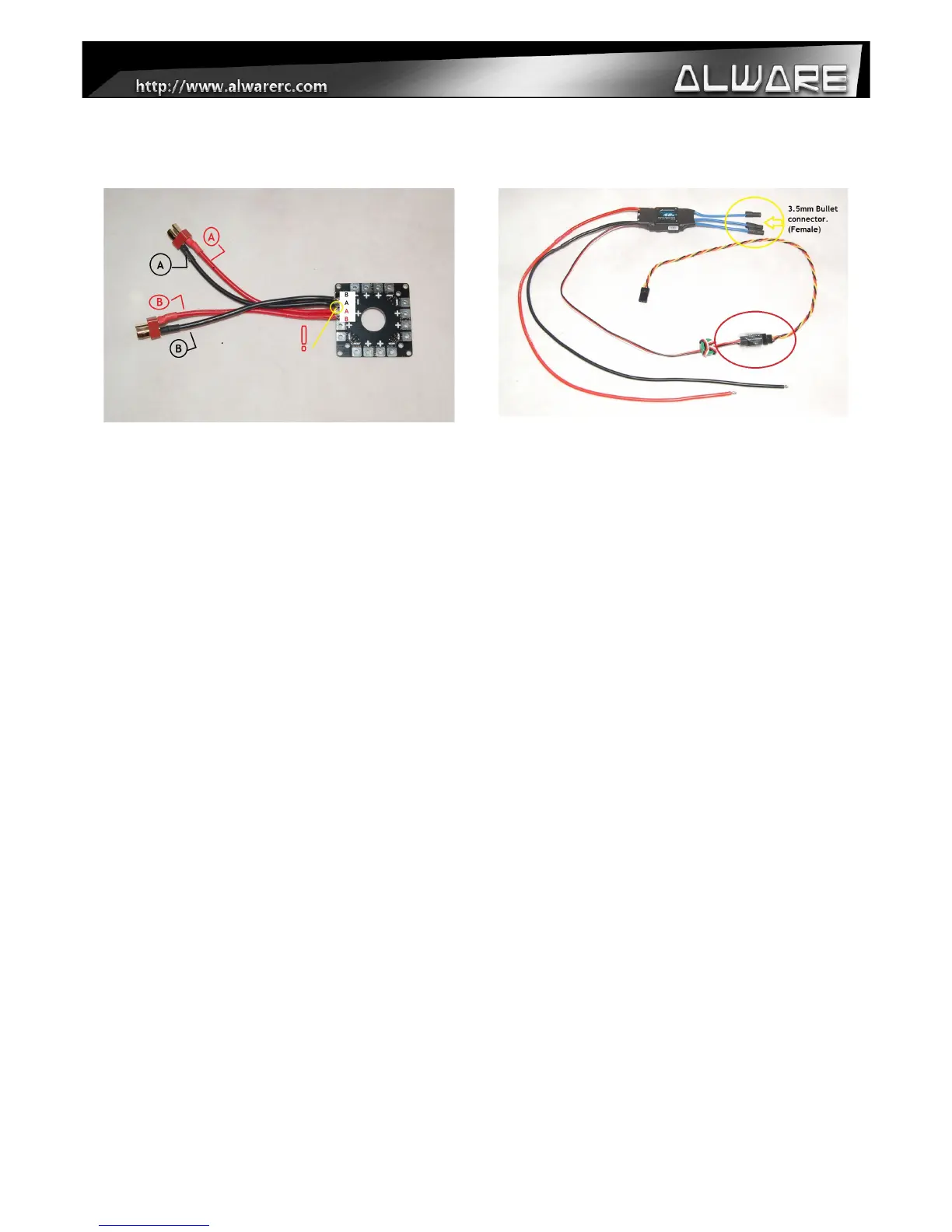

Solder 2 pairs Battery Cable to the Large Current
Power/ESC Board and connect the other end to
the Battery Connectors. (Red = +ve , Black = -ve)
Do not short circuit two polarities!!
1.) Solder Black and Red AWG wires to the ESC.
2.)Solder 3pcs 3.5mm Bullet Connectors
(Female) to the ESC.
3.)Connect Servo Extension Wire to the Signal
Connector of ESC and secure it using Adhesive
Tape.
