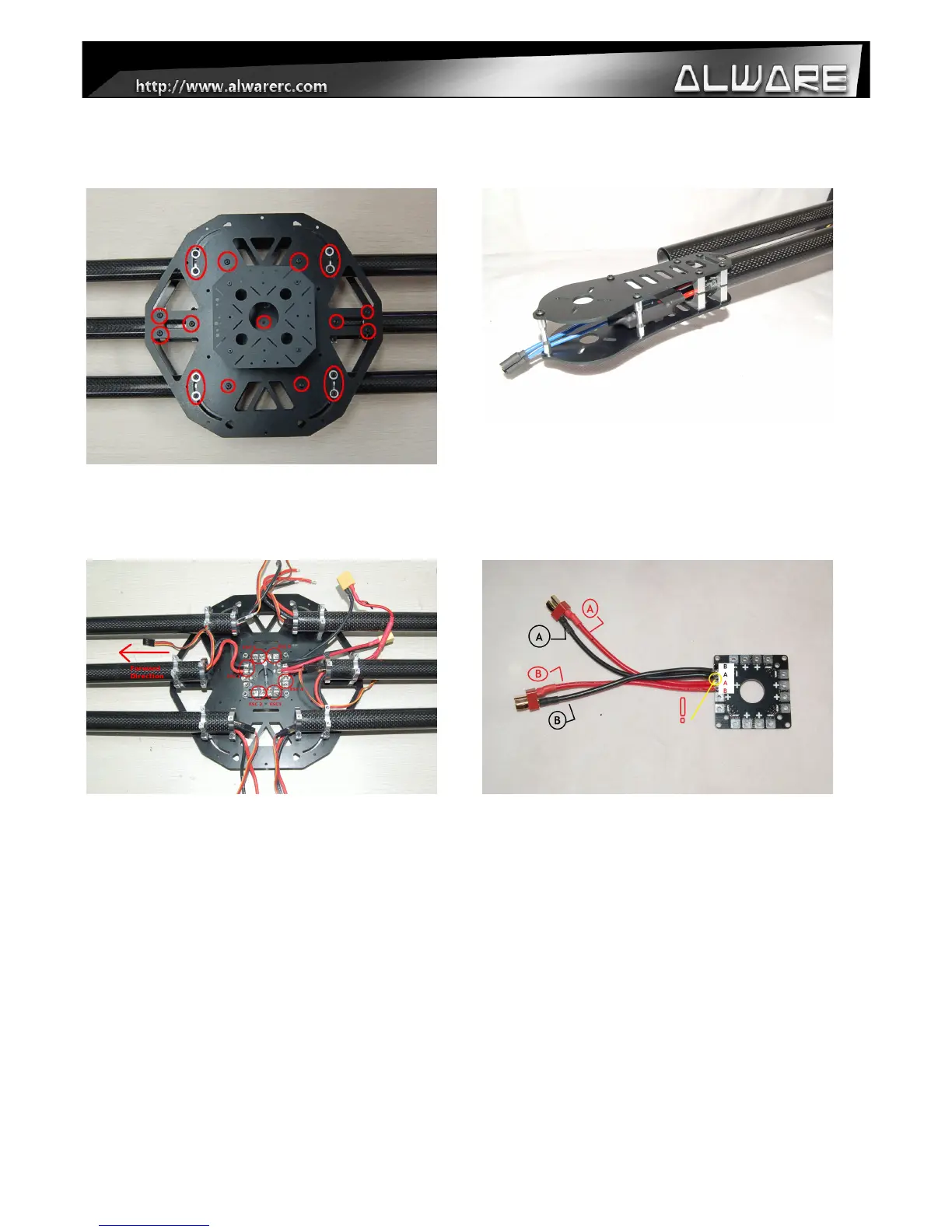

4.5 Assembly Steps – ESC and ESC board.
Step 1.
Uninstall the Upper Main Frame of Streak
800Pro by loosing 18pcs M3 Screws as
shown above.
Step 2.
Insert the Battery Power Cable and Signal
Wire of the ESC into the Carbon Boom Arm.
Same for all 6pcs ESCs.
Step 3.
Solder the Battery Power Wires of the ESC
to the ESC Board. (Red wire = +ve , Black
wire = -ve)
Step 4.
Solder 2 pairs Battery Cable to the Large
Current Power/ESC Board and connect the
other end to the Battery Connectors. (Red =
+ve , Black = -ve) Do not short circuit two
polarities!!
12
