Streamax X5-E0804 - Power Input Interface

User Manual for X5-E0804/E0408 V2.0
For more information, please visit our website www.en.streamax.com

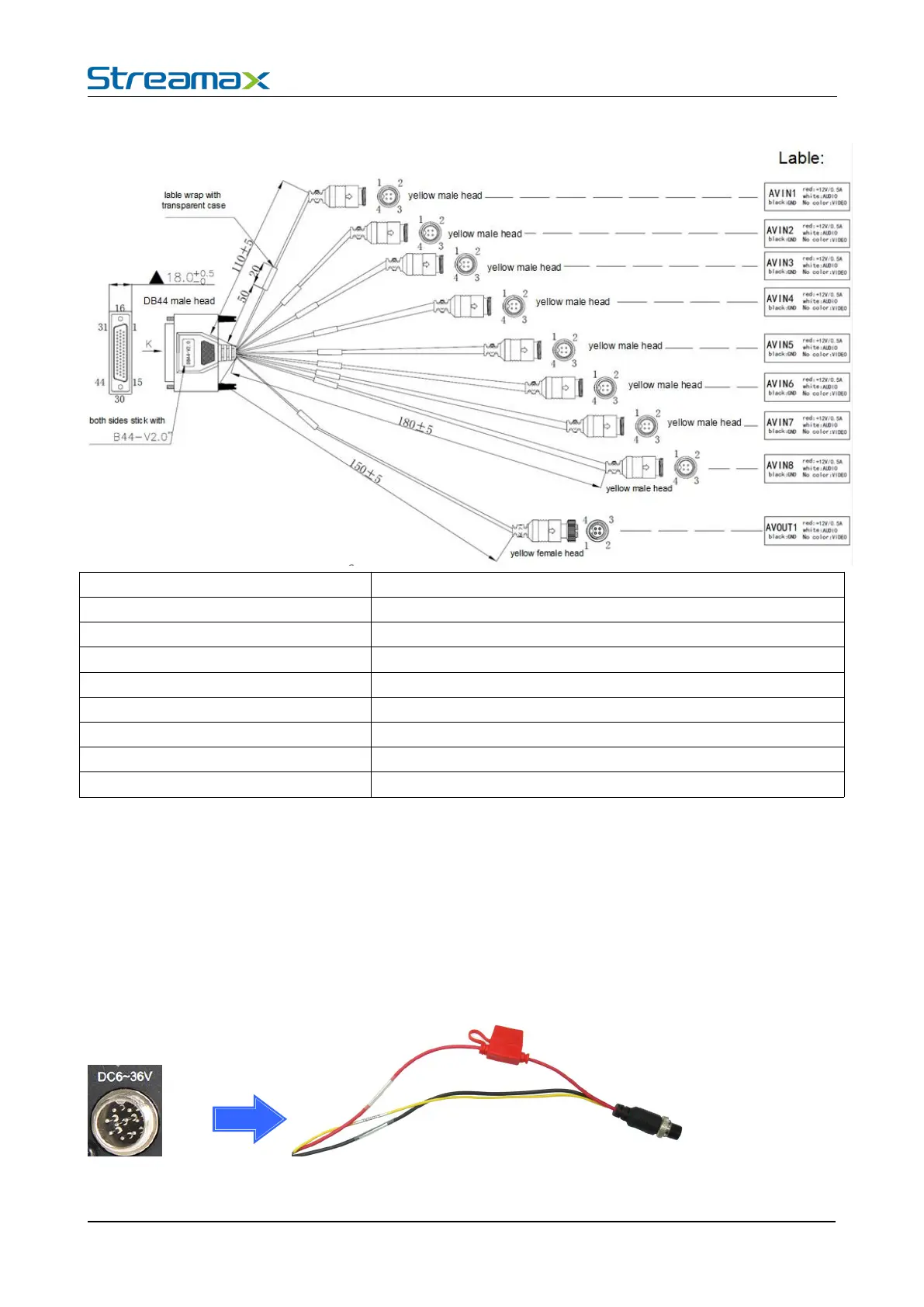

12 - 44
Signals:
AV IN1 (black:GND)
red:+12V/0.5A,white:AUDIO,no color:VIDEO
AV IN2 (black:GND)
red:+12V/0.5A,white:AUDIO,no color:VIDEO
AV IN3 (black:GND)
red:+12V/0.5A,white:AUDIO,no color:VIDEO
AV IN4 (black:GND)
red:+12V/0.5A,white:AUDIO,no color:VIDEO
AV IN5 (black:GND)
red:+12V/0.5A,white:AUDIO,no color:VIDEO
AV IN6 (black:GND)
red:+12V/0.5A,white:AUDIO,no color:VIDEO
AV IN7 (black:GND)
red:+12V/0.5A,white:AUDIO,no color:VIDEO
AV IN8 (black:GND)
red:+12V/0.5A,white:AUDIO,no color:VIDEO
AV OUT1 (black:GND)
red:+12V/0.5A,white:AUDIO,no color:VIDEO
Remarks:
a. From AV IN1 to AV IN8, the former one is 10mm longer than the latter one.
For example, if AV IN1 is 110mm, then AV IN2 is 120mm
b. From AV IN1 to AV IN8, all of them adopt 4 PIN aviation head (RS765-4), AV OUT1 adopts aviation
female head (RS765-4)
c. A/V wire needs to adopt shielding cable, specification is (2*24AWA+1*26AWG+1C26S) OD4.5；the
GND wire of shielding cable needs to connect to the cover of aviation plug
5. Power input interface
9 pin aviation power input wire
