User Manual for X5-E0804/E0408 V2.0
For more information, please visit our website www.en.streamax.com

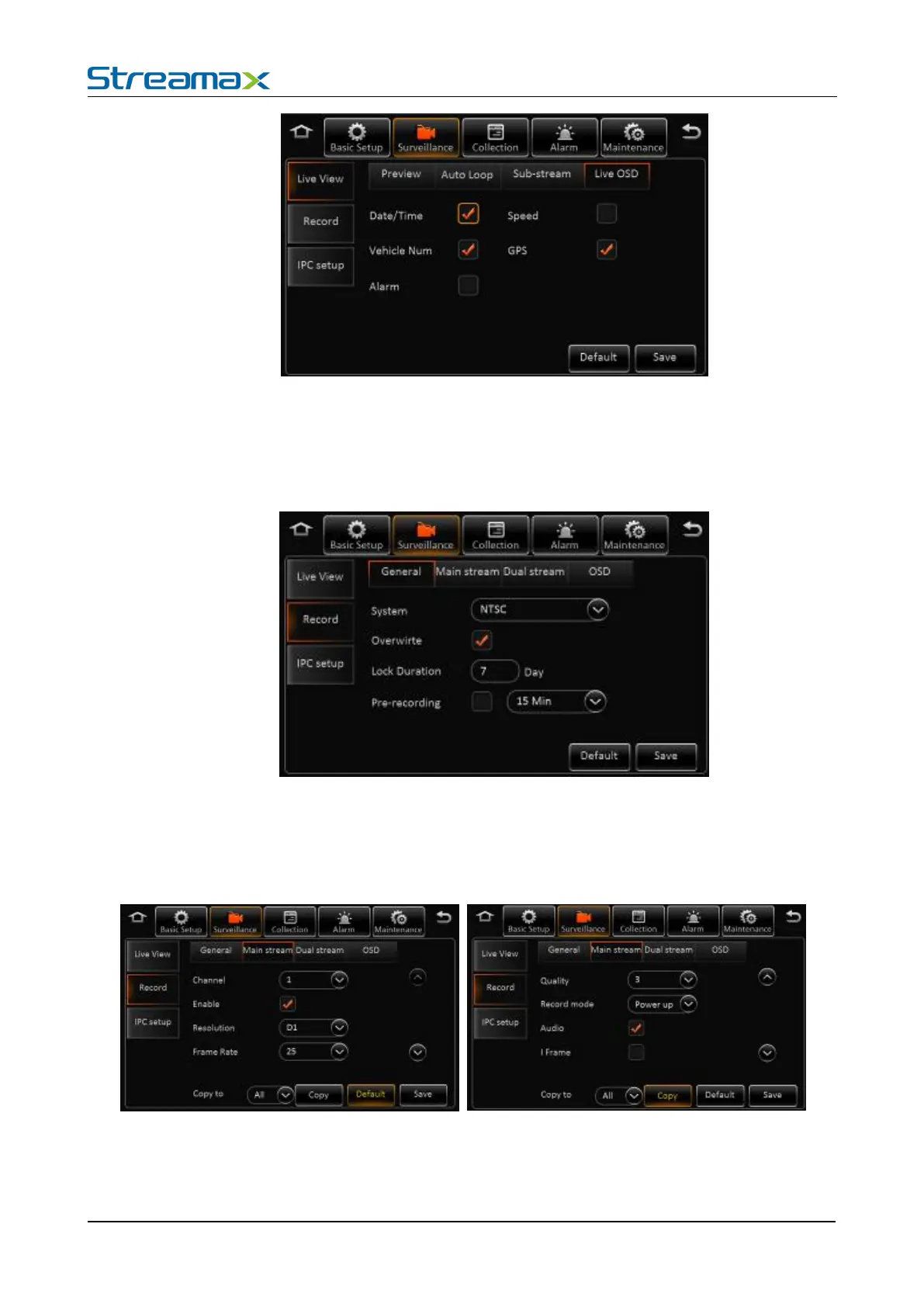

Display the information on screen, default is only the time, and the position can not be set.
Surveillance-->Record
Record Setting Interface:
Video type: Default is PAL, NTSC optional
Overwrite: Enable the HDD to be overwritten when it is full
Lock file retention: Protect the record file to be deleted by fault, default is 7 days
Pre-recording: Pre-record before the alarm happens. Default is 15min, 0-60min optional.
Main Stream Setting Interface:
Channel: 1-20 channels can be chosen and set the record parameters
Enable: Enable the main stream record function
Resolution: The analog channel supports D1/HD1/CIF/WD1/WHD1/WCIF while the digital one
