User Manual for X5-E0804/E0408 V2.0
For more information, please visit our website www.en.streamax.com
13 - 44

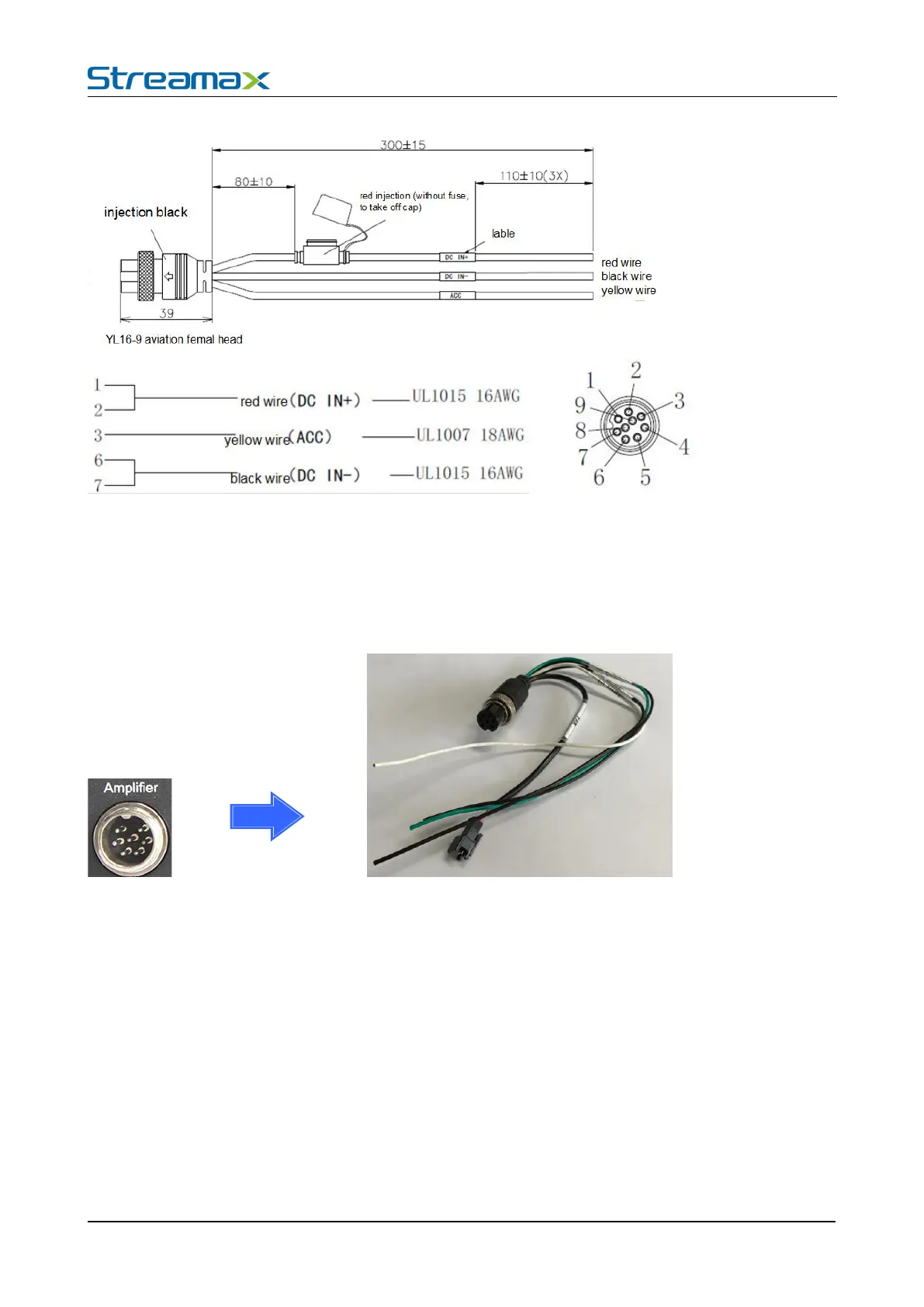

Signal:
Remarks:
a. After short circuit, PIN 1 and PIN 2 of aviation head connect with red wire
b. PIN 3 of aviation head connects with yellow wire
c. After short circuit, PIN 6 and PIN 7 of aviation head connect with black wire
6. Amplifier port
7 pin aviation amplifier output wire
Signal:
