Strobel 310D-R - Setting Machine Positions

14 BA_310D-R_3100D-R_A16-3_180117_en

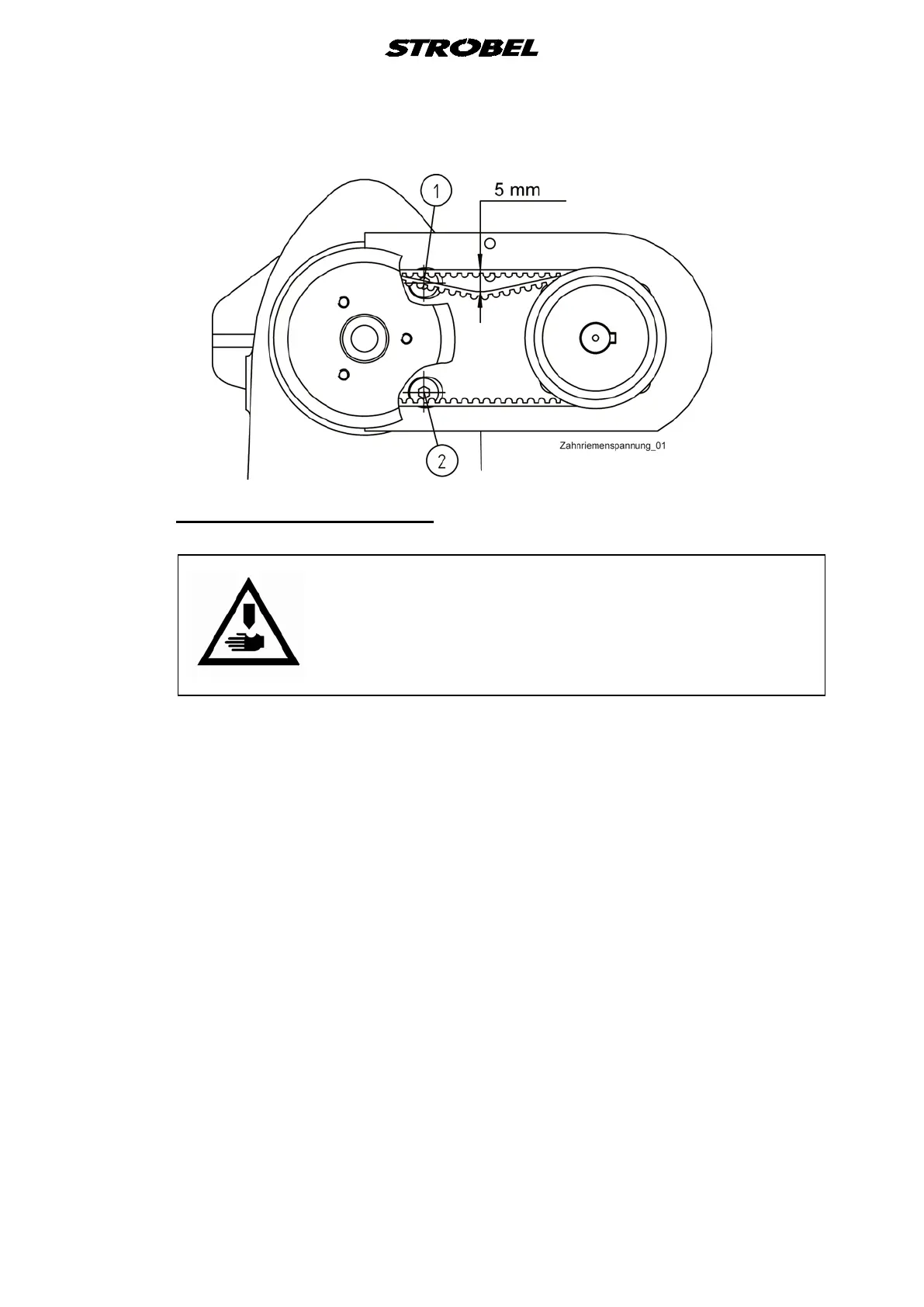

Fig. 4
3.4.2 Positions of the machine
CAUTION! Danger of injury!
Danger of pulling in parts of clothing and of hair and danger
of crushing fingers and stitching fingers with needles!
When checking positions with switched-on machine keep
fingers and hands away from moving parts.
Machine with or without pneumatic:
The machine requires a needle position and depending on the sewing drive,
possibly also a reference position.
Reference position:
The reference position must be set in such a way, that the point of the
needle in direction of the insertion stitch closes with the right (inner) edge
of the needle slide plate.
Needle position (with stop in and outside the seam:
The needle position needs to be set in such a way that when the machine
is at standstill and the lifting is open the tip of the needle points in the
direction of the right stitch and the plunger, feed dog, and presser plate
are at one level (the position is located at about 8 mm after the upper
needle turning point).
Notes for sewing drives which have two needle positions:
The needle position mentioned above is position 2 at the sewing drive.
The position 1 at the sewing drive should be set in such a way that when
the machine is at standstill the tip of the needle stands about
3 mm in the direction of the left stitch after the lower needle turning point.
