5 Operating the sewing machine
CAUTION! Danger of Injury!
Take sufficient care during sewing and observe the sewing
area!
Otherwise there is a danger of injury through crushing and
needle through-stitches.
For machines with 2 pedals: push down the left pedal fully increases the top
feed length (multi-width take-up). With this configuration, motor control is taken
over by the right pedal.
To vent the machine, a pneumatic venting system can be supplied instead of
the knee lever.
When releasing the pedal to switch on the motor, the machine moves to its
position and pneumatic venting takes place.
Pressing the pedal forwards closes the vent and the machine starts to sew.

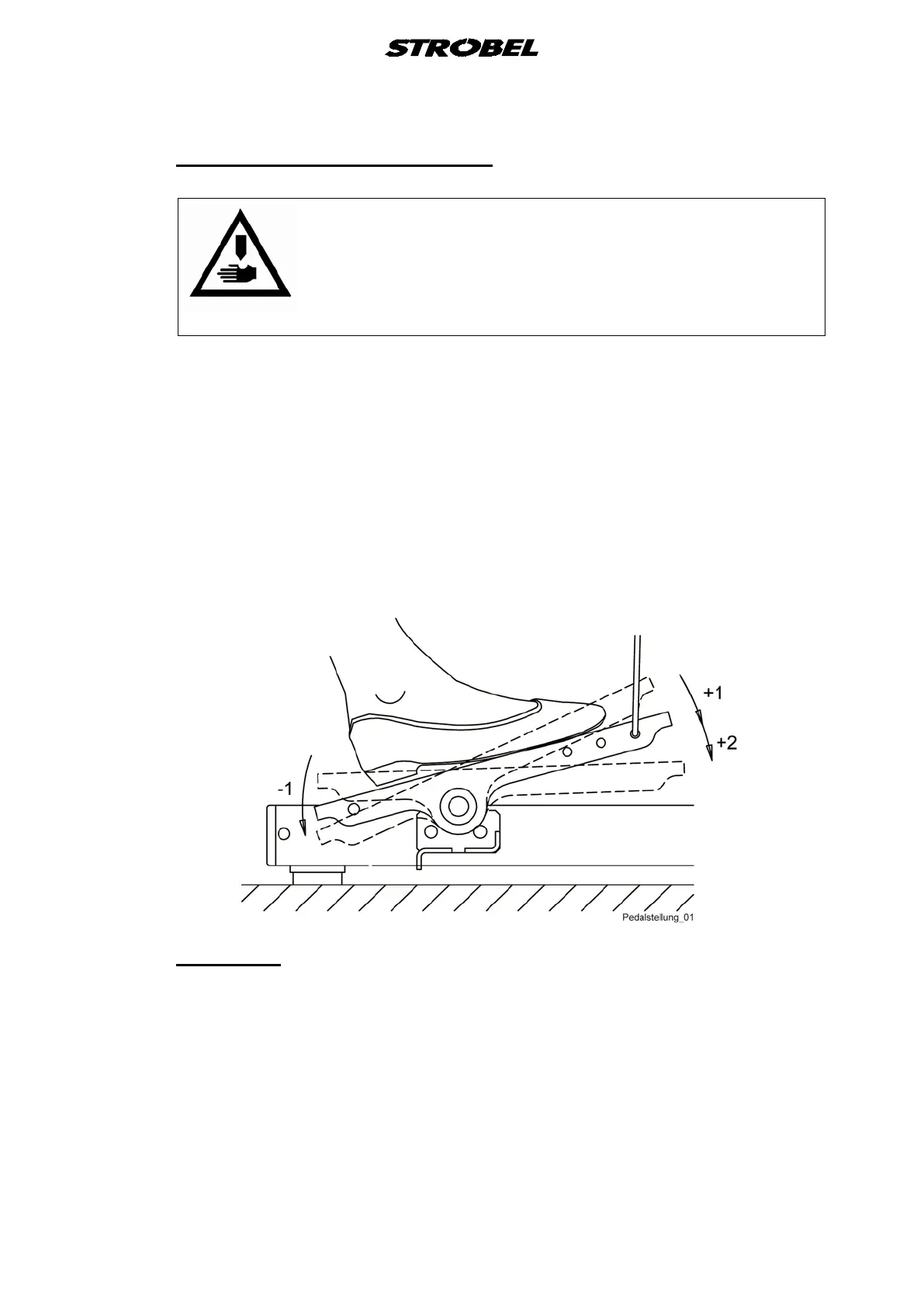

Fig. 15
5.1 Switch-on
Switch on the main switch on the right underneath the table plate.
With pneumatic lifting, connect the service unit to the compressed air network
(10 bar) or connect the compressor and regulate to 5 – 6 bar.
The lifting is now opened and the sewing machine is ready for operation.
