4.6
Class 560-11 only
Digital stitch depth display (optional extra) (Fig. 8)
If a digital stitch depth display is mounted, the plunger height is indicated
digitally, thus facilitating the work considerably, especially when the material
thickness changes frequently, because the required plunger height can be reset
easily.
Electric current is supplied through a 9 V battery in the housing. To avoid
premature discharging of the battery it is recommended to switch off the display
by means of the flip switch at the housing during break times and when
finishing the work.
The units digit indicates one hundredth of a mm, the hundreds digit indicates a
full turn of the regulating knob.
In general: low value - thin material
high value - thicker material
Stitch depth adjustment by 1 digit (= 1 place of the units digit) corresponds to a
plunger height adjustment of 0,01 mm.

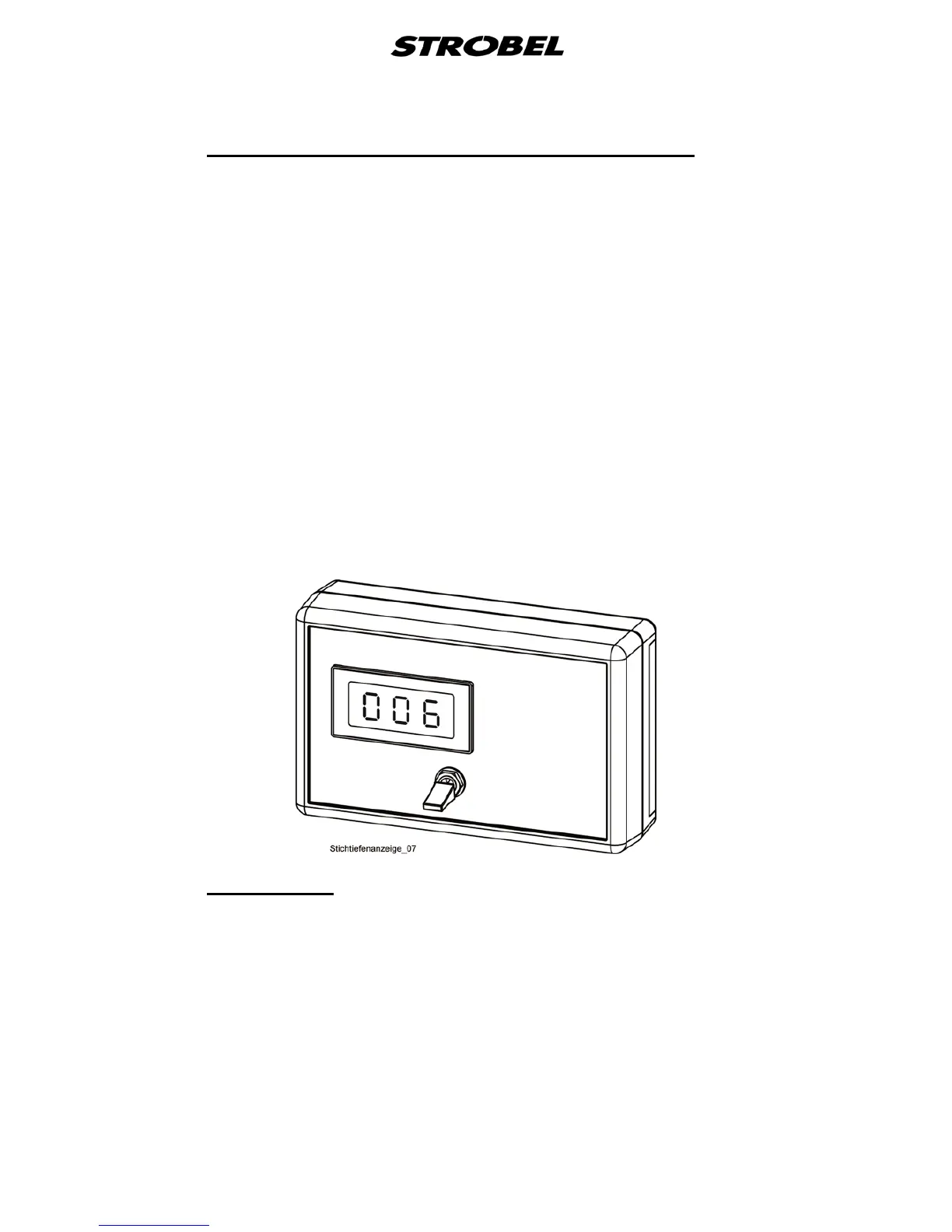

Fig. 8
4.7
The machine is equipped with a motor.
Sewing drive
Please see attached operating instructions where you will find information and
instructions for programming the control including the motor speed setting.
