The machine is lifted pneumatically. The sewing program is executed
automatically.
Operating the machine
ATTENTION! Danger of bodily injuries!
Please observe the sewing range carefully during sewing.
Otherwise danger of finger bruises and needle
throughstitches.
5.1
Switch on control paneel resp. main switch on the right hand side under the
table top, the control lamp luminous.
Switching on (Fig. 1)
5.2
To insert the material the plunger is lifted.
Inserting and removing the material (Fig. 9)
By lightly pressing the pedal down the plunger is brought with plunger plate
upwards, i.e. the material is pressed onto the needle plate.
By lifting the plunger again (heeling the treadle) the material can be placed
correctly.
Remove the material after the sewing program (see point “5.3.1 Sewing
process (Fig. 9)”).

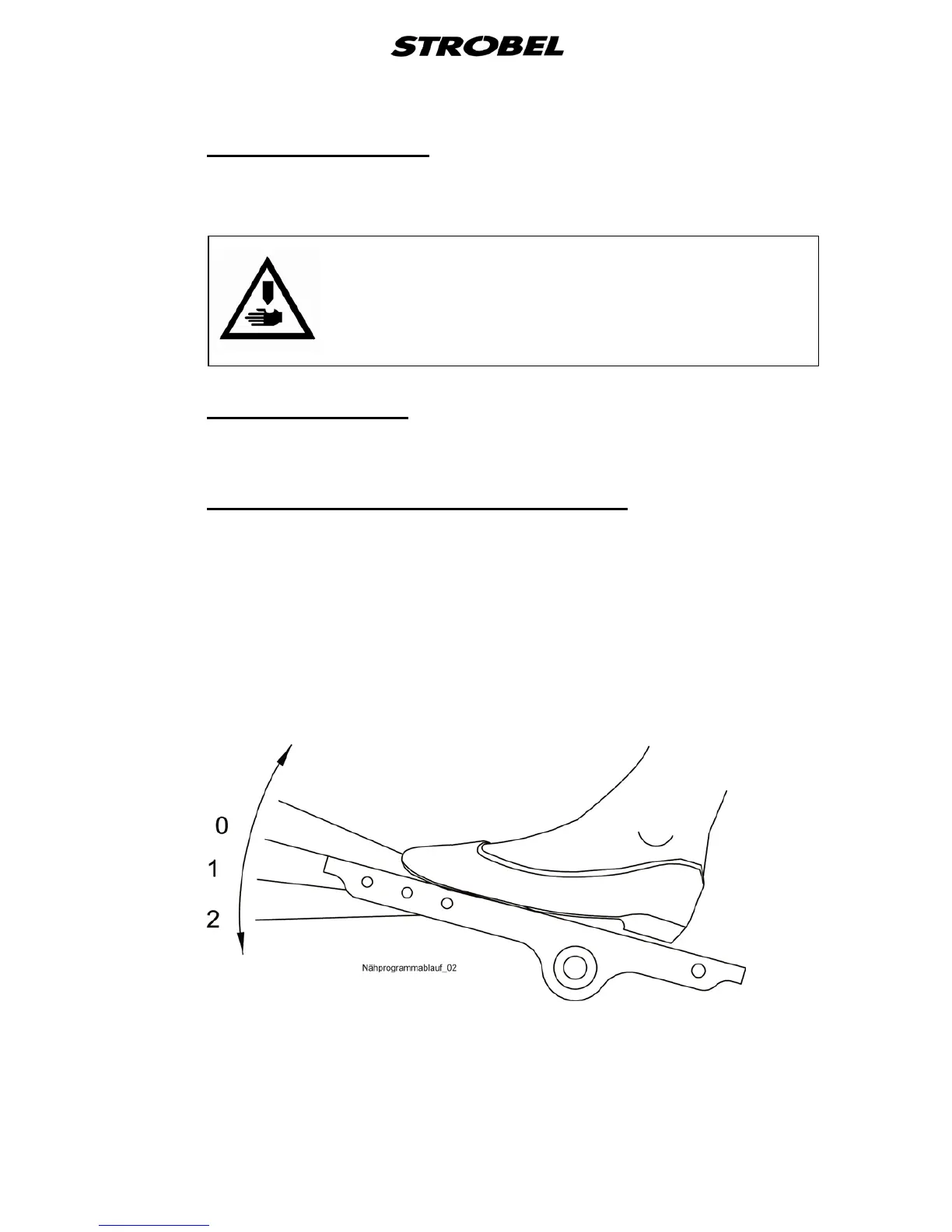

Fig. 9
