Strobel VEB100 Series Mechanic's Instructions

259.10.37

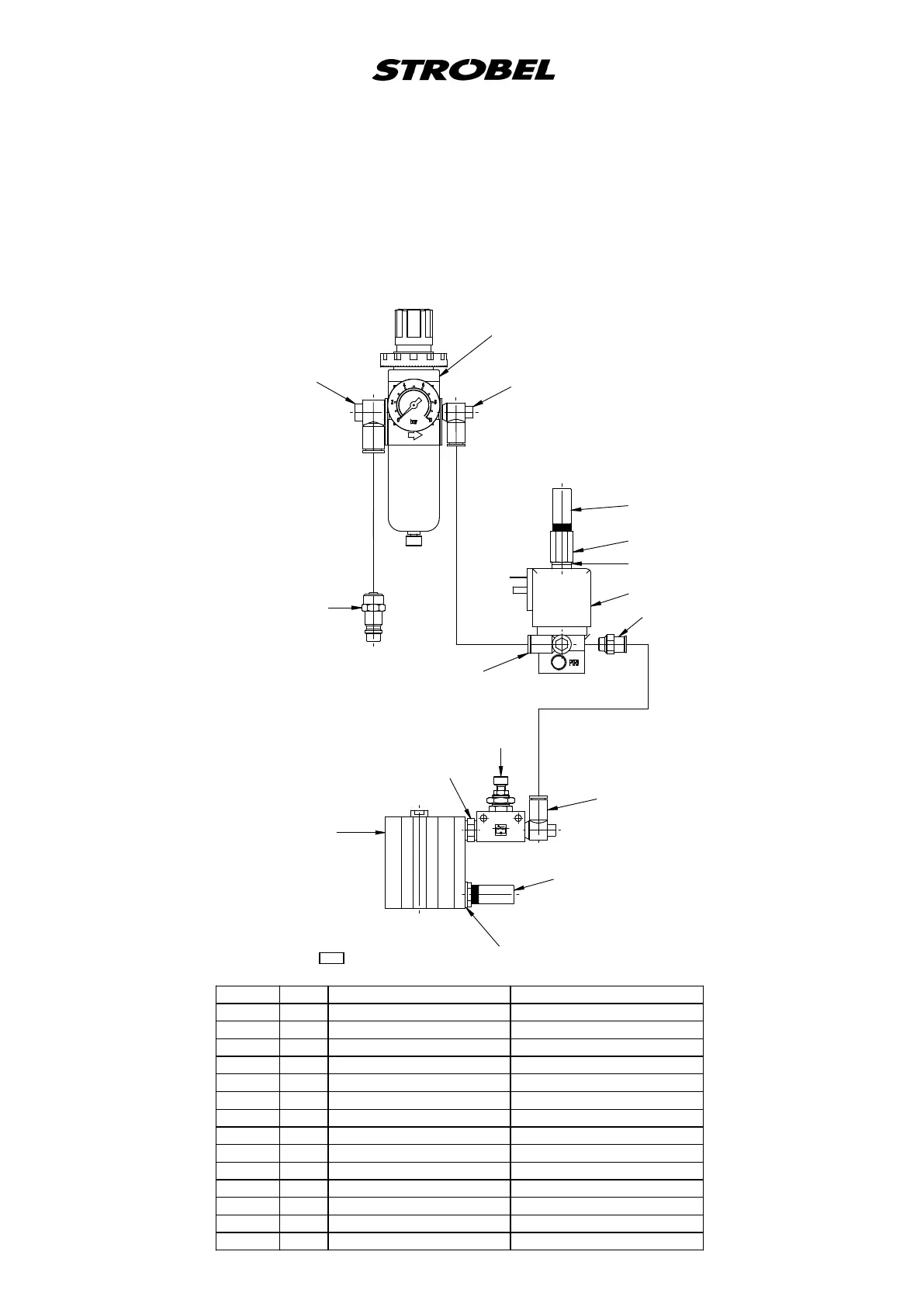

Pneumascher Bauschaltplan Kl. allg. mit pneum. Lüung
(Ea-DC1200/DC1210)
Pneumac construcon circuit diagram cl. gen. with pneum. liing
(Ea-DC1200/DC1210)
B
A
A
P (R)
R
1 V 1
Wartungseinheit
service unit
Magnetventil
solenoid valve
Lüftung
lifting
2x 233.0713 (nur Kl. 170 / only Cl. 170)
193.0530
193.0658
293.0469
293.0469
293.0470
293.0850
293.0850
293.0852
293.0975
297.0170
298.0077
298.0179
233.0713 2 Reduziernippel R1/4-R1/8 (nur Kl. 170) reduction nipple R1/4-R1/8 (only Cl. 170)
293.0469 2 Schalldämpfer R1/8 silencer R1/8
293.0470 1 Doppelnippel R1/8 nipple R1/8
193.0473 950 PA-Schlauch Ø6 PA hose Ø6
193.0478 3000 PA-Schlauch Ø8 PA hose Ø8
193.0530 1 Dichtungsring R1/8 gasket R1/8
193.0658 1 Muffe R1/8 bushing R1/8
293.0850 2 L-Einschraubanschluss R1/8-6 L-threaded connection R1/8-6
293.0852 1 G-Einschraubanschluss R1/8-6 threaded connection R1/8-6
293.0975 1 Wartungseinheit service unit
297.0170 1 Schnellverschlusskupplung Ø8 coupling Ø8
298.0077 1 Drosselrückschlagventil R1/8 throttle non-return valve R1/8
298.0179 1 3/2 Wege-Magnetventil 3/2-solenoid-way valve
298.0546 1 Kurzhubzylinder Ø32x25 (Kl. allg.) short stroke cylinder Ø32x25 (Cl. gen.)
298.0680 1 Kurzhubzylinder Ø50x25 (Kl. 170) short stroke cylinder Ø50x25 (Cl. 170)
(293.0841)
(293.0850)
193.0478 3000 lg
O
8
193.0473 500 lg
O
6
193.0473 450 lg
O 6
Kl. allg. 298.0546
Cl. gen.
Kl. 170 298.0680
Cl. 170
195.0514
