Strobel VEB100 Series Mechanic's Instructions

259.00.65

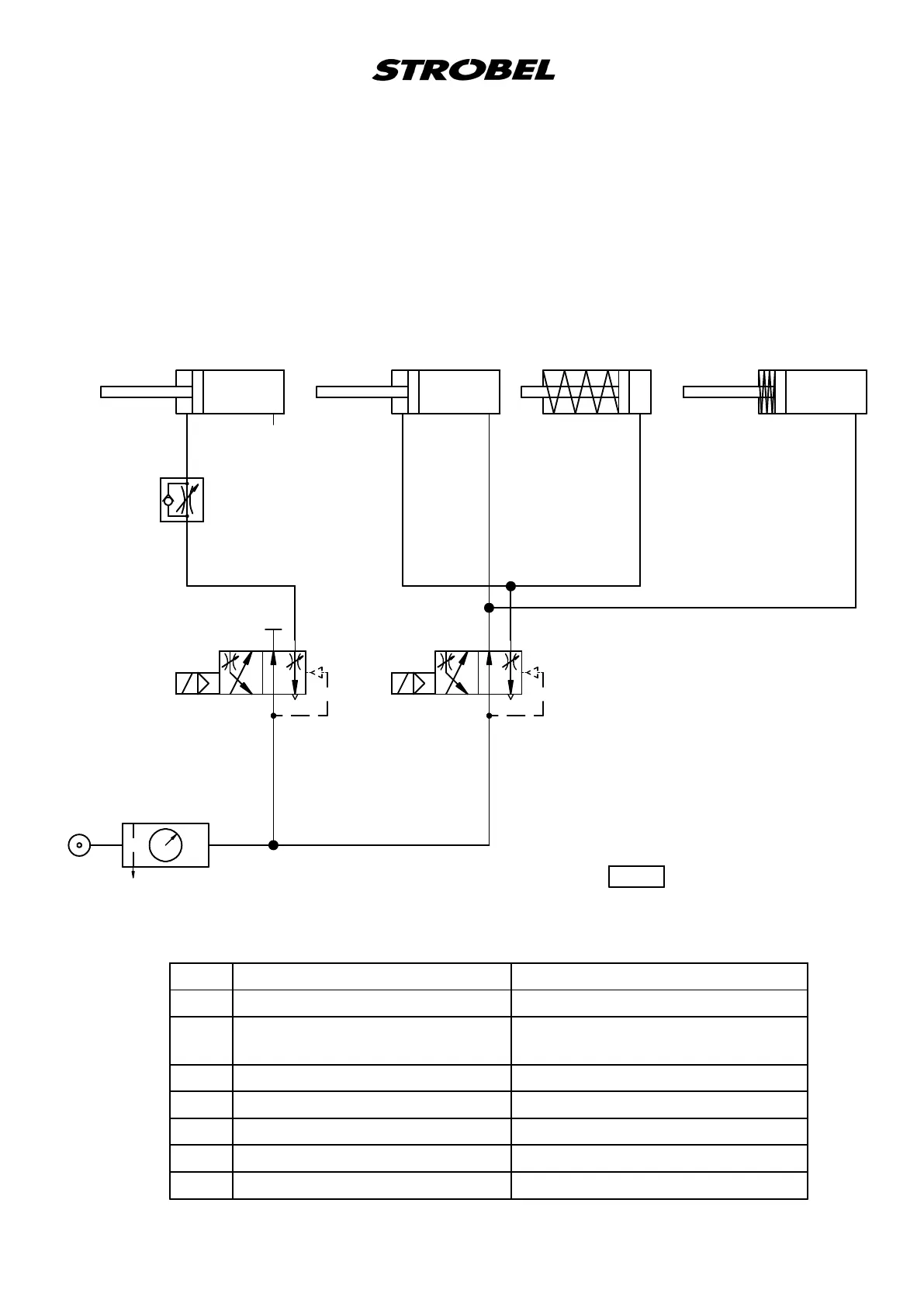

Pneumascher Schaltplan Kl. VEB100-1, -2, -2W, VEB200-1, -2
mit Nahtsicherung
Pneumac circuit diagram cl. VEB100-1, -2, -2W, VEB200-1, -2 with seam lock
(Ea-DC12xx)
0 Z 1 Wartungseinheit Service unit
1 V 1 4/2-Magnetventil "Lüftung" 4/2-solenoid-way valve "lifting"
1 V 2
4/2-Magnetventil "Zwischenlüftung,
Transporteur,Fadenbremse"
4/2-solenoid-way valve "intermediate
lifting, feed, thread brake"
1 V 10 Drosselrückschlagventil "Lüftung" One-way flow restrictor "lifting"
1 A 1 Zylinder "Lüftung" Cylinder "lifting"
1 A 2 Zylinder "Zwischenlüftung" Cylinder "intermediate lifting"
1 A 3 Zylinder "Transporteur" Cylinder "feed"
1 A 4 Zylinder "Fadenbremse" Cylinder "thread brake"
195.0515
0 Z 1
6bar
10bar max
1V10
1A1
1V1
B
P
R
A
1V2
B
P
R
A
1A2 1A3 1A4
