STROETER SC 750/5 - Mechanical measures

Standard user guide
V51-00-V19 eng
-5- Rights to changes reserved

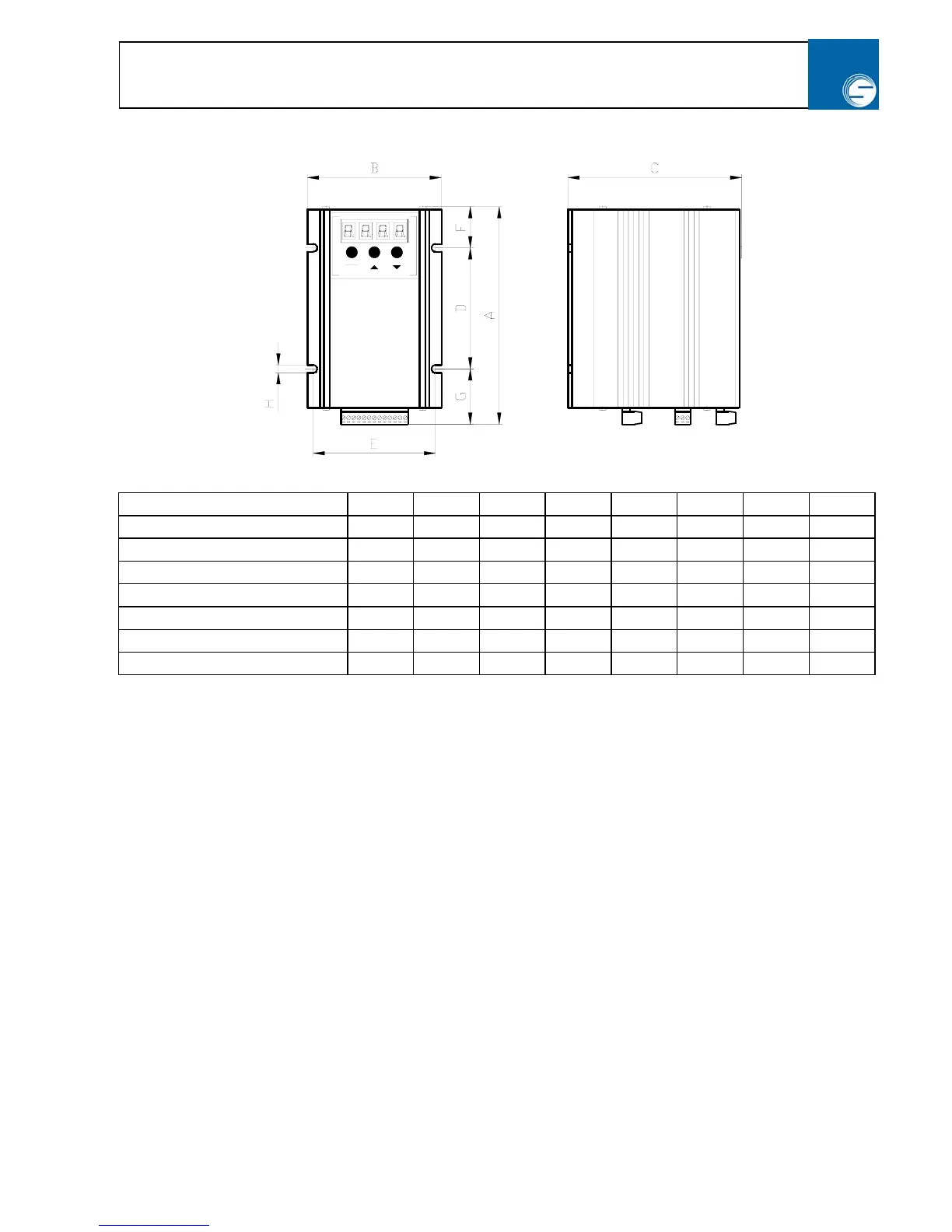

Mechanical measures:
Type:
A B C D E F G H
SC-750/5
163 104 133 90 96 30 43 6
SC-1500/5 and SC3-2200/8
298 104 133 140 96 86 72 6
SC3-1100/5
268 104 133 140 96 56 72 6
SC3-4000/5
298 186 155 200 176 60 37 6
SC3-5500/5 and SC3-7500/5
387 186 155 200 176 105 82 6
SC3-11000/5
392 186 155 200 176 105 87 6
SC3-22000/5
492 186 155 300 176 105 87 6
UNIVERSAL AC MOTOR CONTROLLER
SPEED-COMMANDER VECTOR DIGITAL
STORE
STEP DOWNUP
