NEW INSTALLATIONS
INSTALLATION GUIDE
Where there is no current installation please follow the following installation
procedure:
1. Ensure all mains supplies relating to the installation are isolated.

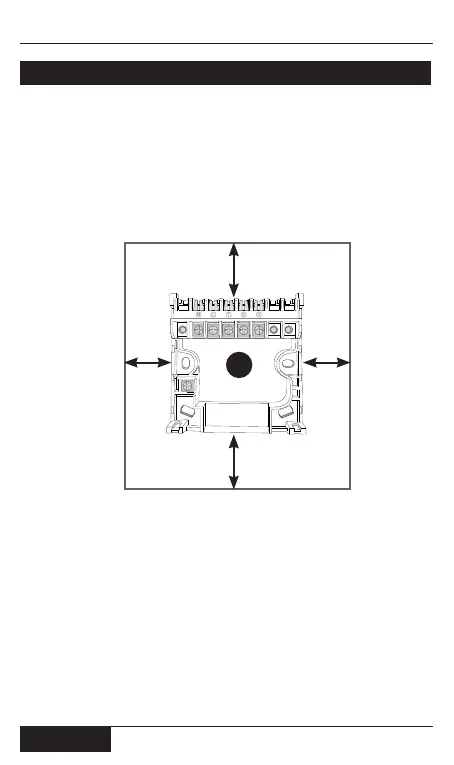

2. Prepare the area for the installation of the new backplate, with the
required minimum clearances all the way around the backplate and
the entry point for the wiring through the middle of the backplate as
shown below:
3. Ensure that in the suitable position that the back of the receiver once
axed to the backplate is not exposed, and that the surface is ideally
non-metalic, and suitable for wall xings that will rmly support the
receiver and prevent accidental removal.
4. Once the suitable position has been found using a pencil mark
the xing positions on the wall, and use a suitably sized drill bit for
the wall plugs (care should be taken to ensure you are not drilling
through any utilities such as gas, water, or electric. Once drilled and
plugged secure the wall plate in position with the supplied screws.
5. Wire the backplate in accordance with “WIRING DIAGRAM”.
6. Follow the “CONTROLLER COMMISSIONING”.
100mm
100mm
40mm40mm
Cable Entry
