23

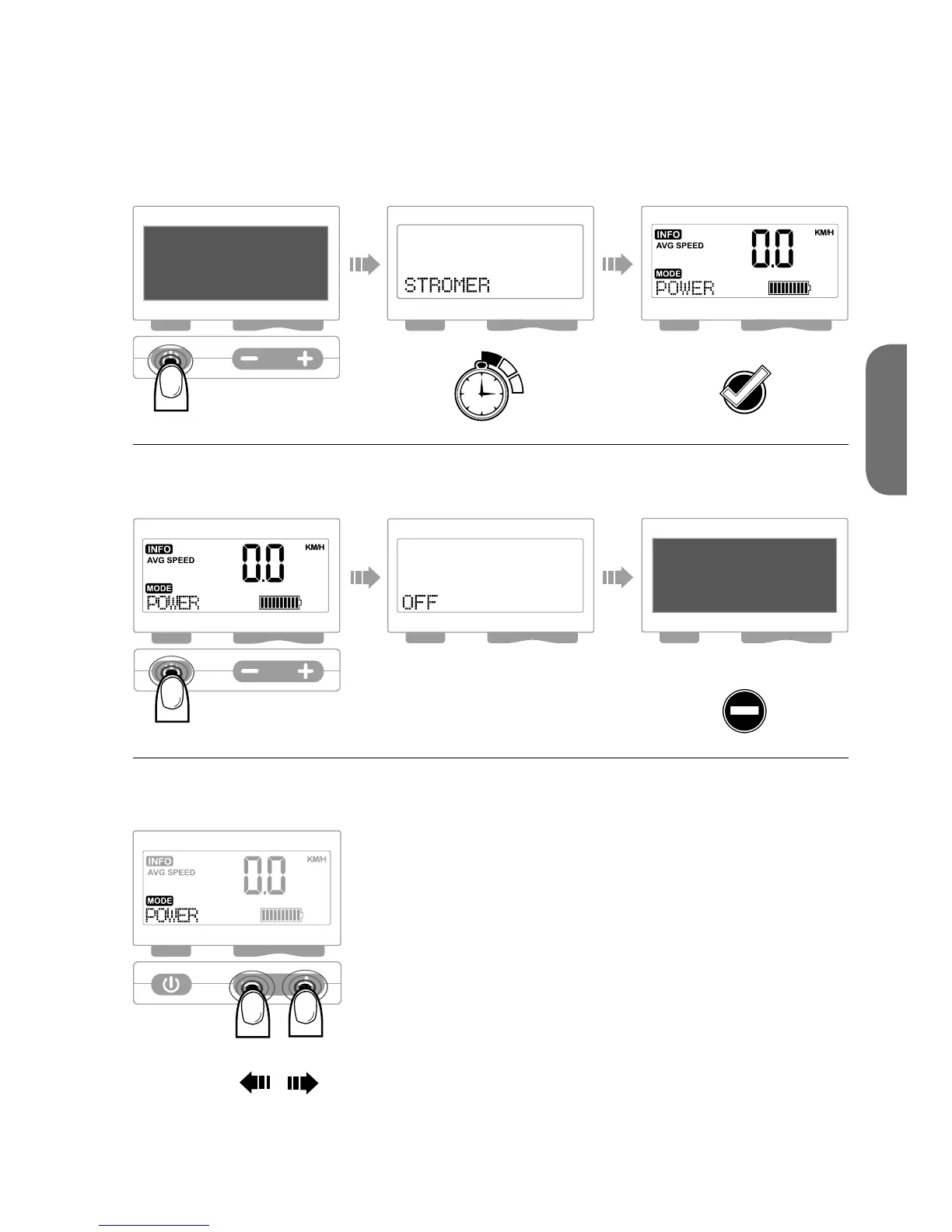

1. sWitch on stroMer
Important note: When switching on, the pedal must be completely free of load.
2. sWitch oFF stroMer
3. select suPPort or recuPeration MoDe
interFace OPERATION
2 sec.
2 sec.
ready
2 sec.
off
MANUAL RECUPERATION MODE
The energy recovery is normally activated upon braking.
It can also be activated manually by selecting the mode.
Select a «Recup-Mode» to recover energy and thereby
brake electrically.
SUPPORT MODE
The Stromer has four different modes:
1 – Eco (150%), 2 – City (200%), 3 – Tour (250%)
and 4 – Power (300%)
When idling (Zero mode), nothing is shown in the mode
display and the motor does not provide any support.
back continue
english

Other manuals for Stromer ST1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Stromer ST1 and is the answer not in the manual?

Stromer ST1 Specifications

General IconGeneral
BluetoothYes
Motor power670 W
Brake system-
Luggage rackRear
Torque (max)35 N⋅m
Product colorBlue
Autonomy (max)180 km
Number of speeds9
Wheel size (imperial)27.5 \
Luggage rack maximum load22.5 kg
Maximum speed (e-bike mode)45 km/h
Charging time3.4 h
Battery voltage48 V
Battery capacity500 Wh
Distance per battery charge (pedal assist mode)90 km
Frame materialAluminum
Weight and Dimensions IconWeight and Dimensions
Weight (including battery)- g
