Strong SRT 4650 - Controls and Functions; 4.1 Front Panel; 4.2 Rear Panel

6 7

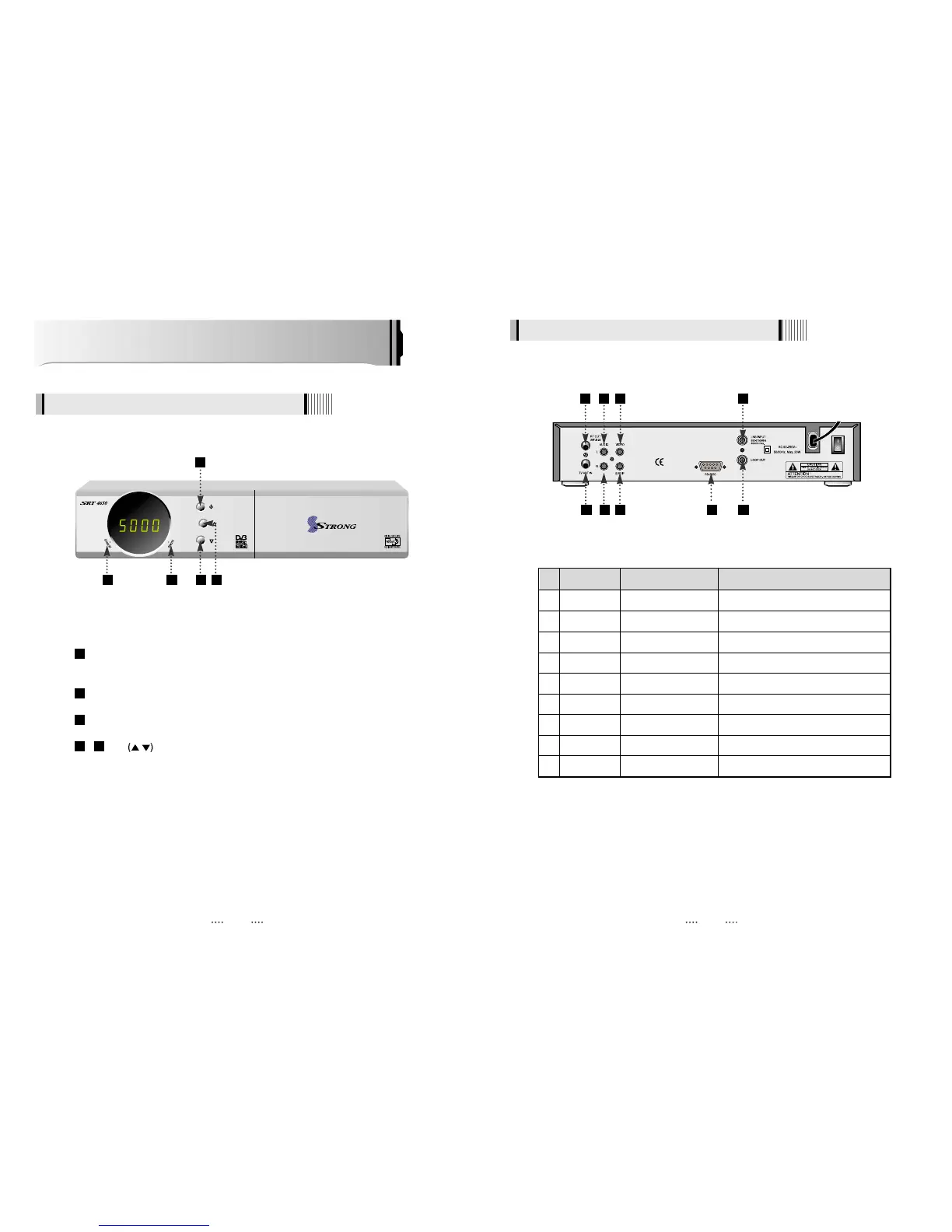

Controls/Functions
4.1 Front Panel
4.2 Rear Panel
Standby/Power on Indications Lamp : Flashes red light in ‘Standby’ mode and
shows no light in ‘Power ON’ mode.
Indication Light : Flashes when a key on the Remote Control Unit (RCU) is pressed.
Power : Switches the receiver between ‘Standby’ and ‘Power ON’ modes.
- CH.
/ : To switch channels or change the cursor position on the
application screen.
54
3
2
1
3
51 2 4
81 3 5
7 92 4 6
No. Name Connector Function
1 RF OUT UHF 21-69 IEC 169-2 male Output to TV
2 TV ANT IN IEC 169-2 female Input from terrestrial antenna
3 AUDIO L RCA cinch Left audio output
4 AUDIO R RCA cinch Right audio output
5 VIDEO RCA cinch Composite video output
6 S/PDIF RCA cinch Digital audio output
7 RS-232C DB-9 Low speed serial port
8 LNB INPUT IEC 169-24 female IF input from LNB to digital tuner
9 LOOP OUT IEC 169-24 female IF loop-through output from digital tuner
