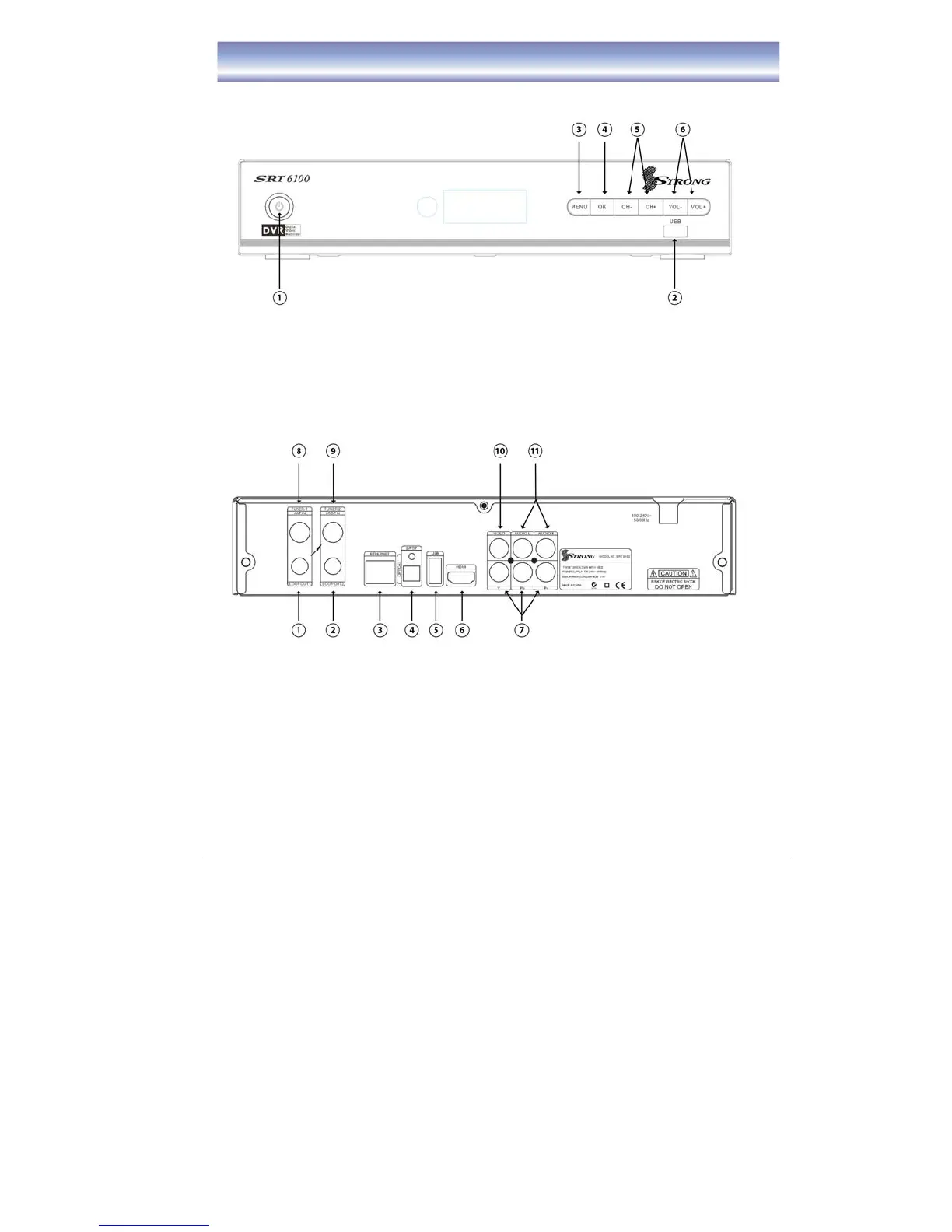

Front Panel and Rear Panel

Front Panel

1. STANDBY button: To turn ON/OFF the Standby Mode.

2. USB Slot: Connect for software upgrades.

3. MENU: To enter the Main Menu.

4. OK: To confirm the selected menu item.

5. CH-/+ : To change the channel up/down.

6. VOL-/+ : To control the level of the volume.

Rear Panel

1. LOOP OUT: Loop Out RF signal to second tuner.

2. ANT OUT: RF signal output to other reception equipment such as TV.

3. ETHERNET: Connect to network.

4. OPTICAL: Digital audio output.

5. USB: Connect for software upgrades.

6. HDMI: HDMI to connect to your TV in high definition.

7. Y/Pb/Pr: Output Y/Pb/Pr video signal to TV (support high definition output).

8. ANT IN: Ant In is where you connect the Antenna.

9. LOOP IN: RF signal input to connect RF loopback cable.

10. VIDEO: VIDEO output to connect to your TV.

11.

Audio(L/R) Outputs: Output left/right audio signal to TV or amplifier.
