START-UP AND OPERATION, CONT’D: MODEL CDR5723 LIGHTS / LIGHT SWITCH / FAN SWITCH
Start-Up And Operation, Continued

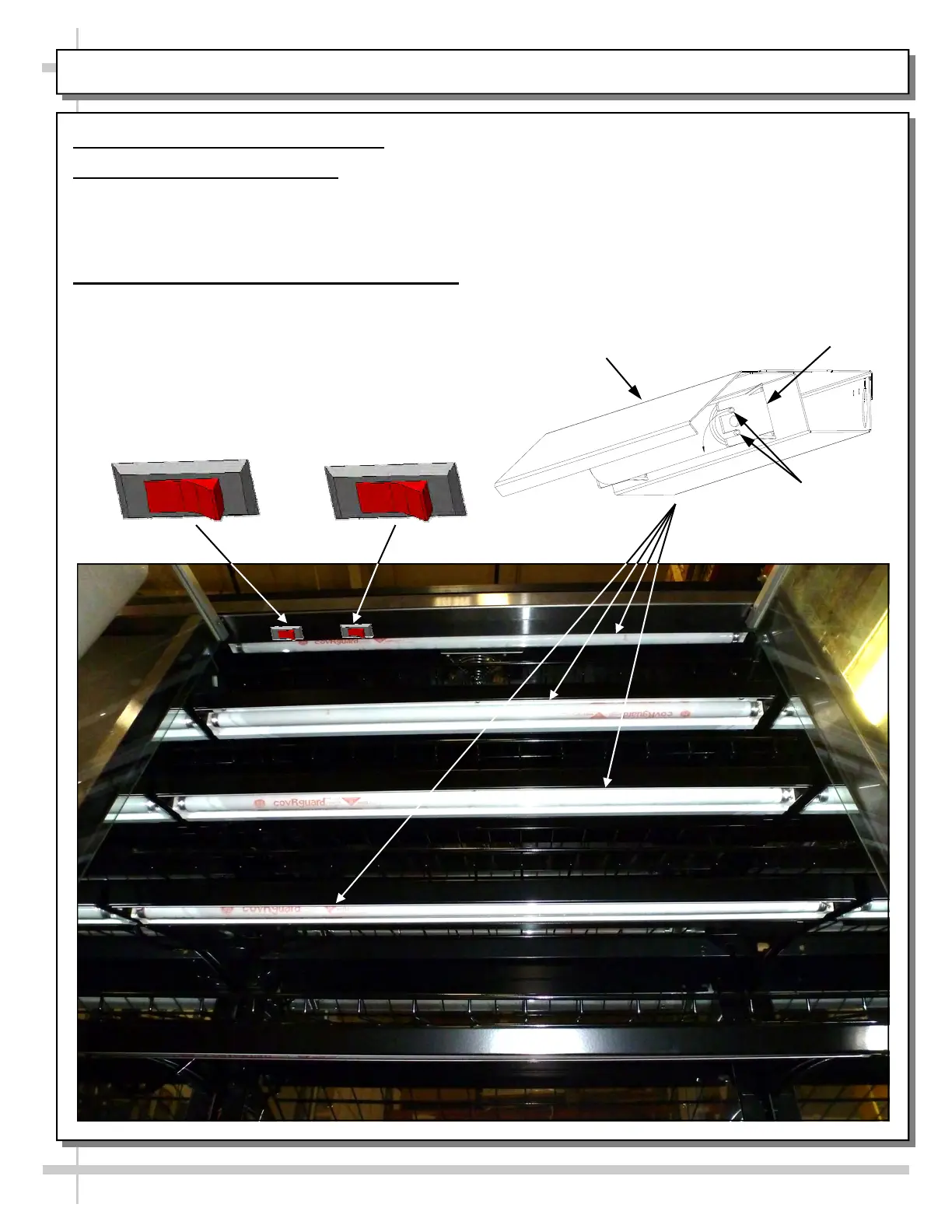

1. Under-Shelf View of Lights
 View of lights for model CDR3723 is shown at
lower-right.
 Enlarged view of light fixture is also shown.
2. Light Switch / Fan Switch [At Case Front]
 Light switch and top fan switch is at top area of
front of case.

All of the lights should come on at the same time
(with a brief flickering as bulb filaments warm up).
Light Switch
Lamp Pins
Light Socket
Light Fixture
 All fans will come on at the same time.

If lights do not turn on, check all of the raceway
plugs.

The lighting is wired in series so all lights must
be plugged in or receptacles capped in order
for the case to light.
Fan Switch
