Stretcher Operation
9
APPLYING THE BRAKE SYSTEM
NOTE
For user convenience, the brake/steer pedal is located on both ends of the stretcher.
WARNING
Always apply the caster brakes when a patient is getting on or off the stretcher. Push on the stretcher to en-
sure the brakes are securely locked. Always engage the brakes unless the stretcher is being moved. Injury
could result if the stretcher moves while a patient is getting on or off the stretcher. If brakes do not hold proper-
ly, refer to your stretcher maintenance manual for a brake adjustment procedure.
To engage the brakes on the head end, push fully down on on the left side of pedal (E) (see page 5).
To engage the brakes on the foot end, push fully down on the right side of pedal (D) (see page 5).
NOTE
Your stretcher may be equipped with optional side control brake and steer functions in addition to the standard
head and foot end controls. The side control brakes operate the same as the head and foot end versions.
They are indicated by a label on each side of the stretcher base.
RIGHT SIDE
LEFT SIDE

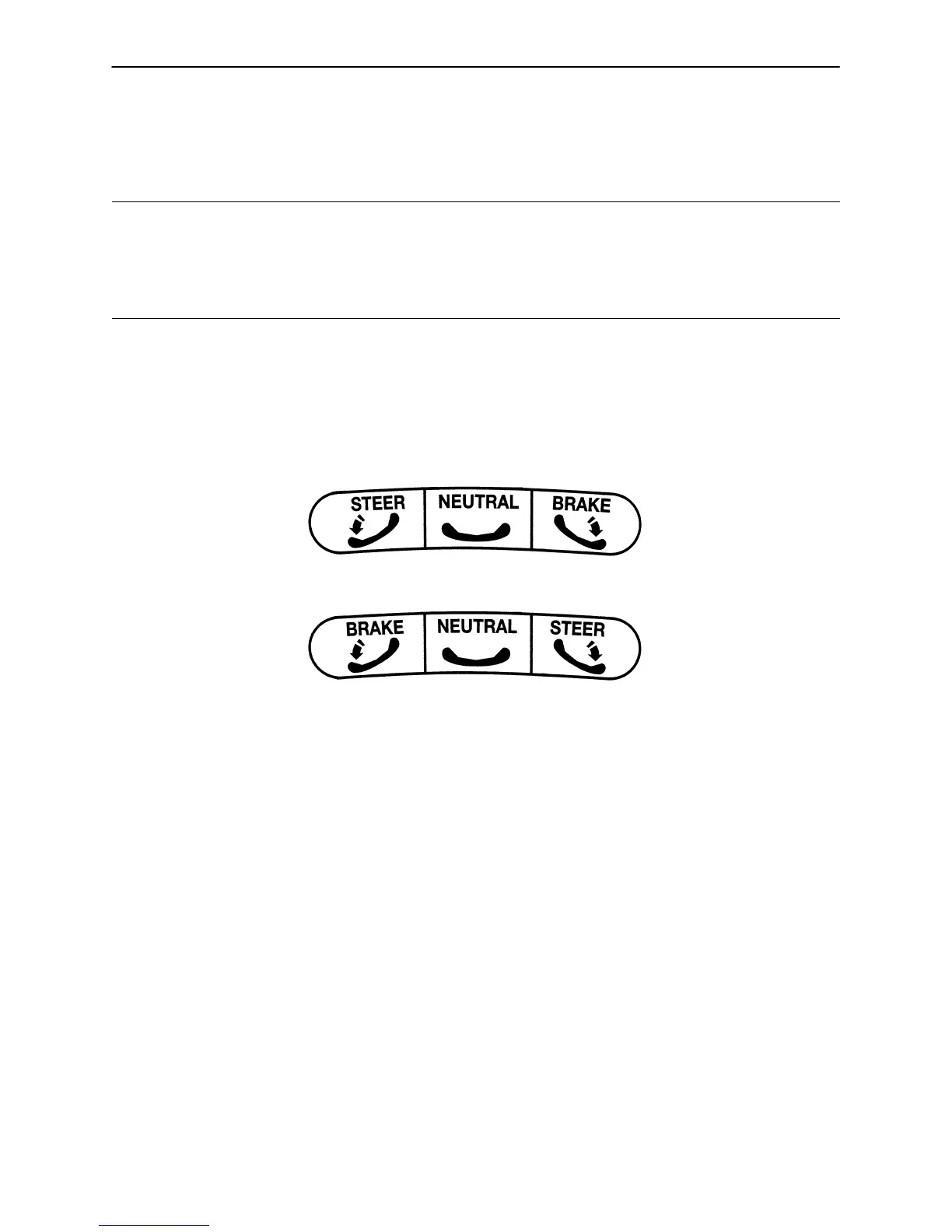

OPTIONAL SIDE CONTROL BRAKE/STEER
OPERATING DIRECTIONAL STEERING CASTER/5TH WHEEL OPTIONS
The purpose of the steer wheel and 5th wheel options is to help guide the stretcher when transporting a patient
along a straight line and also for pivoting at corners.
To engage the steer wheel/5th wheel, push the proper side of the brake/steer pedal to the full down position.
NOTE
Stretchers cannot be equipped with both steering caster and fifth wheel options. The choice was made at
the time the stretcher was purchased.
The steer wheel is located at the foot end of the stretcher on the patient’s left. The 5th wheel is located under-
neath the center of the base assembly.
