Stretcher Operation

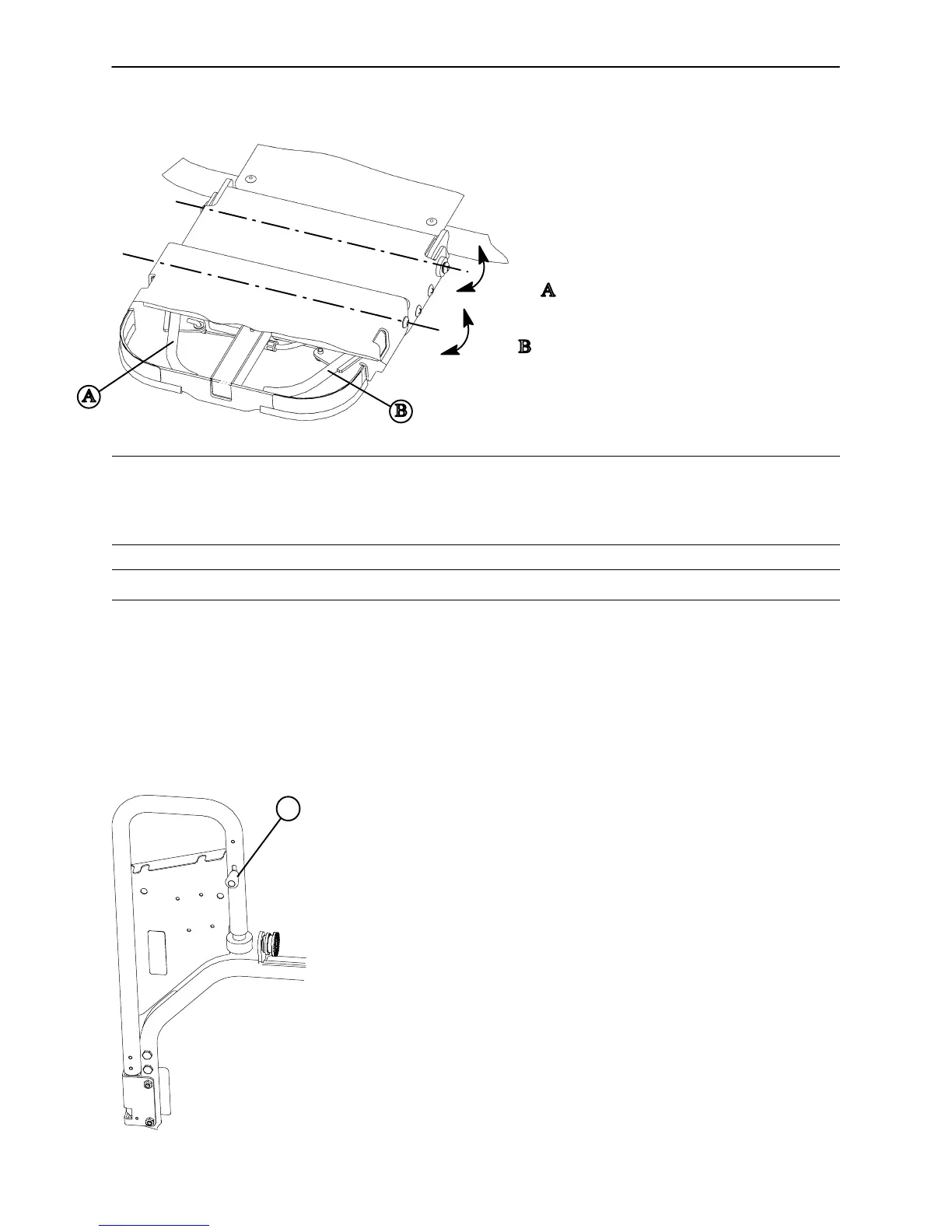

OPERATING OPTIONAL ENHANCED CLEARANCE HEAD PIECE

To operate the enhanced clearance head piece, grasp either

handle under the head section and squeeze. Handle

(A) releases the latch and rotates the head piece

on axis ”A”. Handle (B) releases the other latch

and rotates the head section on axis ”B”.

For ease of operation, it is recommended

only one latch be released at a time.

WARNING

The weight of the patient’s head is resting on the head piece and must be supported by the operator when

the latches are released and the head piece is being positioned. Failure to adequately support the head piece

while positioning the head could result in patient injury.

CAUTION

The dual articulating headpiece is designed to provide precision surgical positioning. Be sure to treat it with

care. The unit should be routinely checked to ensure optimal performance. In the event of any impact or

overload of the headpiece, be sure the unit is working properly and supports the intended load. Verify the

adjustment gears lock and release properly and, if necessary, refer to the adjustment procedure in the mainte-

nance manual.

USING OPTIONAL PRE–OP/POST–OP HEAD EXTENSIONS

The Pre–Op/Post–Op Head Extensions are designed to provide addi-

tional litter surface and to protect the patient’s head during transport.

The head extensions can be used as push handles when the stretcher

is being moved.

To add the extensions to the litter, slide the extension tube into the re-

ceptacle tube on the side of the Fowler frame. Pivot the extension up-

ward until it locks into place on the head piece frame. To release the

extension, pull the red knob (A) under the extension toward you, rotate

the extension downward and pull it straight out of the socket.

AXIS

Stryker 1069 Operation Manual
